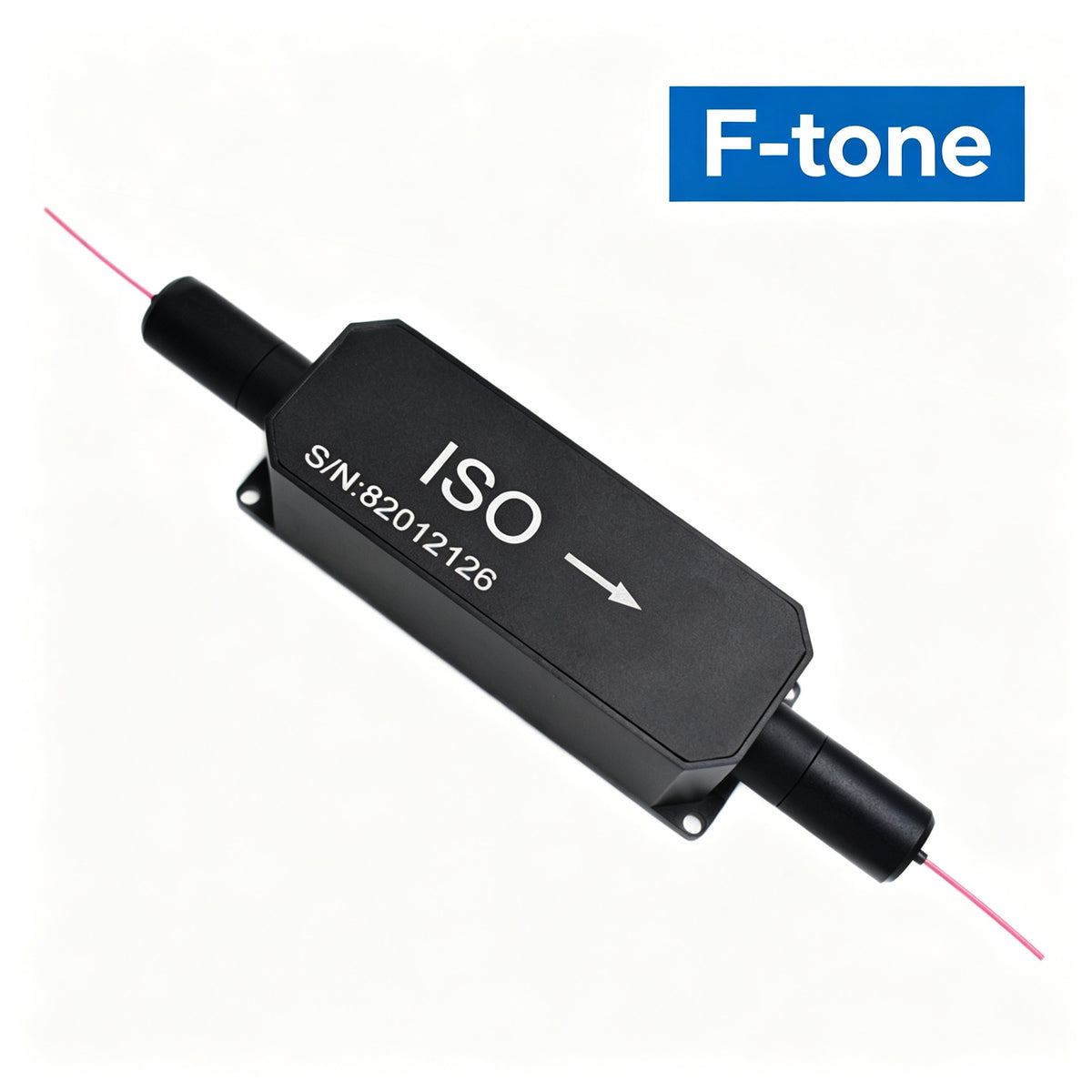

1052nm In-line Faraday Rotator (TGG Based)

1052nm In-line Faraday Rotator (TGG Based)

Afficher tous les détails

Faraday rotators change the polarization state of light traveling through it.

Features & Applications

Features Applications
Low Insertion Loss Fiber Optic Instruments
High Return Loss Fiber Sensors
High Reliability Fiber Lasers
High Stability Coherent Detecting

Specifications

Parameter Unit Value
Center Wavelength nm 1052
Operating Wavelength Width nm ±5
Max. Insertion Loss at 23 ℃ dB 1.0
Faraday Rotation Angle for CWL deg 45
Max. Rotation Angle Tolerance at 23 ℃ for CWL deg ±2
Min. Extinction Ratio at 23 ℃ (PM Fiber Type) dB 20
Max. Polarization Dependent Loss at 23 ℃ (SM Fiber Type) dB 0.15
Max. Polarization Mode Dispersion ps 0.05
Max. Power Handling (CW) W 0.5, 1, 5, 10, 20 or Specified
Max. Peak Power for ns Pulse kW 10 or Specified
Package Dimension mm 64x28x26
Max. Tensile Load N 5
Axis Alignment - Both axis working
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

Ordering Information

  HPMFR-①①①①-②②②-③④-⑤-⑥⑥-⑦⑦⑧⑧ (PM Fiber Type)
HPIFR-①①①①-②②②-③④-⑤-⑥⑥-⑦⑦⑧⑧ (SM Fiber Type)
①①①①
- Wavelength:
 1052=1052nm, SSSS=Specified
②②②
- Fiber Type:
 003=PM980, 004=HI1060, 018=PLMA-GDF-10/125-M, SSS=Specified
③
-

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
