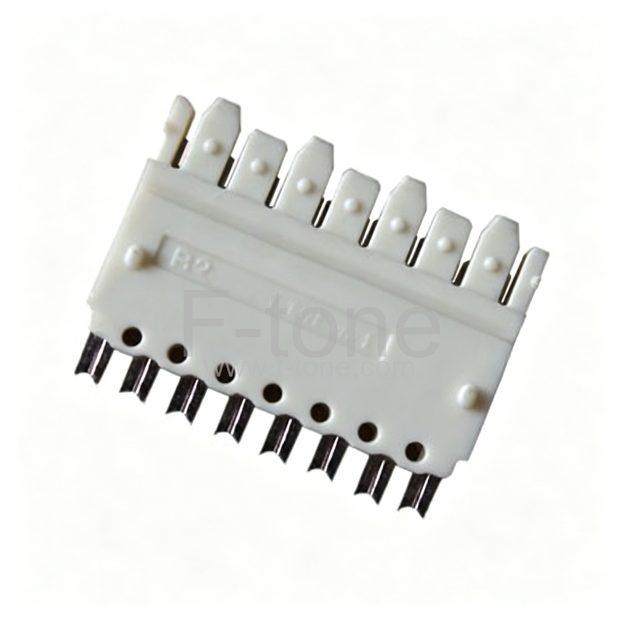

110 Connecting Blocks Cat.5e 3 Pair

110 Connecting Blocks Cat.5e 3 Pair

Afficher tous les détails

Part Number: 110C-3P-FT001

110 Connecting Blocks Cat.5e 3 Pair

110 Connecting Blocks from F-tone are terminated to the 110 Wiring Blocks using 110/5 pair terminting tool. Exceeds Category 5e channel performance when used in conjunction with Category 5e systems. Meets ANSI/EIA/TIA-568-A connecting hardware reliability requirements. 110 Connecting Blocks are available in 3 pairs,4 pairs and 5 pairs.

Features:

Accepts discrete wire or 110-type patch cord
Exceeds ANSI/TIA-568-C.2 Category 5e standard
Available in 3, 4, or 5-pair connection blocks
Dual IDC terminates UTP cable on 110 base and UTP cable or 110 patch cords for cross-connecting
Highly visible color-coded wiring slots ease wiring
Can be used with single or multiple punchdown tools
Can be utilized with discrete wires or Pan-Punch® Patch Cord Connector
Constructed of UL 94V-0 high impact polycarbonate material
Patented single piece robust construction

Material specification

polycarbonate UL 94V-0
Contact Material : Phosphor Bronze
Conductor Type: Solid or Stranded
Conductor: Solid or Stranded 26-22 AWG

Standards/Compliance

Meets ANSI/TIA/EIA-568-B.2 Category 6 Requirements
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets GENELEC Generic Cabling standard EN50173-1:2002 Electrical Specs according to UL 1863
RoHS Compliant


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
