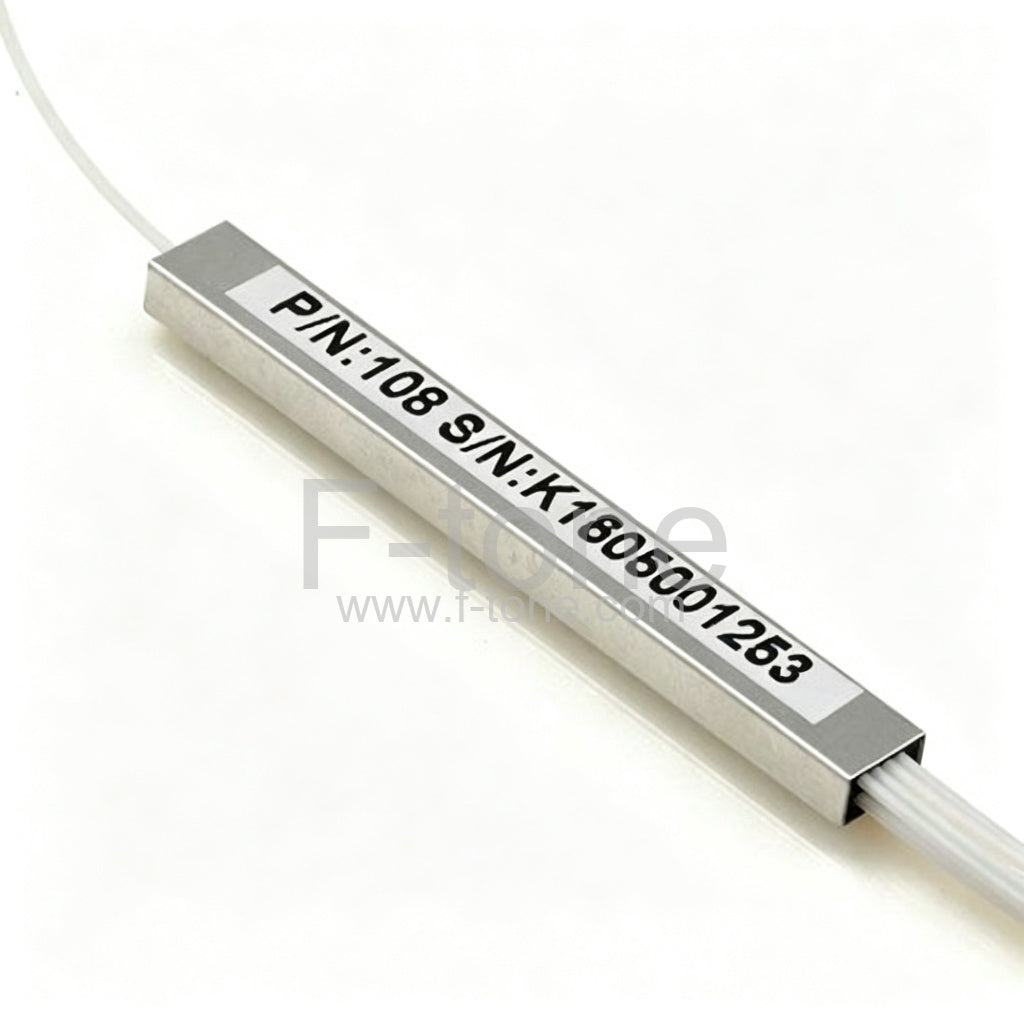

1x8 Fiber PLC Splitter Chip

1x8 Fiber PLC Splitter Chip

Afficher tous les détails

Part Number: 1x8-CHIP-FM

1x8 PLC Splitter Chip, 1x8 PLC Fiber Splitter Chip

Fiber chip capillary, is a high temperature melting and other special technology made of precision optics base
material, product consistency is good, excellent optical performance.

Feature

Precise Location;
High Stability and Reliability;
Meet Telcordia GR-1209 and GR-1221 Compliance
Core distance error of up to 5um

Applications

PLC Splitter
Optical module
DWDM
Collimator

Technical specification

Item Name Unit 1x2 1x3 1x4 1x6 1x8 1x12 1x16 1x32 1x64
Max Insertion Loss@1310nm-1550nm dB 3.5 5.6 6.6 8.8 9.8 11.8 12.9 16.1 19.4
Max Insertion Loss@1260 1650nm dB 3.6 5.8 6.8 9 10 12 13.1 16.3 19.6
Return loss (1260~1650nm) dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB >55dB
Uniformity (max) dB 0.4 0.5 0.6 0.6 0.6 0.7 0.8 1.2 1.5
Directivity (max) dB 60 60 60 60 60 60 60 60 60
PDL (max) dB 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.25
Pitch um 250 250 250 250 127 127 127 127 127
Chip Size (L±0.5xW±0.1xH±0.1) mm 8.7x1.55x2.1 9.0x1.55x2.1 9.8x1.55x2.1 12.8x1.8x2.1 10.9x1.5x2.1 15.8x1.9x2.1 14.6x2.4x2.1 18.35x4.35x2.1 25.5x9x2.1
Storage Condition -20~50℃，RH 0-80%
Operation Teperature -40~85℃
PCT Testing Pass After PCT test(1.2 atm, 110℃,96 hours),IL change <0.3dB
Temperature Cycling Testing Pass After Temperature cycling test (-40℃ to 85℃,2000 hours),IL change <0.3dB
High Temperature Storage Pass After High temperature storage test(85℃,2000 hours),IL change <0.3dB
Low Temperature Storage Pass After Low temperature storage test(-40℃,2000 hours),IL change <0.3dB
85℃temperature，85% humidity Pass After 85℃temperature, 85% humidity test(2000 hours),IL change <0.3dB
Ordering Information: The above table for the conventional PLC with V slot size, for processing special
specifications V slot, to be provided in advance to us size or drawings.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
