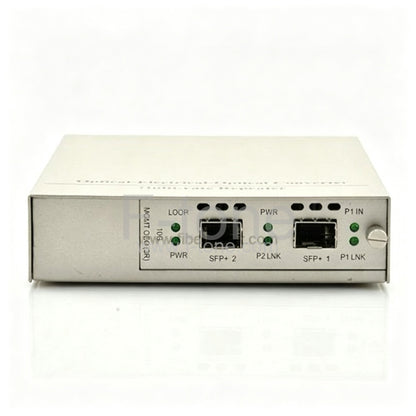

2 Ports SFP+ to SFP+ 10G OEO Converter Transponder w/full 3R Support Standalone

2 Ports SFP+ to SFP+ 10G OEO Converter Transponder w/full 3R Support Standalone

Afficher tous les détails

Part Number: 2P-10G-3R-SS-FTOEO

SFP+ to SFP+ 2 Ports 10G OEO Converter Transponder w/full 3R Support Standalone

10G WDM Transponder OEO Converter comes with two SFP+ ports, are standalone device that can support the "Three Rs" to Retime, Regenerate and Reshape the optical signal.

Transponders are fiber-to-fiber media converters that convert wavelengths for Wavelength Division Multiplexing (WDM) applications.

F-tone transponders are protocol and rate-transparent fiber media converters that support SFP, SFP+ and XFP transceivers with data rates up to 11.32 Gpbs, and our transponders provide seamless integration of different fiber types by converting multi-mode fiber to single-mode fiber, and dual fiber to single-fiber.

Fiber-to-Fiber media converters extend network distance by converting wavelengths (1310 to 1550), amplifying optical power. F-tone.Com transponders as re-generators are also an optical – electrical – optical (O-E-O) converter with electrical amplification of the signal by FEC to realize long distances fiber transmission.

Features

  • 10G Transparent Transponders for Ethernet, SDH , Fiber Channel, OTN, digital video, others.
  • 3R Repeater/Regenaration with FEC(Reed-Solomon Algorithms) for SDH, Ethernet and Fibre Channel.
  • Support DWDM/CWDM transceivers
  • Configurable operation mode.
  • Multiple chassis versions: 1RU and 2RU chassis with 2 slots and with 17 slots.
  • Compact chassis design.
  • Redundant and modular power supplies. AC and DC. In-service replaceable.
  • Modular filter and fan unit. In-service replaceable.
  • Powerful Network Management function Web, SNMP, Console, others

10G OEO Converter Standalone
F-tone standalone WDM tronsponer are consist of a 2ports OEO card and a single Chassis. The 2port OEO card could be 10G SFP+ to SFP+, 10G XFP to SFP+ or 10G XFP to XFP.

2U Unified Platefrom Chassis



F-tone can also provide 2U Unified Platefrom Chassis for 10G OEO Card. Each card (10G SFP+ to SFP+, 10G XFP to SFP+,10G XFP to XFP ) can coexist together in this 2U 17-slot Managed chassis.

Specifications

Performance Data Technical Indexes
Equipment function 3R Repeater
Transmission Speed 10Gb/s ( 9.95Gb/s-11.35Gb/s )
Protocols IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)
Access Type 10G LAN/10G WAN
Interface Type A Type: SFP+ To/From SFP+
B Type: SFP+ To/From XFP
C Type: XFP To/From XFP
Transmission Distance SFP+ module/XFP module: it depends on the transmission distance of the module
Maximum Packet Forwarding Rate 14,880,950/S
Network management information: • Card type information
• SFP+ fiber module detection
• SFP+ fiber module DMI function ( Temperature , Voltage , Optical power )
• Link status detector
• Enable/Disabled Loopback test function
• Enable/Disable PRBS Generator and checker function
• Rate select ( 10Gbase-Lan or Wan)
• Remote card´s status monitor ( only in pairs )
power requirement Rack-mountable : AC 85 ～ 220V OR DC -48V
Standalone: AC 220V OR DC -48V
Power consumption: ≤6W
Work Environment Operating Temp: 0~ 50 ℃
Storage Temp: -10~ 70 ℃
Humidity: 5%~90% ( non-condensing )
Dimension Card: 11.5mm (W ) × 78mm ( D )
Standalone : 156mm (W ) × 128mm ( D ) × 32mm ( H )





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
