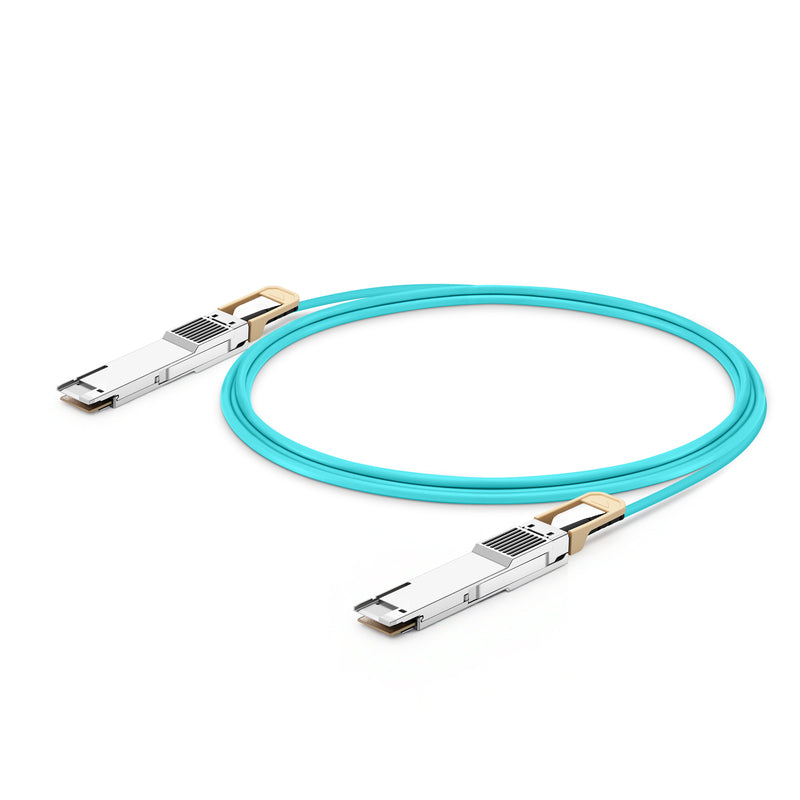

Mellanox C-DQ8FNM010-H0-M Compatible 400G QSFP-DD to QSFP-DD Active Optical Cable 10m (33ft)

Mellanox C-DQ8FNM010-H0-M Compatible 400G QSFP-DD to QSFP-DD Active Optical Cable 10m (33ft)

Afficher tous les détails

Part Number: 400G-QSFP-DD-AOC10M

Mellanox C-DQ8FNM010-H0-M Compatible 400G QSFP-DD AOC (QSFP-DD to QSFP-DD Active Optical Cable OM3 MMF 10-meter)

400G QSFP-DD AOC (Active Optical Cable) assemblies are designed to support 400G Ethernet. 400G QSFP-DD AOC components are compatible with IEEE 802.3cd 400GBASE-SR8 and IEEE 802.3cd 200GBASE-SR4. The module supports eight electrical interface lanes that operate in 50G PAM4 encoding mode, enabling 400G (8x50G) data rates. The 400GBASE-SR8 QSFP-DD AOC assembly is used to connect multiple 400G signals from the server side (NIC) to the data center aggregation switch.

Product Details

Mellanox Compatible C-DQ8FNM010-H0-M Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 425Gb/s
Wavelength 850nm Cable Length 10m (32.8ft)
Modulation Format DSP/PAM4 Host Required FEC
Number of Lanes 8 TX and 8 RX (50G) Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70～C (32 to 158～F) Maximum Power <10.0w each="">
Protocols QSFP-DD Rev 4.0 and IEEE 802.3bs,
SFF-8679, CMIS3.0		 Application Ethernet for 400GBASE-SR8


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
