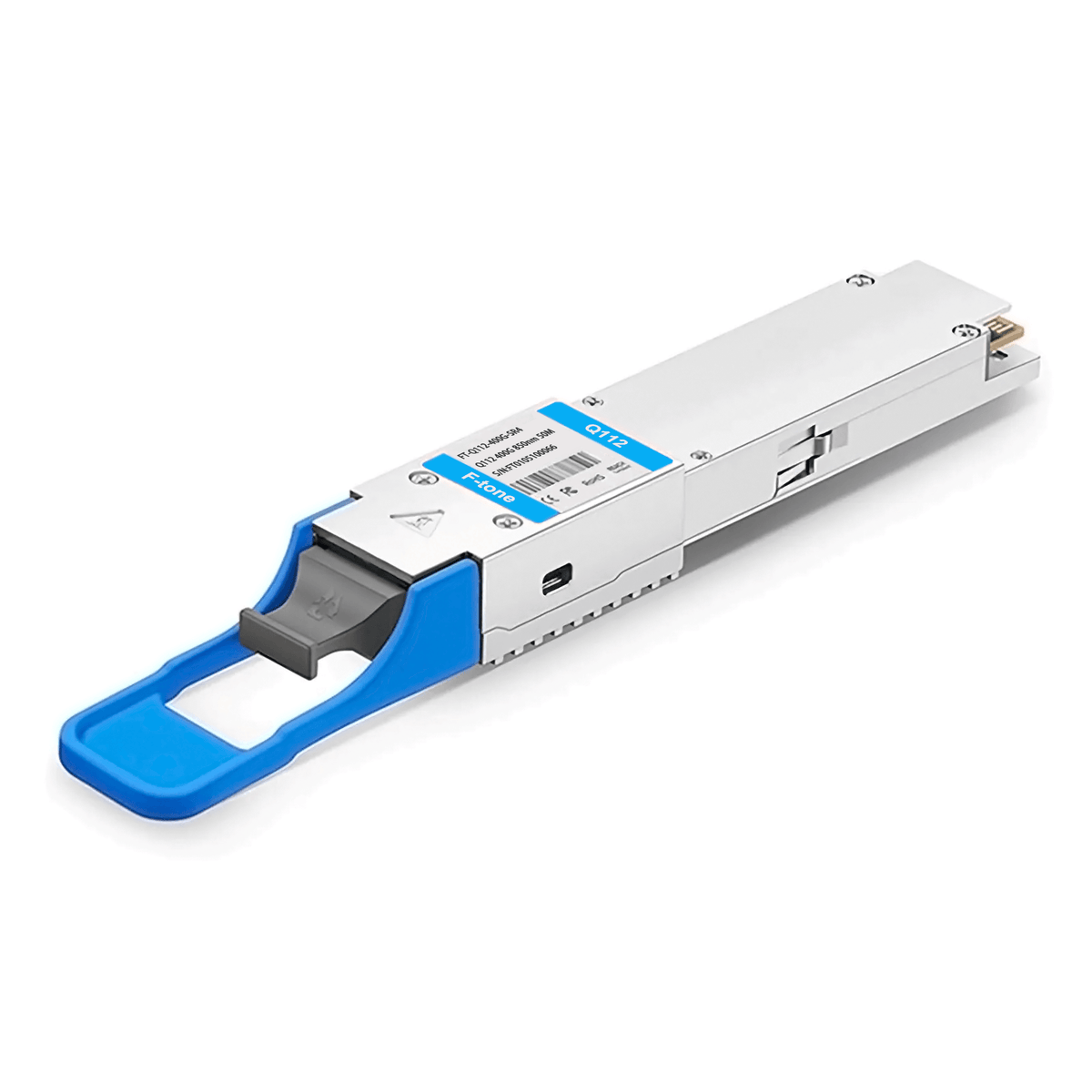

NVIDIA MMA1Z00-NS400 Compatible 400G QSFP112 SR4 PAM4 850nm 100m MTP/MPO-12 OM3 FEC Optical Transceiver

NVIDIA MMA1Z00-NS400 Compatible 400G QSFP112 SR4 PAM4 850nm 100m MTP/MPO-12 OM3 FEC Optical Transceiver

Afficher tous les détails

Part Number: 400G-QSFP112-SR4-NV

NVIDIA MMA1Z00-NS400 Compatible 400G QSFP112 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO12 OM3/OM4 100m with FEC DDM)

The F-tone QSFP112 400GBASE SR4 fiber transceiver module is designed for 400G Ethernet links over 100m of Multi-mode fiber. The module contains 4 parallel channels at a center wavelength of 850nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

Product Details

NVIDIA Compatible MMA1Z00-NS400 Vendor Name F-tone
Form Factor QSFP112 Max Data Rate 425Gbps
Wavelength 850nm Max Distance 60m on OM3/100m on OM4
Modulation Format PAM4 Host Required FEC
Connector MPO-12 (APC) Voltage Supply 3.3V
Cable Type MMF DDM Support ?Yes
Transmitter Type ?850nm VCSEL Receiver Type ?PIN
TX Power -4.6~+4.0dBm Receiver Sensitivity <>
Operation Temperature ?0 to 70～C (32 to 158～F) Maximum Power <>
Protocols QSFP112 MSA, IEEE 802.3bs Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Tout afficher

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Tout afficher

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
