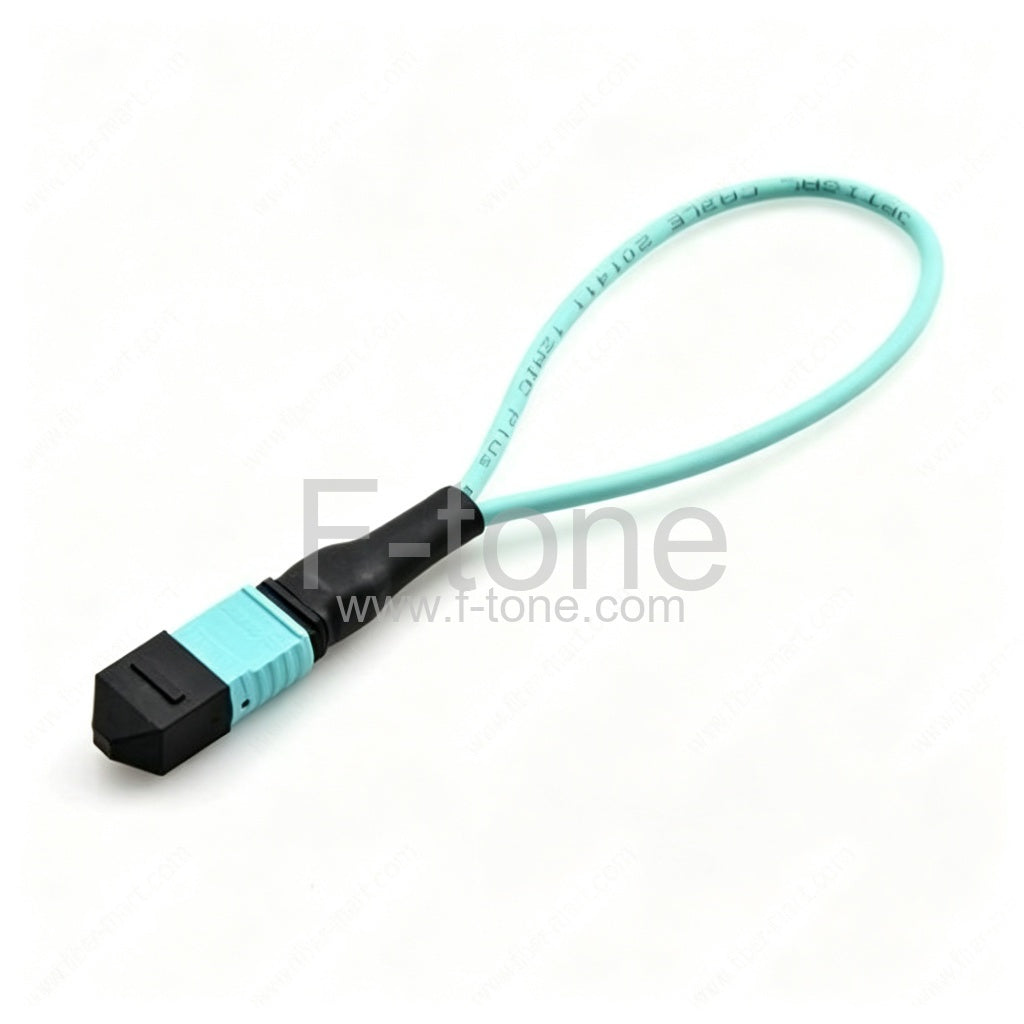

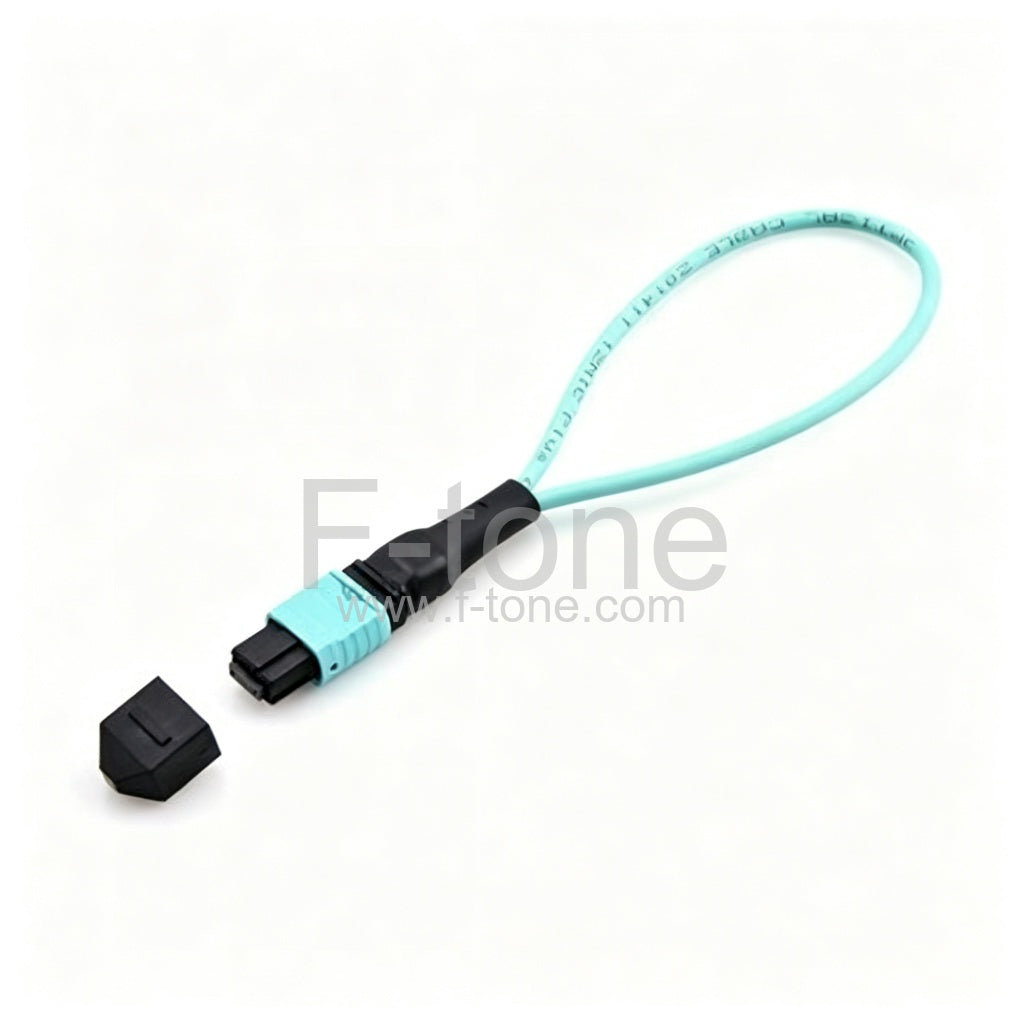

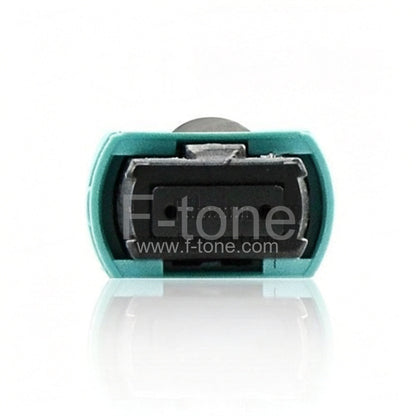

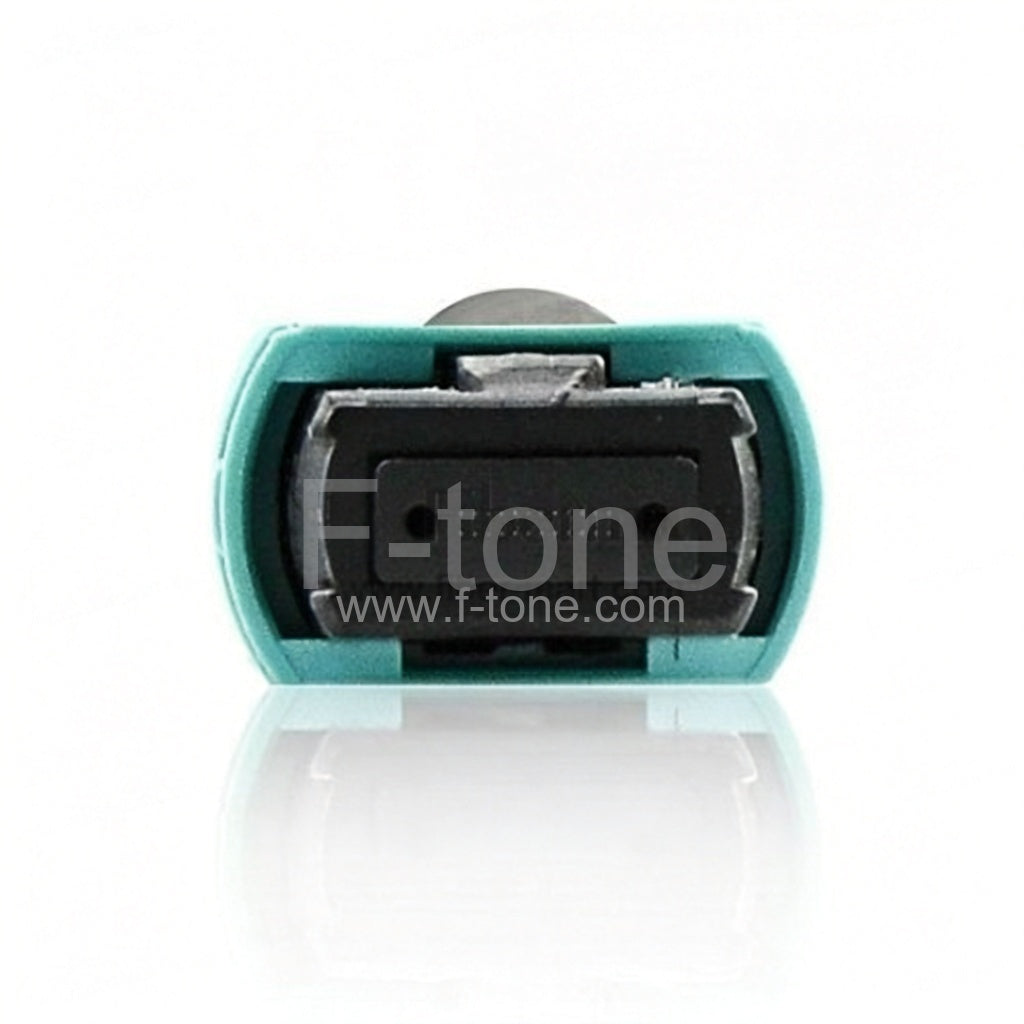

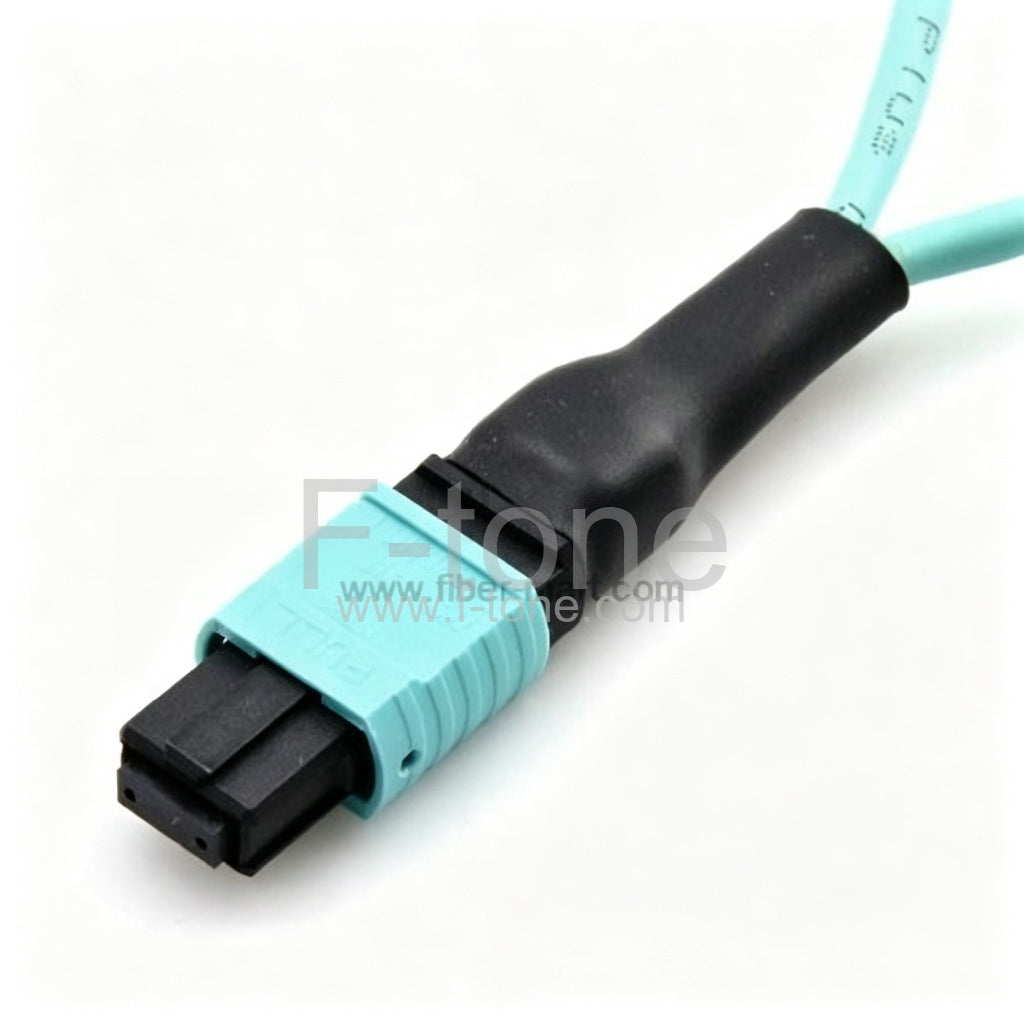

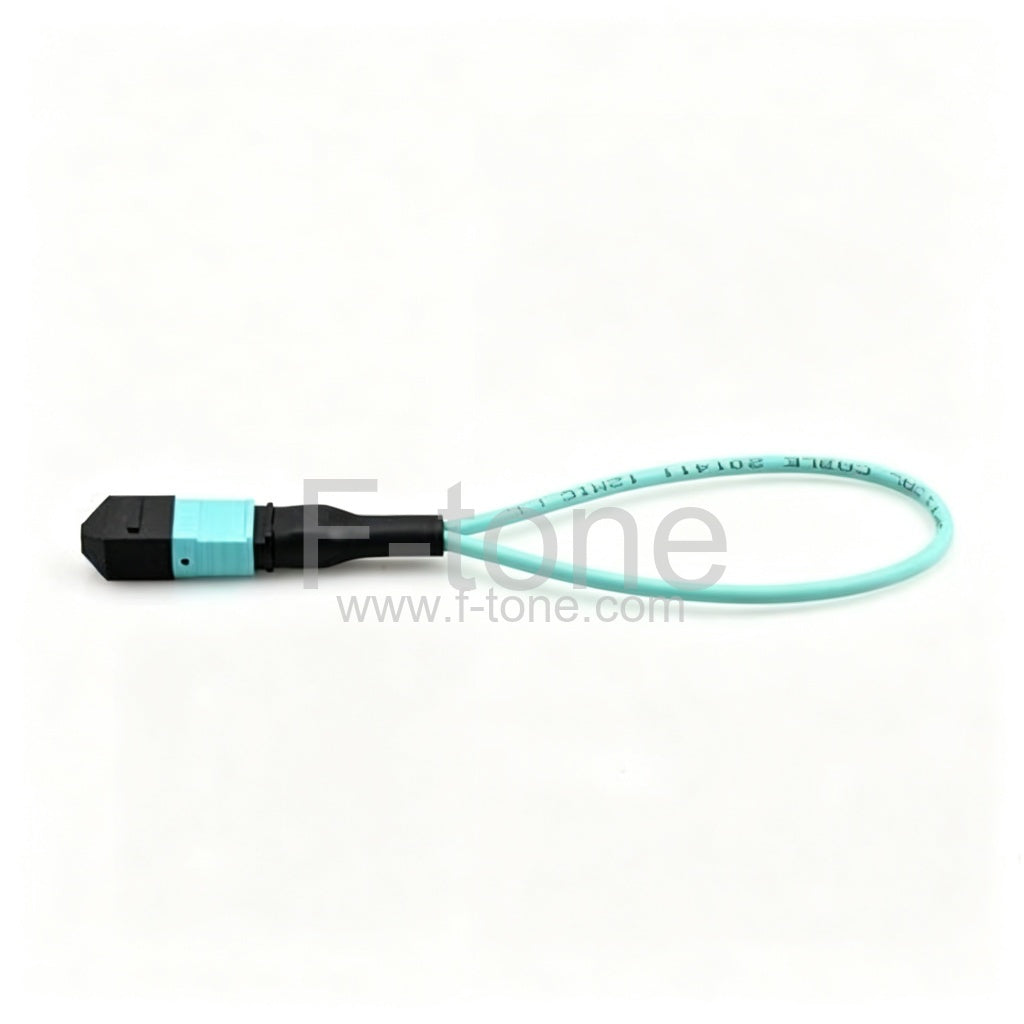

40GBASE QSFP MPO 12 Fiber OM3 Female Loopback Cable

40GBASE QSFP MPO 12 Fiber OM3 Female Loopback Cable

Afficher tous les détails

Part Number: 40GLP-MTP-12OM3-FM

40GBASE QSFP MTP/MPO 12 Fiber OM3 Female Loopback Cable

This 40GBASE QSFP MTP/MPO 12 Fiber OM3 Female Loopback Cable is a F-tone custom manufactured MTP/MPO Multimode OM3 50/125µm Loopback Cable designed for use with QSFP modules using a pin configuration of 1 to 12, 2 to 11, 3 to 10, 4 to 9, 5 to 8 and 6 to 7. F-tone MTP/MPO loopback cable features many advantages such as Multimode 50/125um OM3 Laser Optimized (LOMMF), aqua body MTP/MPO connector indicating the MM 50um MTP/MPO high quality connector; MTP/MPO provides the lowest available insertion loss for MTP/MPO connections.
Our standard MTP/MPO Loopback Cables have female MTP ELITE (Low Loss) connectors and will connect to the QSFP male MTP connector. This loopback cable is used primarily as a means to test optical links in 40GBASE-SR4 networks.

Specifications

  • Connector = MTP/MPO Female
  • US Connect MTP/MPO connectors with pull-release
  • Fully compliant to MTP/MPO specifications
  • Supports 40GbE and InfiniBand applications
  • ROHS Compliant
  • MTP/MPO Connector: MTP/MPO ELITE (Low Loss) 12 Fibre Connector
  • Fiber Type Options: OM3

Applications

  • Device burn-in
  • Network diagnosting and testing
  • Data center
  • Storage Area Network
  • Local Area Network

Structure Illustration

Customized Service

Custom manufactured and customer specified configurations for MTP/MPO Loopback cables are available. Call or e-mail us about custom MTP/MPO loopbacks cables- we can make any custom configuration for your custom MTP/MPO loopback cable needs.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
