532 nm Polarization Maintaining Isolator

532 nm Polarization Maintaining Isolator

Afficher tous les détails

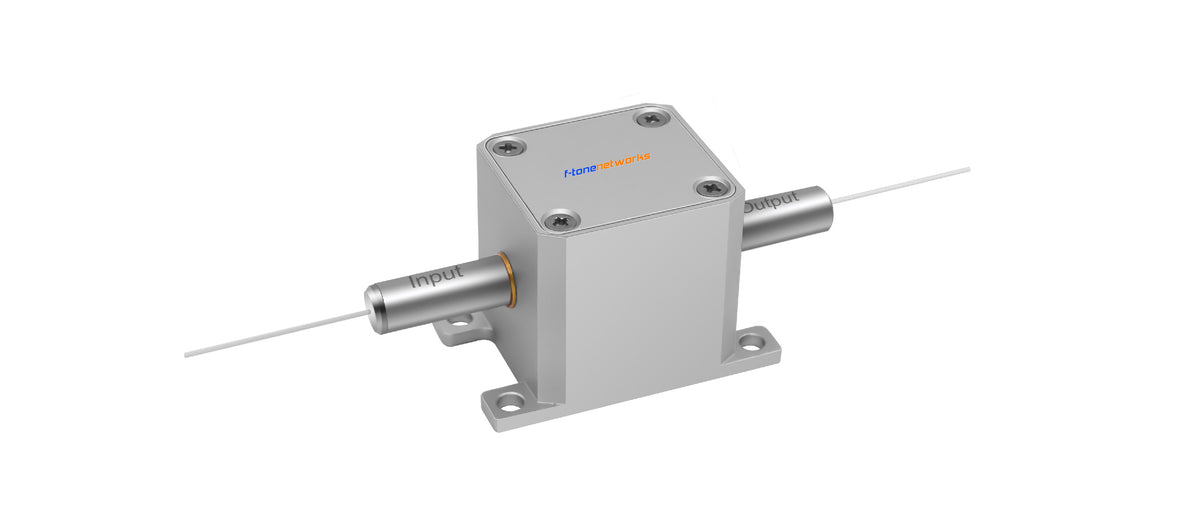

532 nm Polarization Maintaining Isolator

The 532 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrument applications.


Product Detail

Specifications
Parameter Unit Value
Operating Wavelength (λc) nm 532
Operating Wavelength Range nm λc ± 5
Typ. Insertion Loss @ λc, 23 ℃ dB 1.3
Max. Insertion Loss @ λc, 23 ℃ dB 1.8
Min. Isolation @ λc, 23 ℃ dB 25
Min. Extinction Ratio dB 18
Min. Return Loss dB 45
Max. Average Optical Power mW 100
Max. Tensile Load N 5
Fiber Type — Nufern PM S460 HP Fiber
Operating Temperature ℃ 10 to 45
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!

Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
