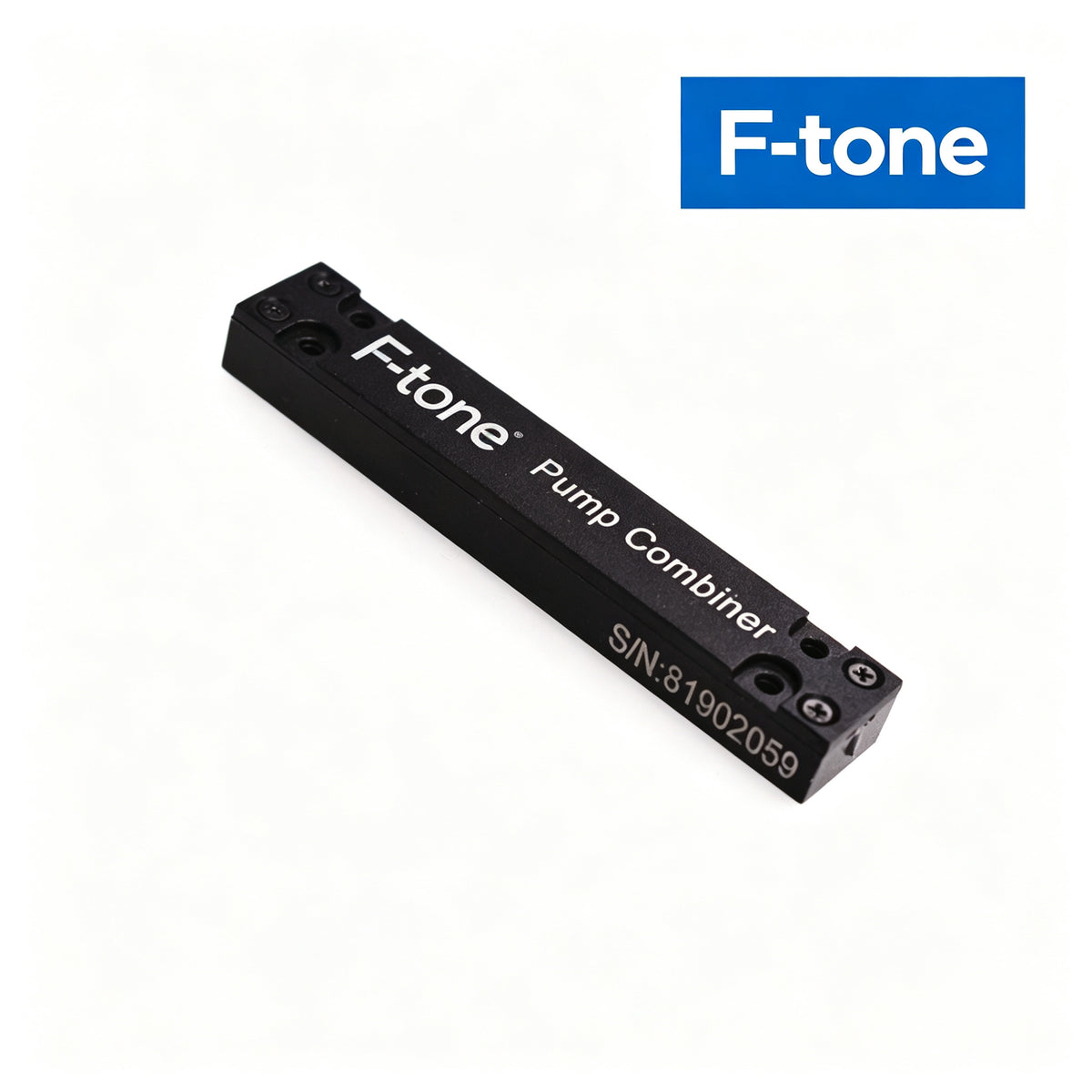

(6+1)x1 PM Pump & Signal Combiner

(6+1)x1 PM Pump & Signal Combiner

Afficher tous les détails

(N+1)×1 Multimode Pump and Signal Combiners can be used for high power fiber lasers and fiber amplifiers. These devices can be used to combine several pump lasers and couple that power with a seed signal. Manufactured using our proprietary methods, the product series includes (6+1)×1, (18+1)×1, (36+1)×1 and other reasonable configurations are available.

Features & Applications

Features Applications
High Transfer Efficiency High Power Fiber Laser
Stable and Reliable Fiber Amplifier
Custom Configurations Available

Specifications

Parameter Unit Value
Port Configuration - (6 +1)x1
Pump Wavelength nm 800-1000nm
Signal Wavelength nm 1030-1080 or 1450-1600nm
Signal Input Fiber - X/125 / X/250
Pump Fiber - 105/125 / 105/125 or 200/220
Signal Output Fiber - Y/125 / Y/250
Extinction Ratio at 23℃ dB ≥18 / ≥16
Pump Efficiency at 23℃ % >90 / >95
Signal Insertion Loss at 23℃ dB ≤0.7
Max. Handling Power / per Pump W ≤50 / ≤100
Return Loss at 23℃ dB >45
Package Dimension mm D6, D7 or Customized
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

Ordering Information

  MPC-①①①-②②②-③-④④④-⑤⑤-⑥-⑦-⑧⑧⑧-⑨⑨⑨
①①①
- Port Configuration:
 061=(6+1)x1
②②②
- Fiber Type for Input:
 003=PM980, 018=PM 10/125DCF, SSS=Specified
③
- Fiber Type for Pump:
 1=MM-S105/125-22A, 2=MM-S200/220-22A, S=Specified
④④④
- Fiber Type for Output:
 018=PM 10/125DCF, 024=PLMA-GDF-25/250-M, SSS=Specified
⑤⑤
-

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
