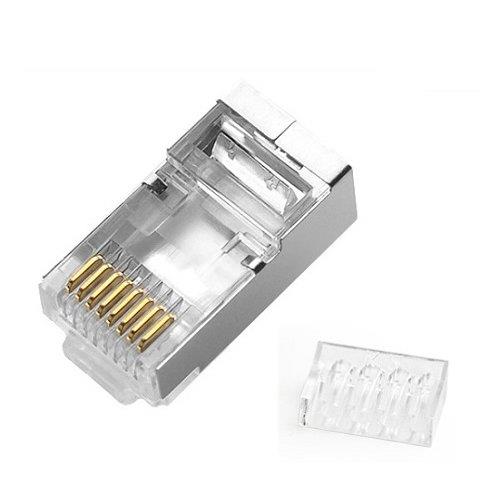

Cat6 RJ45 Shielded Modular Plug (50/Pack)

Cat6 RJ45 Shielded Modular Plug (50/Pack)

Afficher tous les détails

Part Number: 68845-S

Cat6 RJ45 Shielded Modular Plug for Round Solid or Stranded Cable

F-tone's RJ45 modular plug use on solid or stranded conductor cat6 cable. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission.

Product Specifications

Product Type Cat6 RJ45 modular plug Compatibility Round solid or stranded cable
Position/Conductor 8x8 Conductor Gauges Supported 23-24 AWG cable
Color Silvery Wiring Scheme T568A/T568B
Load Bar Yes Application Shielded
Material Polycarbonate Environment -10C to 60C (-14F to 140F)

Product Highlights

High Standards Cat6 Shielded RJ45 (8P8C) Modular Plug Designed for Cabling System

  • Support high band width up to 1000 Mbps under 250MHz transfer rate.

  • Compatible with cat6 shielded solid or stranded network cable.

  • High performence and meet with T568A and T568B wiring schemes.

High Performence Cat6 RJ45 Shielded Modular Plug Details

Trigeminal chip & 50 Micron Gold Contacts

Trigeminal gold plated phosphor bronze contacts provides a fully contact with wire conductor and ensure excellent conductivity.

Copper Alloy Shielded Shell

Protects your network from signal loss and electromagnetic interference, provides conductive path for grounding.

Load Bar

Load Bar simplify termination, guide ramp facilitates easy conductor insertion and termination.

Robust Shrapnel

Polycarbonate materials improve the toughness of the modular plug, ensure the modular plug shrapnel without brocken.

Customize Your Lengths of Cat6 Shielded Network Cables

  • Cat6 Shielded Network Cable
  • RJ45 Black Snagless Boot Cover
  • Cat6 RJ45 Shielded Modular Plug


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
