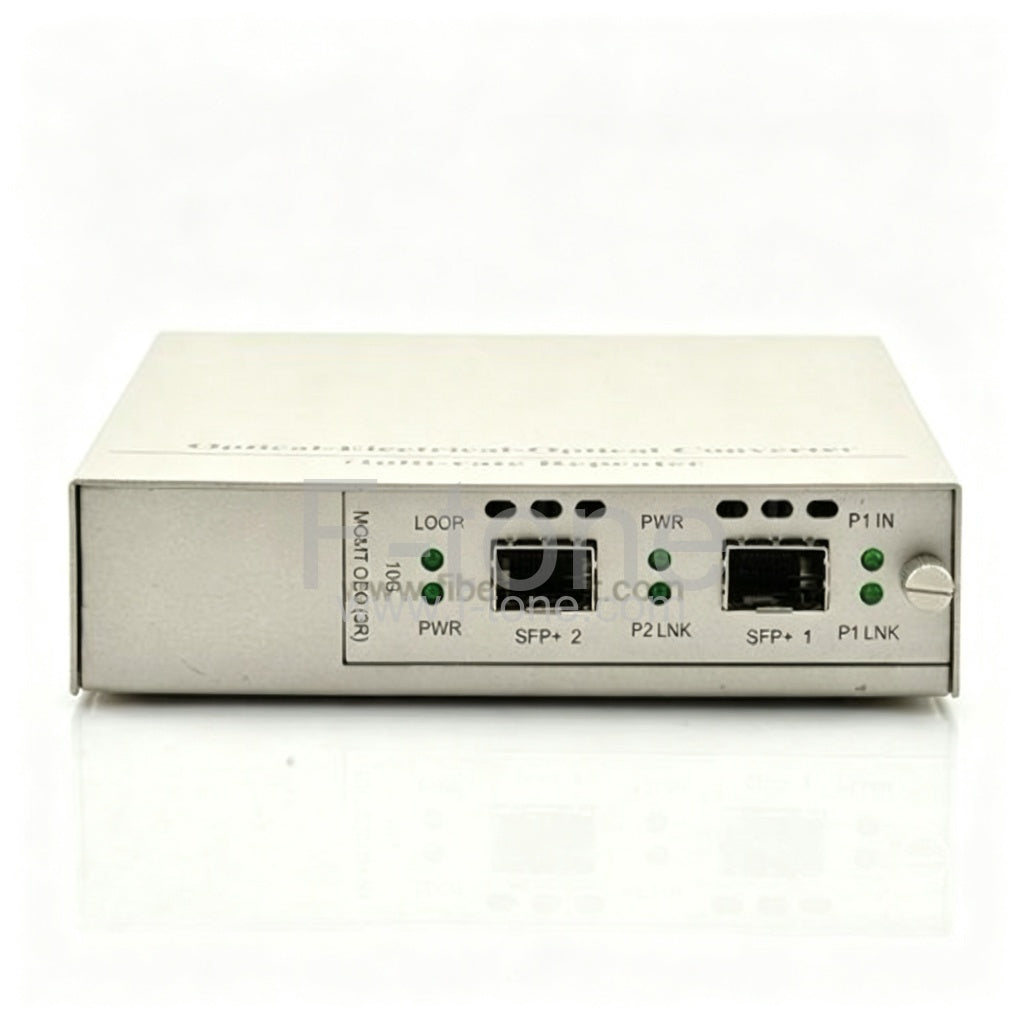

8 Ports SFP+ to SFP+ 10G OEO Converter Transponder w/full 3R Support

8 Ports SFP+ to SFP+ 10G OEO Converter Transponder w/full 3R Support

Afficher tous les détails

Part Number: 8P-10G-3R-SS-FTOEO-1U

SFP+ to SFP+ 8 Ports 10G OEO Converter Transponder w/full 3R Support

10G WDM Transponder OEO Converter comes with two SFP+ ports, are lindcard that can support the "Three Rs" to Retime, Regenerate and Reshape the optical signal.

Transponders are fiber-to-fiber media converters that convert wavelengths for Wavelength Division Multiplexing (WDM) applications.

F-tone transponders are protocol and rate-transparent fiber media converters that support SFP, SFP+ and XFP transceivers with data rates up to 11.32 Gpbs, and our transponders provide seamless integration of different fiber types by converting multi-mode fiber to single-mode fiber, and dual fiber to single-fiber.

Fiber-to-Fiber media converters extend network distance by converting wavelengths (1310 to 1550), amplifying optical power. F-tone.Com transponders as re-generators are also an optical – electrical – optical (O-E-O) converter with electrical amplification of the signal by FEC to realize long distances fiber transmission.

Attention: This is a SFP+ to/from SFP+ OEO card for 1U Rack Chassis . It could be inserted into our 1U Multi-services unified platform Managed Chassis

Features

  • 10G Transparent Transponders for Ethernet, SDH , Fiber Channel, OTN, digital video, others.
  • 3R Repeater/Regenaration with FEC(Reed-Solomon Algorithms) for SDH, Ethernet and Fibre Channel.
  • Support DWDM/CWDM transceivers
  • Configurable operation mode.
  • Multiple chassis versions: 1RU chassis with 2 slots and 2RU chassis with 17 slots.
  • Compact chassis design.
  • Redundant and modular power supplies. AC and DC. In-service replaceable.
  • Modular filter and fan unit. In-service replaceable.
  • Powerful Network Management function Web, SNMP, Console, others

10G OEO Card for 2U Unified Platefrom Chassis
The 1U Unified Platefrom Chassis supports the2-port 10G SFP+ to SFP+, 2-port 10G XFP to SFP+, 2-port 10G XFP to XFP, each card can coexist together in this 2U 17-slot Managed chassis.

10G OEO Card for 1U Unified Platefrom Chassis



F-tone can also provide 10G OEO Card for 1U Unified Platefrom Chassis. This kind of OEO cards has more ports comparing with the 2-port OEO cards which are supported by 2U Unified Platefrom Chassis. The 1U Unified Platefrom Chassis supports 4-port 10G XFP OEO card card and 8-port 10G SFP+ OEO card. Each card can coexist together in this 1U 2-slot Unified Platefrom Chassis.

Specifications

Performance Data Technical Indexes
Equipment function 3R Repeater
Transmission Speed 10Gb/s ( 9.95Gb/s-11.35Gb/s )
Protocols IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)
Access Type 10G LAN/10G WAN
Interface Type A Type: SFP+ To/From SFP+
B Type: XFP To/From XFP
Transmission Distance SFP+ module/XFP module: it depends on the transmission distance of the module
Maximum Packet Forwarding Rate 14,880,950/S
Network management information: • Card type information
• SFP+/XFP fiber module detection
• SFP+/XFP fiber module DMI function ( Temperature , Voltage , Optical power )
• Link status detector
• Enable/Disabled Loopback test function
• Enable/Disable PRBS Generator and checker function
• Rate select ( 10Gbase-Lan or Wan)
• Remote card´s status monitor ( only in pairs )

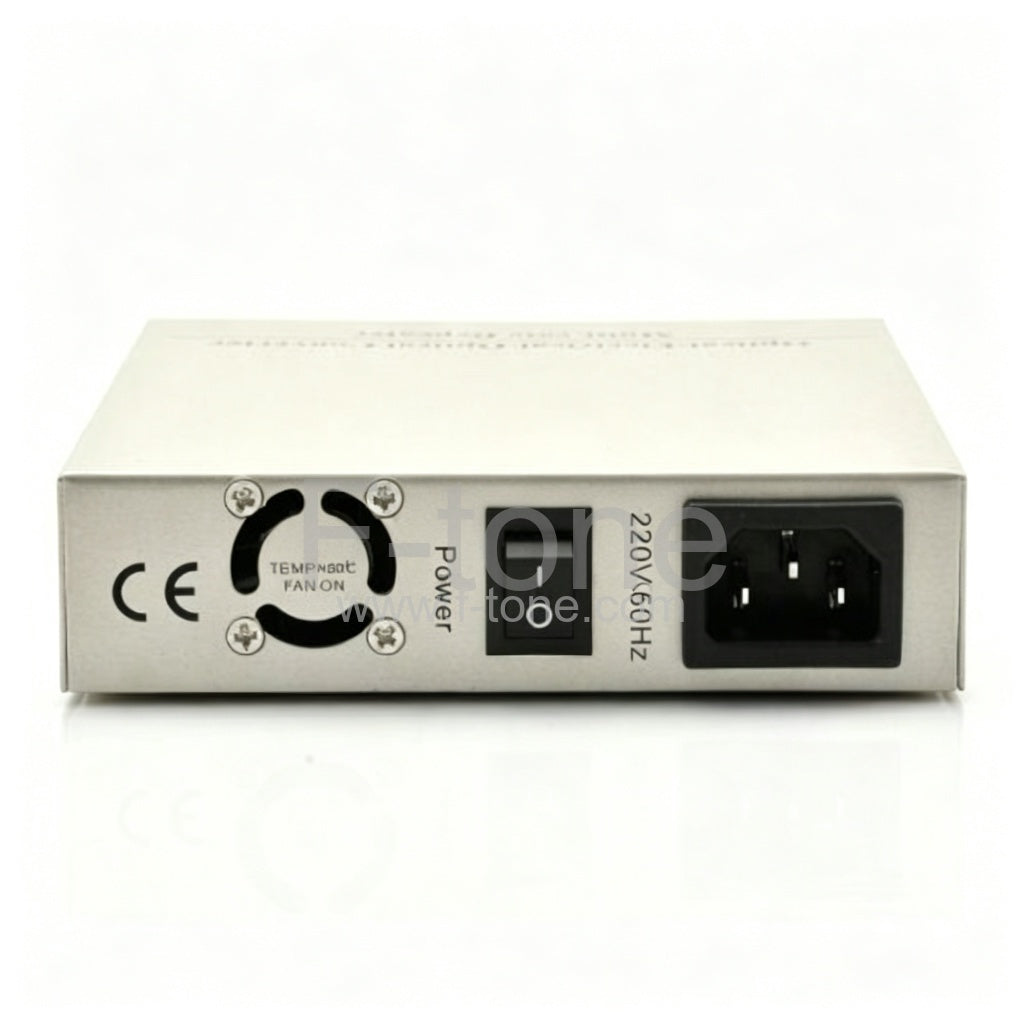

power requirement Rack-mountable : AC 85 ～ 220V OR DC -48V
Standalone: AC 220V OR DC -48V
Power consumption: ≤6W
Work Environment Operating Temp: 0~ 50 ℃
Storage Temp: -10~ 70 ℃
Humidity: 5%~90% ( non-condensing )





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
