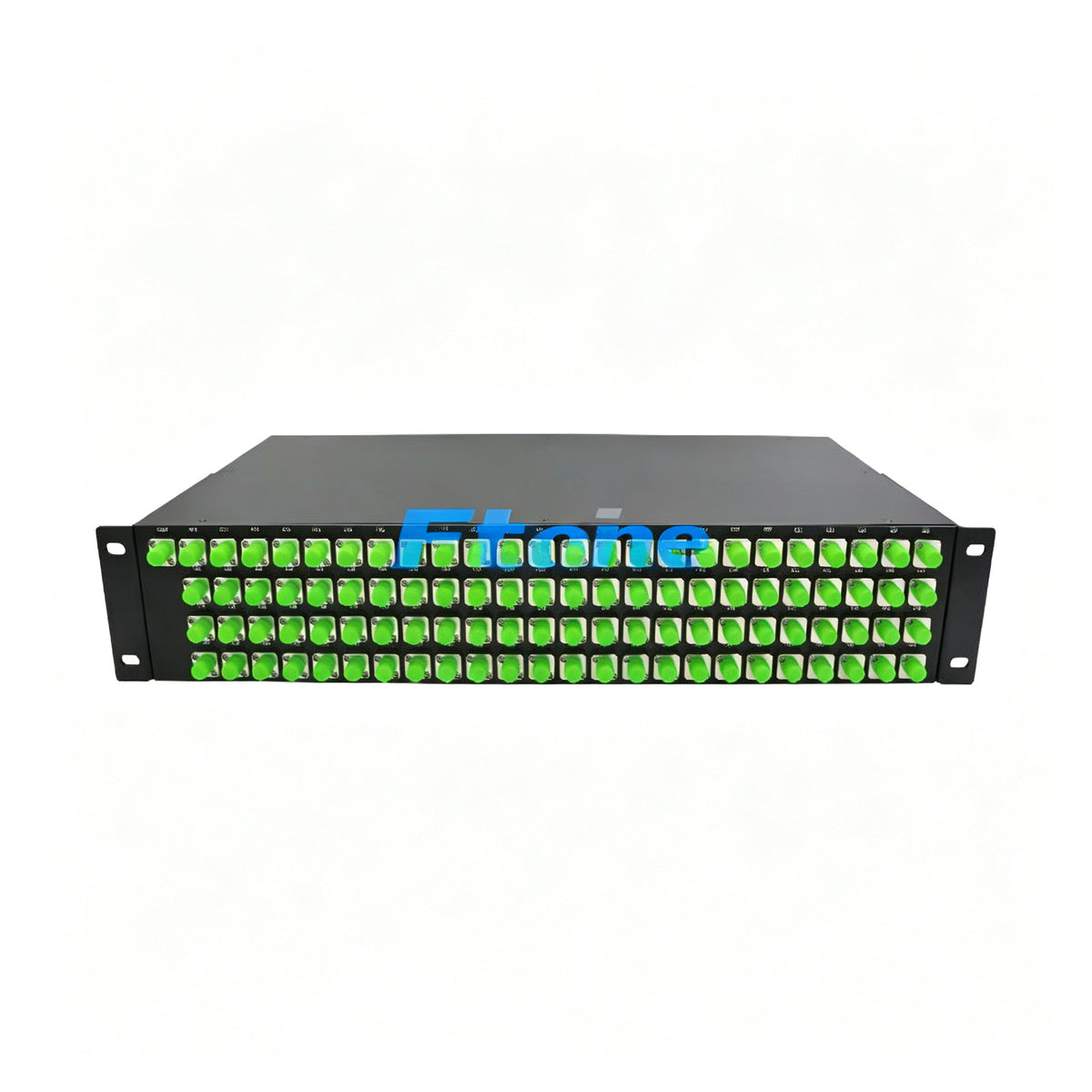

96 channels, 2RU Rack Mount, Duplex, Thermal AWG, DWDM Mux & Demux

Part Number: 96MDD-2RU-T5-FTDWDM

96 channels DWDM Mux & Demux, 2RU Rack Mount, Duplex, Thermal AWG

Duplex DWDM MUX & DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.

DWDM Mux/Demux modules are part of a series of high performance products based on silica-on-silicon planar technology. The AWG chips F-tone.Com used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.

Front Panel Details

Note: Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.

Item Details

• 96 channels DWDM mux and demux in one 2U Rack
• The channel spacing for DWDM is 0.4 nm (50 GHz grid)
• Com port is duplex
• 2U 19inch Rack Mount Housing
• Protocol transparent (10 Mbps to 100 Gbps)
• Distance: Up to 80 km depending on power budget of user equipment
• Low insertion loss
• Excellent channel isolation
• Epoxy-free optical path
• Compliant to ITU-T G.657A1 standard.
• ISO 9001 manufacturing facility

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
