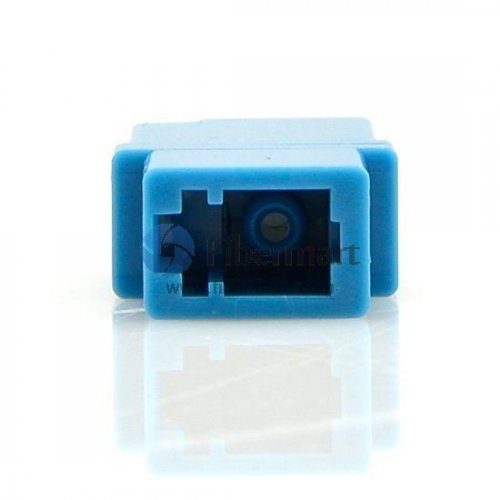

CS™/UPC to CS™/UPC OS2 Singlemode Single Channel 2Fibers Plastic Fiber Optic Adapter without Flange

CS™/UPC to CS™/UPC OS2 Singlemode Single Channel 2Fibers Plastic Fiber Optic Adapter without Flange

Afficher tous les détails

Part Number: AD-CSU-CSU-SM-DX-FM

OS2 Singlemode Single Channel 2Fibers CS™/UPC to CS™/UPC Plastic Fiber Optic Adapter without Flange

A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

The CS™ adapter can link two CS™ connectors precisely, allowing the light sources to be transmitted at most and lower the loss as much as possible. And this adapter has a smaller size and higher density when compared to an LC duplex adapter. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.

Features

● Senko CS™ Reduces Connector Size by 40% Compared to LC Duplex

● Apply to 200/400G QSFP-DD, OSFP and COBO

● 2x Fiber Cabling Density over LC Adapters

● ≤0.2dB(Typical) Low Insertion Loss

● Color Coded for Rapid Identification of Single-mode Fiber Patterns

● Dust Plugs Keep Adapter’s Interior Clean from Dust

● Stainless Steel Clips for Tool-less Snap-in Installation

Specifications

Connector Type Senko CS™-CS™ Body Style Single Channel (2F)
Polish Type UPC Fiber Mode OS2 9/125μm
Insertion Loss ≤0.2dB Durability 500 times
Mounting Type Reduced Flanged Alignment Sleeve Material Zirconia Ceramic
Color Blue Flammability Rate UL 94V-0
Package Quantity 1 Pc RoHS Compliancy Status Compliant
Operating Temperature -40 to 85℃(-40 to 185℉) Storage Temperature -10 to 60℃(14 to 140℉)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
