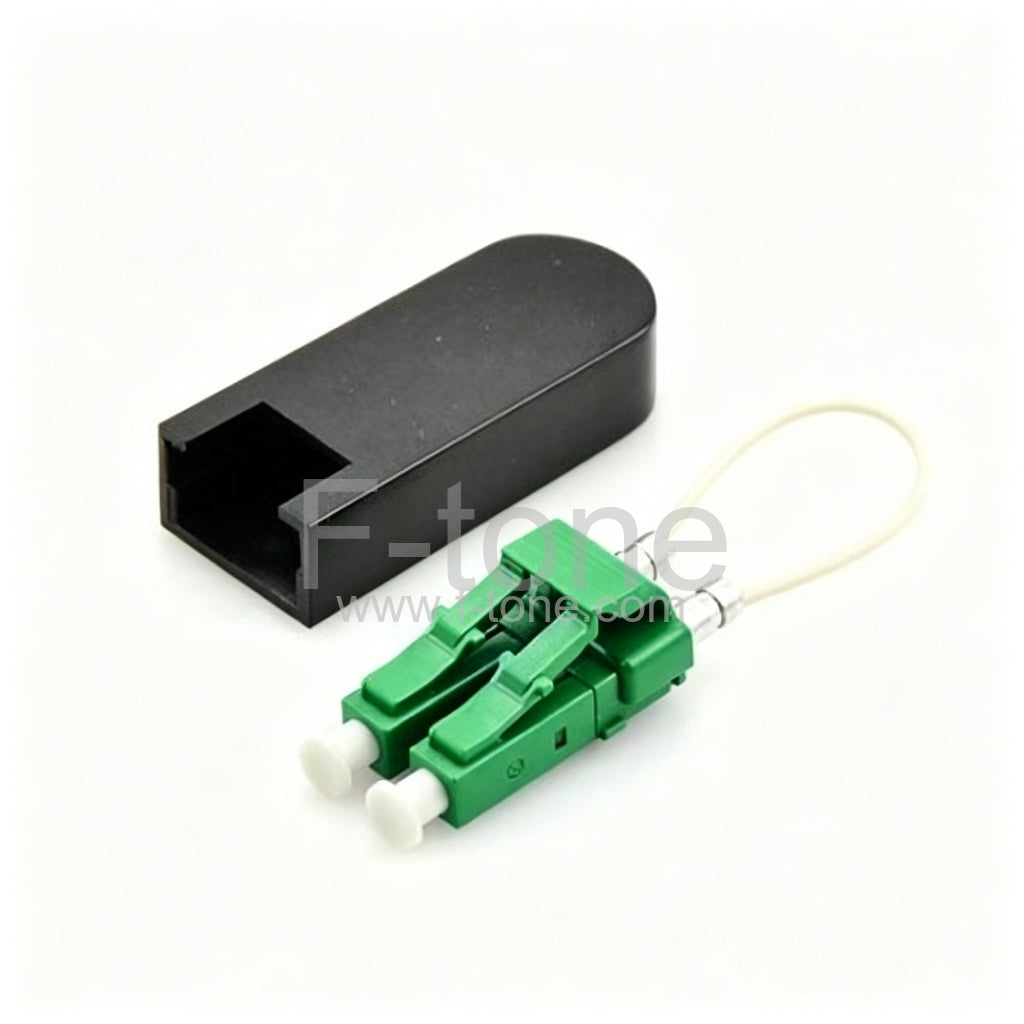

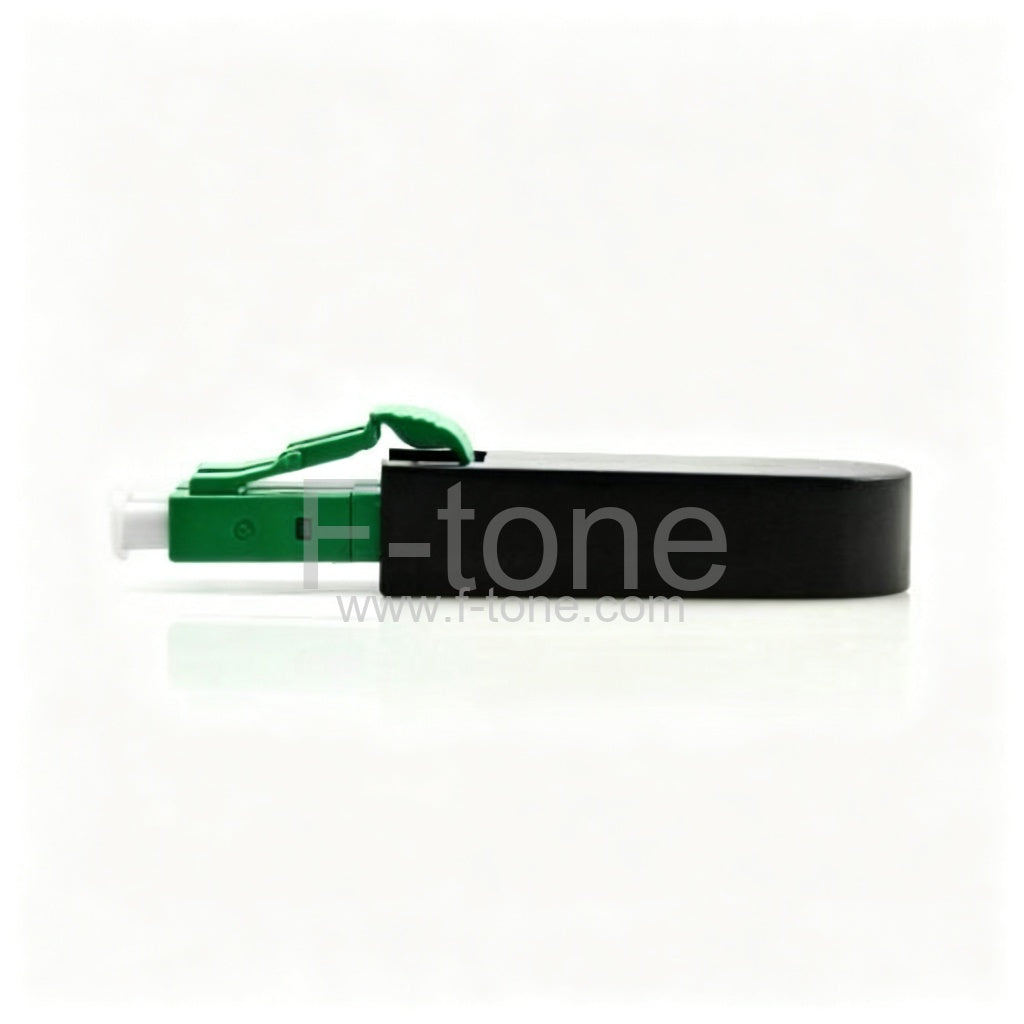

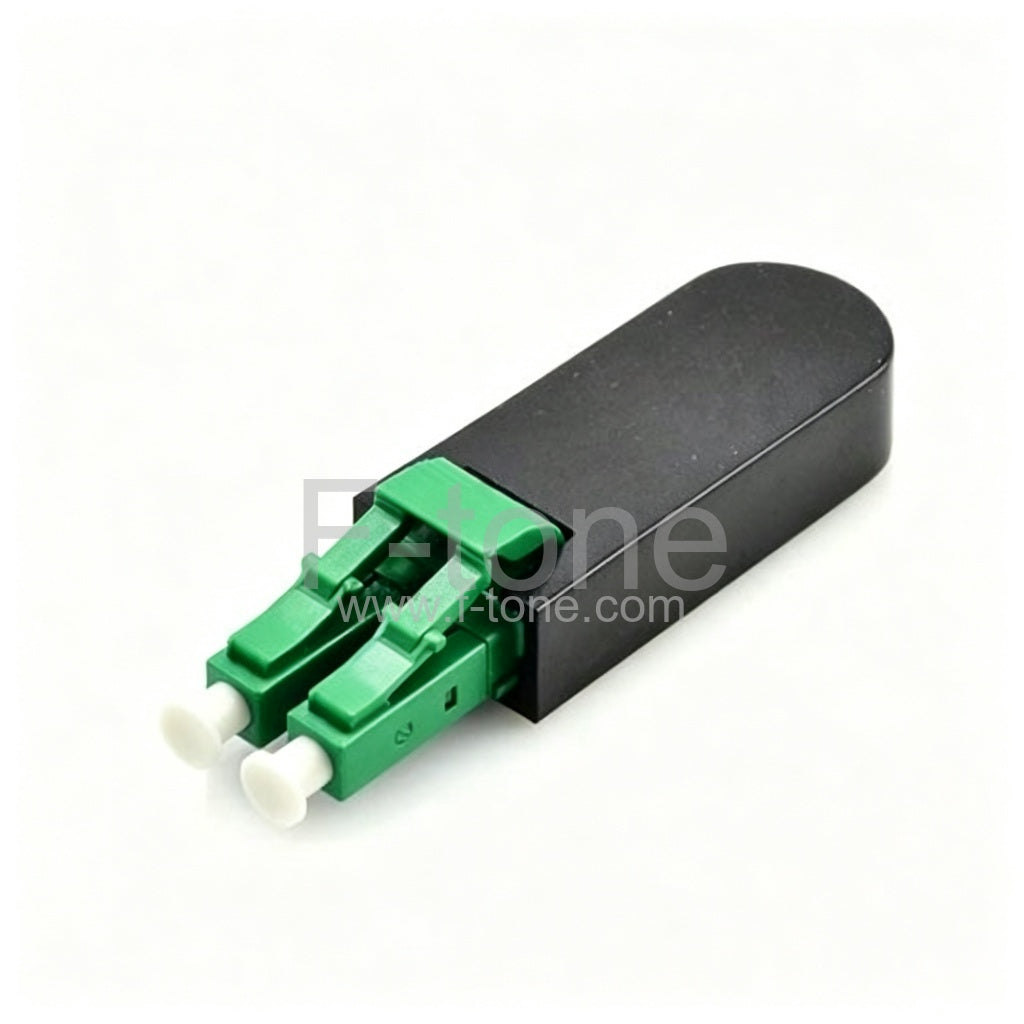

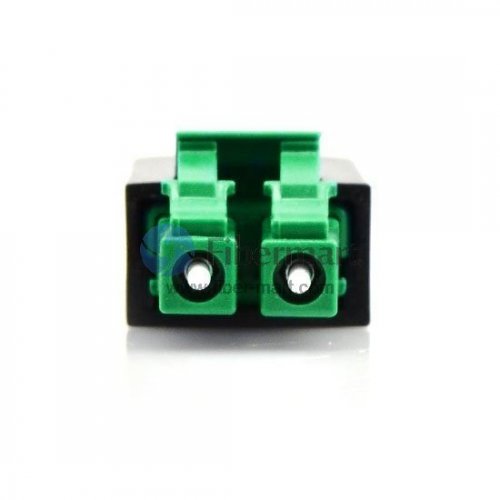

LC Fiber Loopback Attenuator Singlemode 9/125 Male-Male

LC Fiber Loopback Attenuator Singlemode 9/125 Male-Male

Afficher tous les détails

Part Number: ATT-LB-xx-FM

LC/UPC Fiber Loopback Attenuator Singlemode 9/125 Male-Male, 1~25 dB Optional

F-tone Loopback attenuator available in 1 – 25 dB. Designed for fiber optic testing applications and network restorations, the loopback provides a return patch for a fiber optic signal.

Specifications:

Features Applications
● High dense spaces ● Test equipment
● Low insertion loss,high return loss ● Optical transmission system.
● Good in repeatability and exchangeability ● Telecommunication
● High credibility and stability ● CATV,FTTH,LAN

Performance Specifications

Parameter SM MM
Operating Wavelength 1310nm，1550nm 850nm，1300nm
Insertion Loss ≤0.30dB ≤0.30dB
Attenuation Tolerance ±0.5dB (1-10dB)

±1.0dB (11-20dB)		 ±1.0dB (1-20dB)
Return Loss UPC≥50.0dB,APC≥60.0dB ≥35.0dB
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Plug times ≥1000
Operating temperature -20℃ to +70℃
Storage temperature -40℃ to +85℃

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
