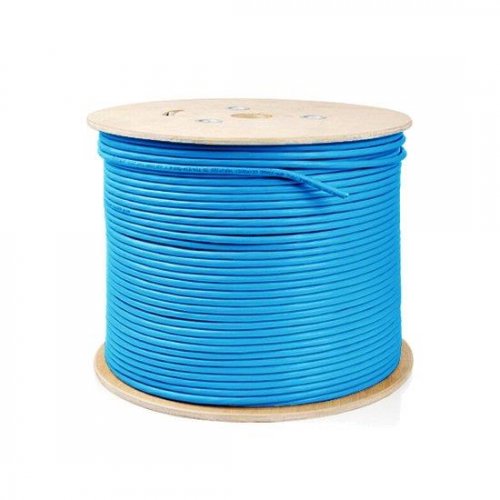

100m (328ft) Spool Cat6 Shielded and Foiled(SFTP) Solid PVC Bulk Ethernet CableBlue

100m (328ft) Spool Cat6 Shielded and Foiled(SFTP) Solid PVC Bulk Ethernet CableBlue

Afficher tous les détails

Part Number: C6-STPPVCBL-100M

Cat6 Bulk Ethernet Network Cable SFTP, Solid, PVC, 23AWG, 250MHz


The next step up from standard Cat5e cable, Cat6 is a "twisted pair" network cable used for 1000BASE-T Ethernet applications at speed of up to 250MHz of bandwidth.


This cable is preferred for more advanced networking installations where a higher bandwidth than normal is required.

Product Details

Cable Type Cat6 Shielding Type SFTP
Wire Gauge 23AWG Cable Color Blue
Cable Jacket PVC Cable Length 100m(328ft)
Conductor Solid bare copper Twisted Pairs 4 pair
Frequency Bandwidth 250MHz Max. Data Rate 1000Mbps
Operating Temperature -20C to 60C (-4F to 140F) Installation Temperature 0C to 50C (32F to 122F)

Product Highlights

Cat6 SFTP Solid PVC Cable, Spool

  • Rated for any 10Base-T, 100Base-T, and 1000Base-T network

  • Comes in a convenient spool with length of 100m(328 feet)

  • Meets IEEE 802.3af and IEEE 802.3at for PoE applications

Innovative Craftsmanship for Maximum Performance and Security

Solid Cable Design

Simple installation, durable when it comes to impact and abrasion

4-Pair 8-Core Twisted Pair

High-precision twisted cable, reducing resistance and allowing for a better flow of electrons

Overall Braided Shielded Layer

Providing superior structural integrity, and reducing low frequency external interference

PVC Jacket

Built to withstand high levels of stress, pulling, and pushing

Descending length cable markings

Easy identification of cable length for easy installation

One Stop Shop for Ethernet Network Cabling System

Cable assemblies and Installation tools are provided in F-tone.COM for simple Installation and high degree of protection of patch cables.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
