Part Number: CCWDM-SX-2A

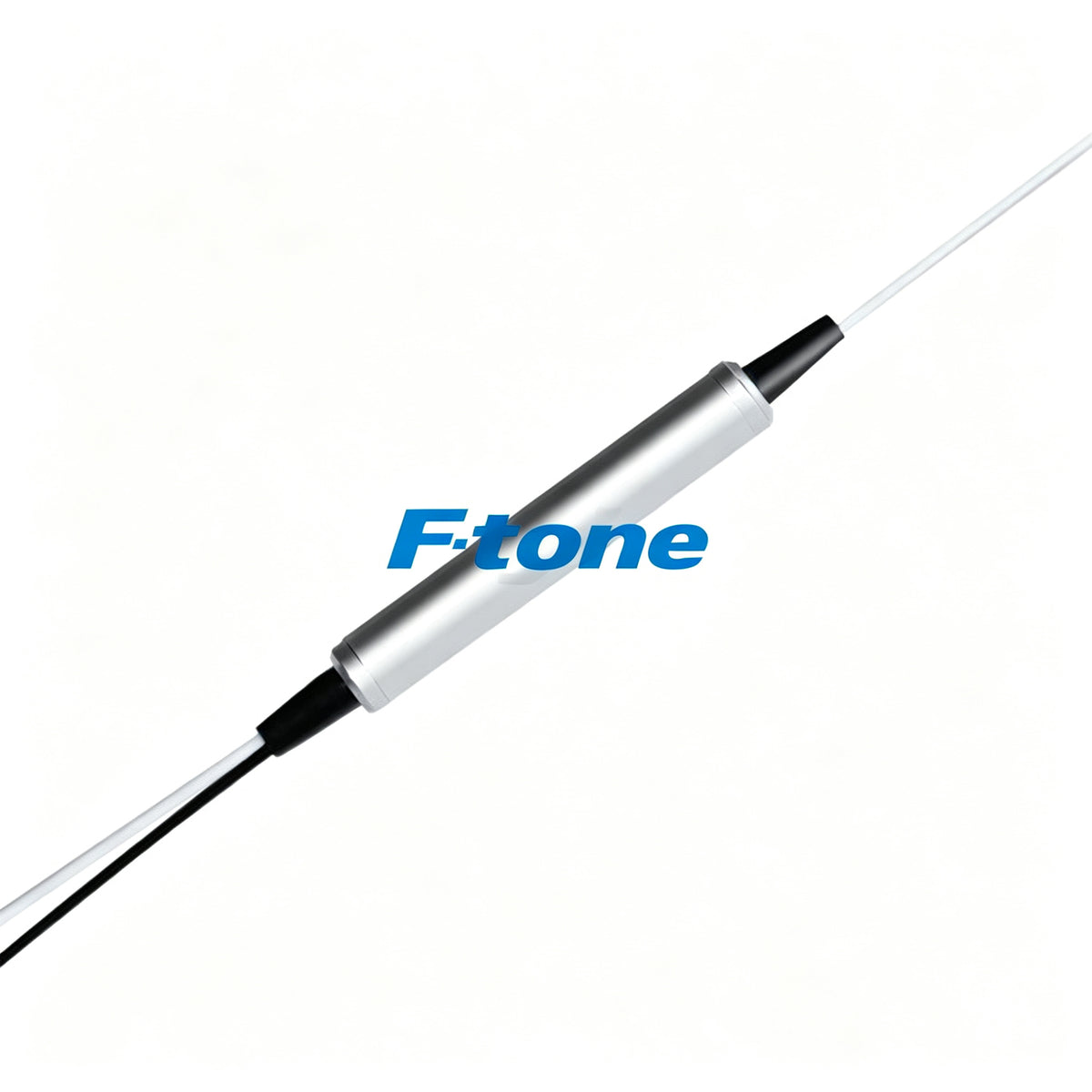

Single Fiber CCWDM Mux Demux, 2 Channels 1490-1570nm, Side-A, ABS pigtailed module, LC/UPC


Compact coarse wavelength division multiplexers (CCWDM Mux) is the low insertion loss version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology adopts free-space optics platform which can significantly improve optical performance. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss).

Product Details

Number of Channel 2 Wavelength 1490-1570nm
Channel Passband ±6.5nm Insertion Loss ≤ 1.5dB (with connectors and adapters)
Line Type LC/UPC Channel Spacing 20nm
Housing ABS pigtailed module Technology Free Space
Cable Diameter 0.9mm Fiber Length 0.5m
Adjacent channel Isolation ≥ 30dB Non-adjacent channel Isolation ≥ 40dB
Polarization Dependent Loss ≤ 0.5dB Polarization Mode Dispersion ≤ 0.1ps
Operating Temperature -5°C~ +65°C Storage Temperature -40°C~+85°C

Product Highlights

Compact CWDM Mux Demux

  • Built-in Mux and Demux in one unit, working on two network fibers

  • Ultra low loss, super thermal stability, and excellent reliability

  • Applicable to CWDM system and optional special service

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Tips

• If you have any channels, housing or other requirements, welcome to contact [email protected]


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
