Compact CWDM Mux Demux, 2.0dB IL, Single Fiber, TX/RX

Compact CWDM Mux Demux, 2.0dB IL, Single Fiber, TX/RX

Afficher tous les détails

Part Number: CCWDM-SX-A

CCWDM Mux Demux, Single Fiber 2/4/8/9 Channels, TX RX, Optional Connectors and Housing


Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.

Product Details

Number of Channel 2/4/8/9 Wavelength 1270-1610nm
Channel Spacing 20nm Channel Bandwidth ±6.5nm
Line Type Single Fiber Technology Free space
Connector LC/SC/FC/ST, UPC/APC polish Housing FTU/1U rack/ABS module/Aluminum box
1310nm Port Pass Band Width 1260nm~1360nm 1550nm Port Pass Band Width 1520nm~1620nm
Operating Temperature -40°C~+85°C Storage Temperature -40°C~+85°C

Customized Service

Compact CWDM Mux Demux

  • Ultra low loss, super thermal stability, and excellent reliability
  • Smaller size compact design to save much space in the application
  • Applicable to CWDM system and optional special service

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Structure and Dimension

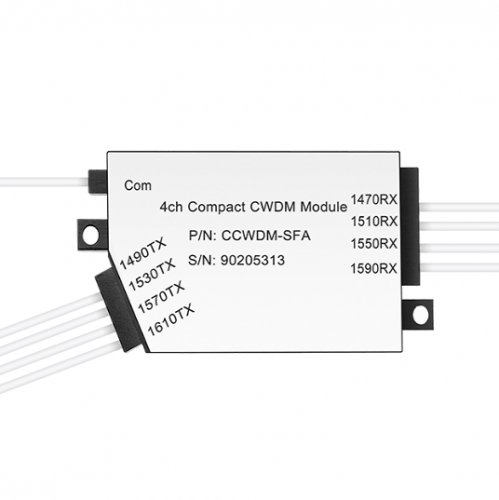

The aluminum box of single fiber CCWDM Mux Demux has 2 kinds of dimension. For the 4 channels CCWDM Mux, the dimension is 44mm(W)*25mm(D)*6mm(H), and for the 8 channels CCWDM Mux, the dimension is 55mm(W)*45mm(D)*6mm(H).

Tips

• If you have any channels, housing or other requirements, welcome to contact [email protected].


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
