Part Number: QDD-400G-DR4-S

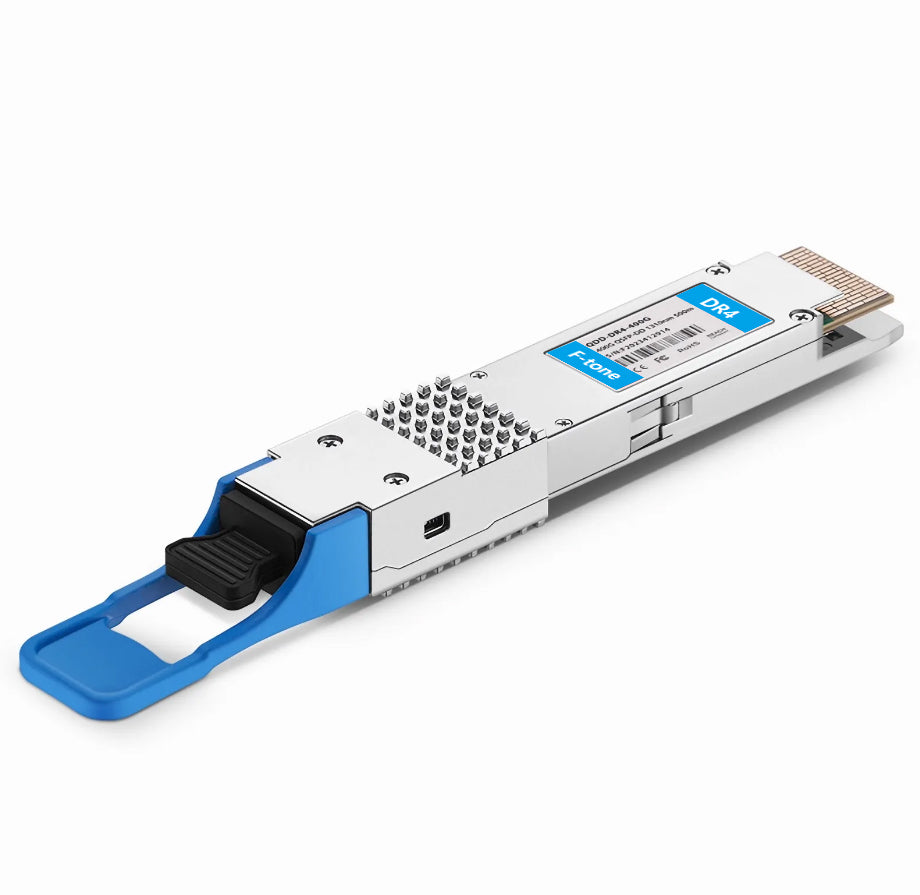

Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD PAM4 Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)

The 400GBASE-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-DR-100G. It is a cost-effective and lower power consumption solution for 400GBASE data center.



Specifications

Cisco Compatible QDD-400G-DR4-S Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 425Gbps (4×106.25Gb/s)
Wavelength 1310nm Max. Cable Distance 500m
Connector MPO-12/APC Media SMF
Modulation Format PAM4 Receiver Type PIN
TX Power -2.9~4.0dBm Minimum Receiver Power -5.9dBm
Power Budget 3dB Receiver Overload 4.0dBm
Max. Power Consumption 9W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 8×50G-PAM4 Modulation (Optical) 4×100G-PAM4
BER 1E-12 Inbuilt FEC No
Core Size G.652/9um Packaging Technology COB
MTBF 4928939 Hours (@40°C, 60%CL)

2544866 Hours (@40°C, 90%CL)

3968949 Hours (@50°C, 60%CL)

1976795 Hours (@50°C, 90%CL)		 Application 400G Ethernet
Protocols QSFP-DD MSA HW Rev 5.1, QSFP-DD CMIS Rev 5.0, IEEE 802.3bs Warranty 5 Years




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
