Part Number: QDD-400G-ZR-S

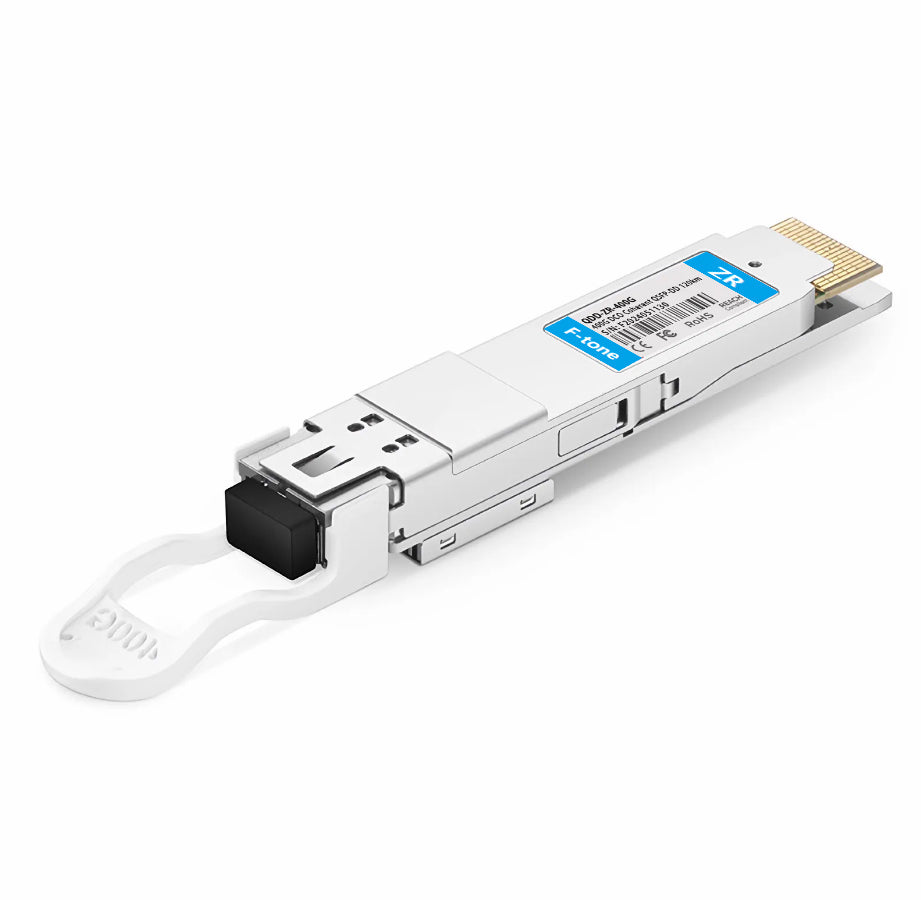

Cisco QDD-400G-ZR-S Compatible 400G DWDM Tunable QSFP-DD Optical Transceiver Module (SMF, 1528.77~1566.52nm, ≤120km, LC/UPC, DOM)

The QSFP-DD DCO transceiver provides 400GBASE-ZR throughput up to 120km using EDFA over single-mode fiber (SMF) via an LC/UPC connector. With compliance to OIF MSA standards and multi-vendor interoperability, the module allows interoperability and rapid deployment with other standard-compliant components. It can operate at temperatures between 0 and 70°C. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. Using C-FEC and 16QAM modulation, the module supports 400G tunable WDM transmission per wavelength, with up to 40km unamplified and 120km amplified reach. It is intended to be used in access, edge, core, and data center, supporting an open and interoperable networking ecosystem.


Note: This module is not currently compatible with Cisco devices running Cisco IOS XR software. Verify the operating system before deployment.

Specifications

Cisco Compatible QDD-400G-ZR-S Vendor Name F-tone
Form Factor QSFP-DD Max. Data Rate 400Gbps
Wavelength 1528.77~1566.52nm Max. Cable Distance Amplified: ≤120km

Unamplified: ≤40km
Connector Duplex LC/UPC Media SMF
TX Power -13~-9dBm RX Power Amplified: Full Rx OSNR tolerance: -12~0dBm

Extended range: -15~1dBm

Unamplified: -20~0dBm
Max. Power Consumption 18.5W Minimum Receiver Power Amplified: -12dBm Unamplified: -20dBm
DDM/DOM Supported Commercial Temperature Range 0°C to 70°C (32 to 158°F)
Inbuilt FEC CFEC Modulation Format DP-16QAM
CD Robustness 2400(ps/nm) OSNR Tolerance 26dB/0.1nm
Protocols OIF 400ZR, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018 Application Edge DCI
