Cisco QDD-400G-ZRP-S Compatible QSFP-DD DCO 400G DWDM C-band Tunable Coherent ITU CH13-CH61 50GHz >120km Duplex LC/UPC SMF Transceiver Module

Cisco QDD-400G-ZRP-S Compatible QSFP-DD DCO 400G DWDM C-band Tunable Coherent ITU CH13-CH61 50GHz >120km Duplex LC/UPC SMF Transceiver Module

Afficher tous les détails

Part Number: QDD-400G-ZRP-S

Cisco QDD-400G-ZRP-S Compatible 400G DWDM Tunable QSFP-DD Optical Transceiver Module (SMF, 1528.77~1567.13nm, >120km, LC, DOM)

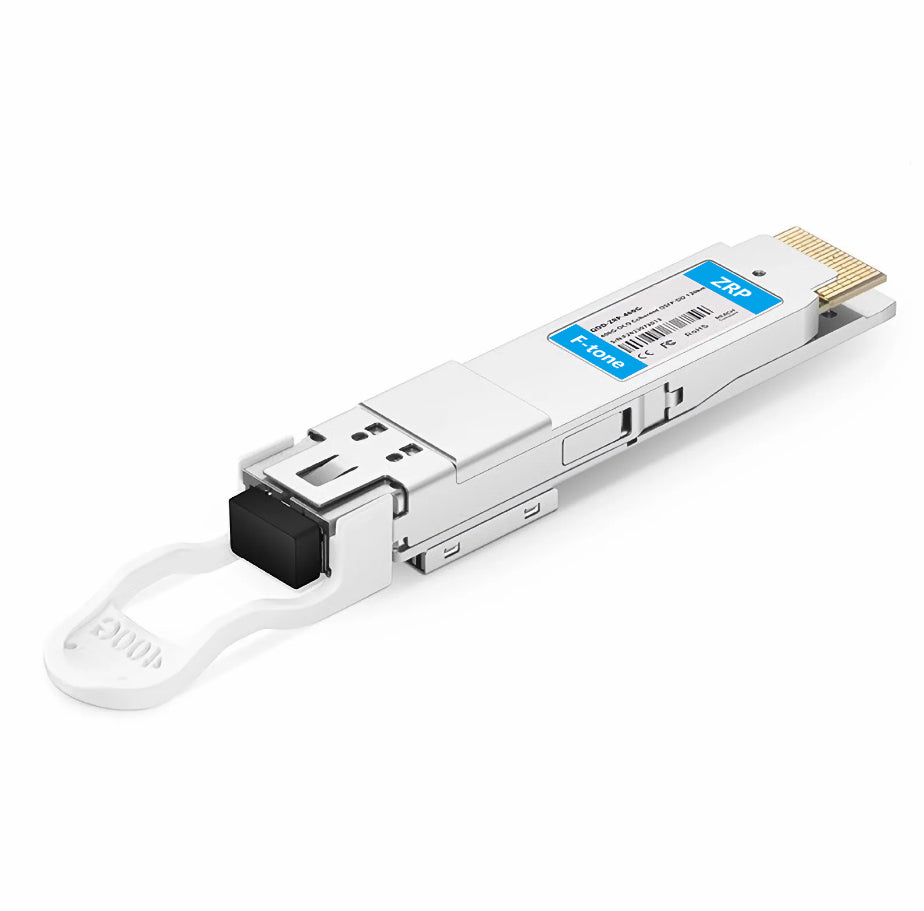

The 400G QSFP-DD ZR+ is a C-Band optical frequency tunable coherent optical module, that combines 7nm coherent DSP ASIC functionality with best-in-class ultra-narrow line-width tunable lasers, high-speed modulators and high responsively coherent receivers. This transceiver is also the one capable of reaching the longest transmission distance thanks to the high-performing O-FEC algorithm. With compliance to OIF MSA standards and multi-vendor interoperability, the module allows interoperability and rapid deployment with other standard-compliant components. Featuring operational simplicity and open ecosystem interoperability, it enables service providers and cloud operators to transition to 400G+ while minimizing TCO. It is intended to be used in access, edge, core, and data center, supporting an open and interoperable networking ecosystem.


Note: This module is not currently compatible with Cisco devices running Cisco IOS XR software. Verify the operating system before deployment.

Specifications

Cisco Compatible QDD-400G-ZRP-S Vendor Name F-tone
Form Factor QSFP-DD Max. Data Rate 100/200/300/400 Gbps
Wavelength 1528.77nm-1567.13nm Max. Cable Distance >600km
Connector Duplex LC/UPC Media SMF
CD Tolerance ZR400-OFEC-16QAM: 12.0ns/nm

ZR300-OFEC-8QAM: 18.0ns/nm

ZR200-OFEC-QPSK: 24.0ns/nm

ZR100-OFEC-QPSK: 48.0ns/nm		 DDM/DOM Supported
TX Power -13~-7dBm RX Power Amplified:

Full Rx OSNR tolerance: -12~0dBm

Extended range:

ZRx00-OFEC: -18~3dBm

400ZR: -15~1dBm

Unamplified:

400ZR: -20~0dBm

ZR400-OFEC-16QAM: -23~0dBm

ZR300-OFEC-8QAM: -26~0dBm

ZR200-OFEC-QPSK: -30~0dBm

ZR100-OFEC-QPSK: -32~0dBm
Max. Power Consumption 22.5W Commercial Temperature Range 0~70°C
OSNR Tolerance 400G ZR: 26dB/0.1nm

400G ZR+: 23.5dB/0.1nm

300G ZR+: 20dB/0.1nm

200G ZR+: 15dB/0.1nm

100G ZR+: 12dB/0.1nm		 Inbuilt FEC OFEC, CFEC
Modulation Format 100G DP-QPSK,200G DP-QPSK,300G DP-8QAM,400G DP-16QAM Protocols Open ZR+ MSA 2.0 and OIF-400ZR-02.0, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
