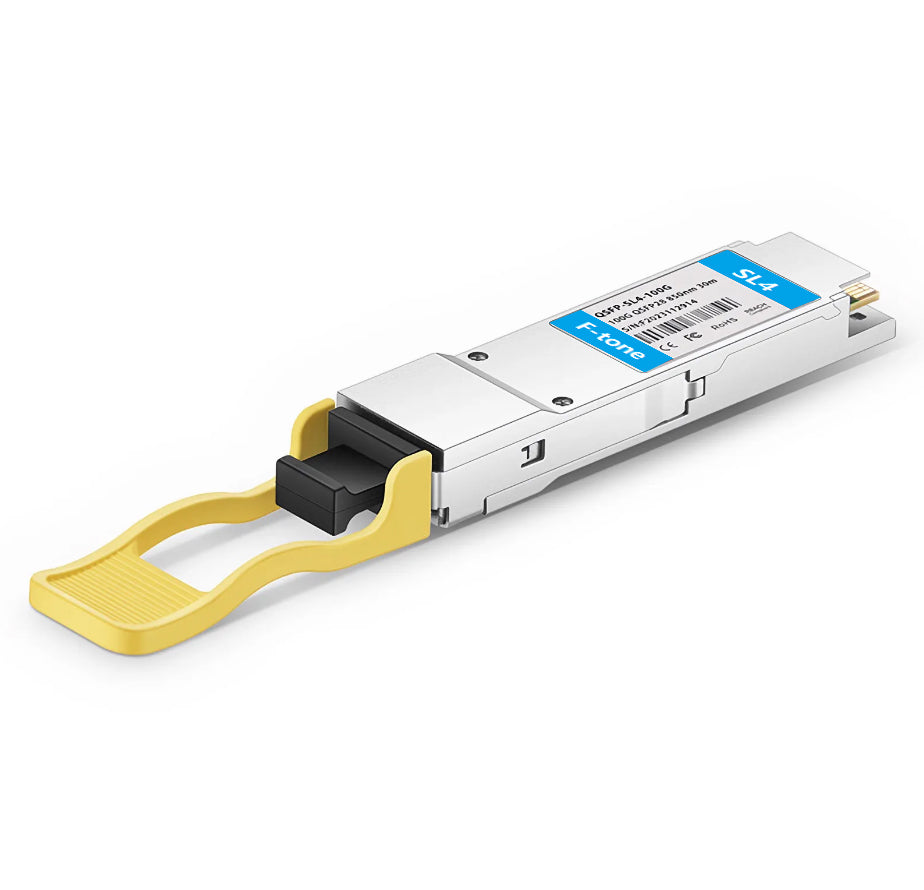

The Cisco QSFP-100G-SL4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 30m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cisco Compatible | QSFP-100G-SL4 | Vendor Name | F-tone |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 850nm | Max Cable Distance | 20m@OM3/30m@OM4 |
| Connector | MPO-12 | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm | Minimum Receiver Power | -10.3dBm |
| Power Budget | 1.9dBm | Receiver Overload | 2.4dBm |
| Max Power Consumption | ≤2.5W | Extinction Ratio | >2dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Modulation (Electrical) | 4x 25G-NRZ | Modulation (Optical) | 4x 25G-NRZ |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | Yes |
| Packaging Technology | COB Packaging | Core Size | 9um/125um |
| Protocols | IEEE 802.3bm | Warranty | 5 Years |
