The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 200m over OM3 MMF or 300m over OM4 MMF using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy-to-install, hot swappable transceiver is suitable to be used at key locations optical networks like 100GBASE Ethernet.

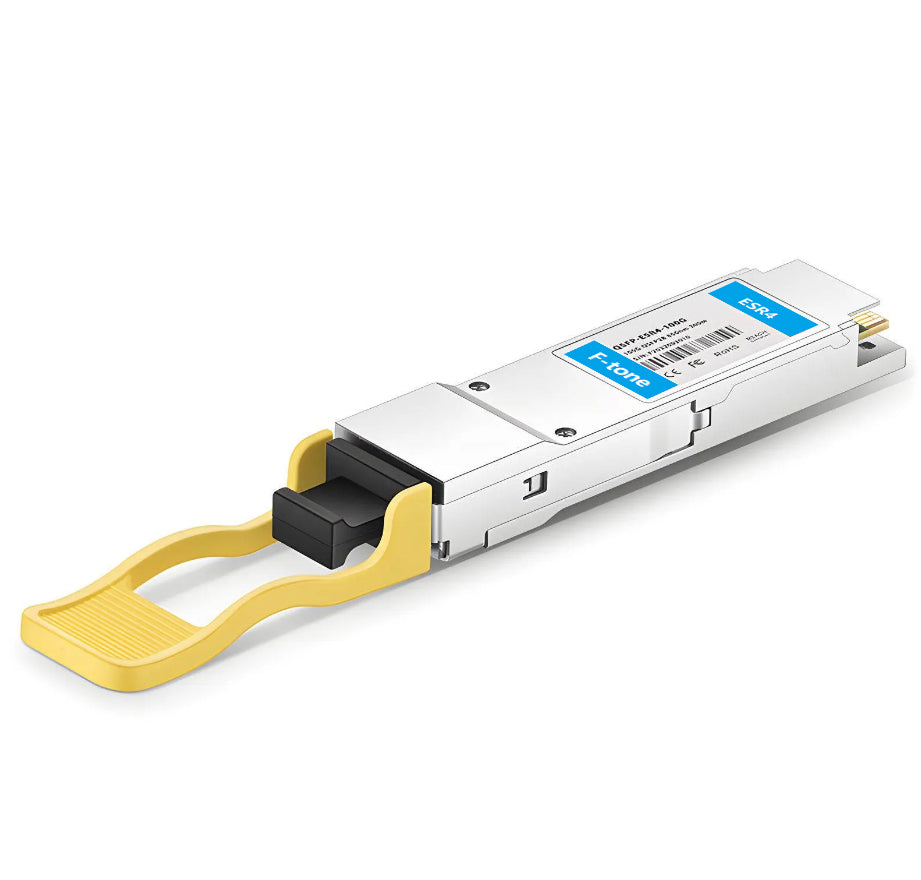

Cisco QSFP-100G-SR4-S Compatible 100GBASE-ESR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 300m, MTP/MPO, DOM)
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cisco Compatible | QSFP-100G-SR4-S | Vendor Name | F-tone |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelengths | 850nm | Max Cable Distance | 200m@OM3/300m@OM4 |
| Connector | MTP/MPO-12 | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -4~4dBm | RX Power | -12~2.4dBm |
| Power Consumption | ≤2.5W | Extinction Ratio | >2dB |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | Supported |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Modulation (Electrical) | 4x 25G-NRZ | Modulation (Optical) | 4x 25G-NRZ |
| Core Size | 50um/125um | Packaging Technology | COB Packaging |
| Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8679 | Warranty | 5 Years |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
