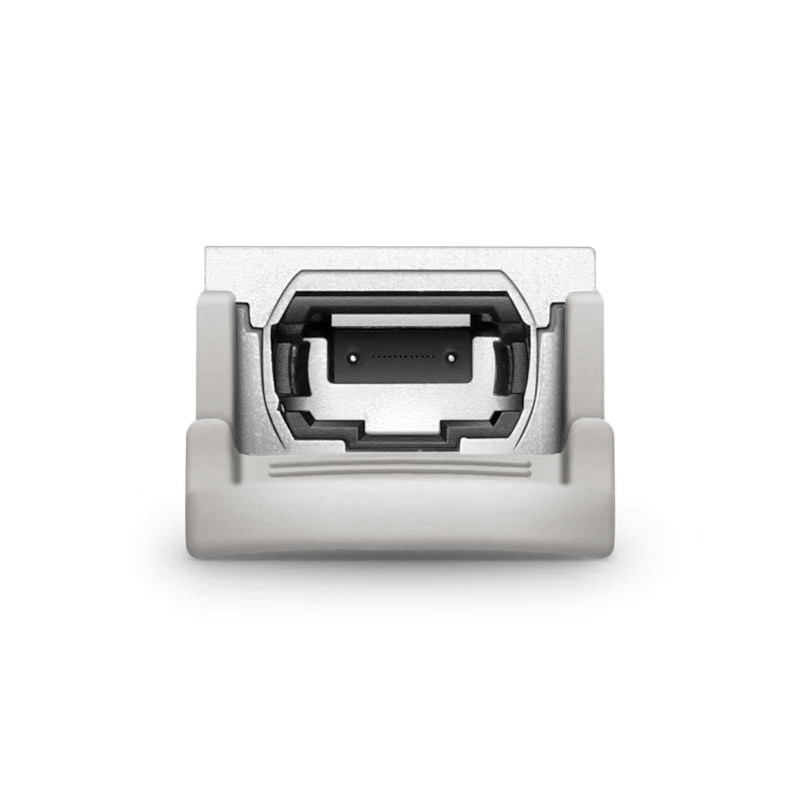

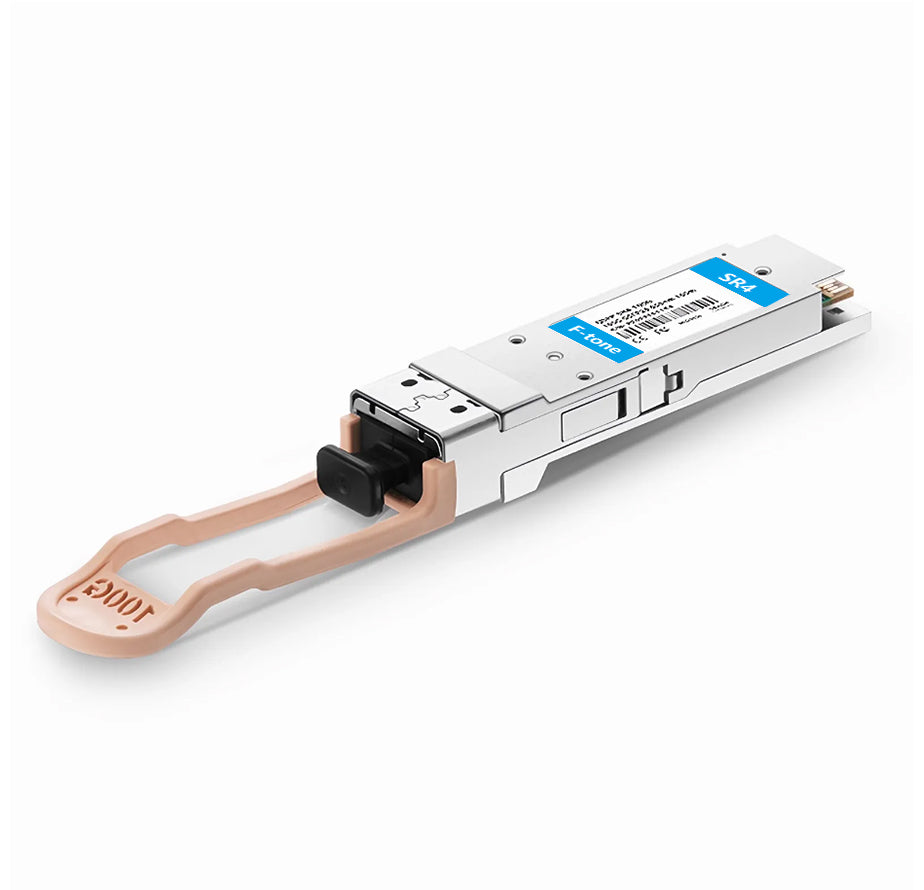

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The Cisco QSFP-100G-SR4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 70m over OM3 and 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. The module also supports breakout to 4x 25GBASE-SR SFP28. The transceiver is compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, and CAUI-4 standards. Digital diagnostics are provided via the I2C interface for real-time monitoring.


It is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.

Specifications
Parameter Value Parameter Value
Cisco Compatible QSFP-100G-SR4-S Vendor Name F-tone
Form Factor QSFP28 Max. Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max. Cable Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12/UPC Media MMF
Transmitter Type II-VI VCSEL Receiver Type PIN
TX Power -8.4~2.4dBm Minimum Receiver Power -10.3dBm
Power Budget 1.9dB Receiver Overload 2.4dBm
Typical Power Consumption ≤2.5W Extinction Ratio >2dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 4x 25G-NRZ Modulation (Optical) 4x 25G-NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR Packaging Technology COB (Chip on Board) Packaging
Bit Error Ratio (BER) 5E-5 MTBF 30,800,000 Hours (@40°C, 60% CL)
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 Warranty 5 Years



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
