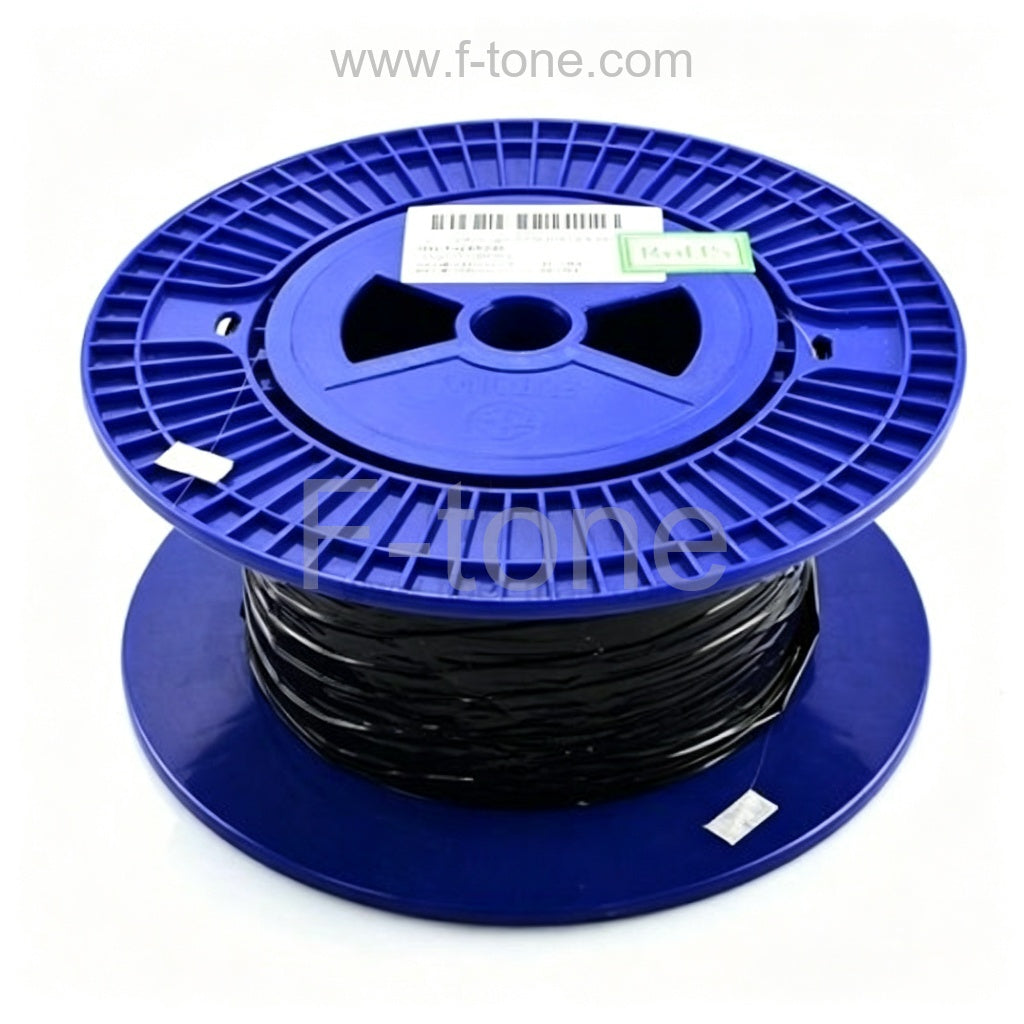

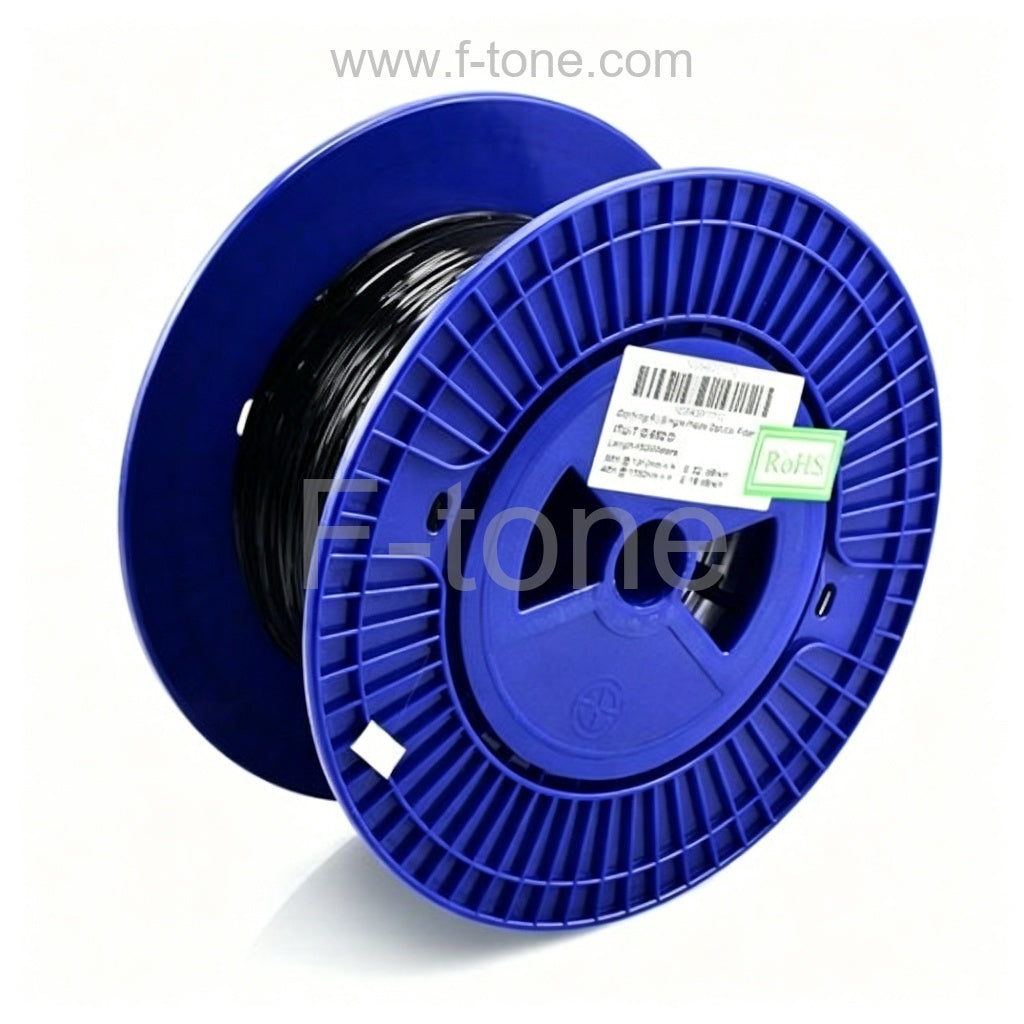

Corning ClearCurve LBL 9/125/250µm Single Mode Fiber per Km

Corning ClearCurve LBL 9/125/250µm Single Mode Fiber per Km

Afficher tous les détails

Part Number: CORNING-SMF-LBL

Corning ClearCurve Ultra 9/125/250µm Single Mode Fiber I per Km

"The price above is for one kilometer length" G.657.A2

Corning’s ClearCurve®Ultra fiber is a full-spectrum optical fiber with improved macro-bend performance compared to legacy single-mode fibers. Products of all types are constantly decreasing their size and becoming more complex. Having the ability to place fibers in increasingly smaller footprints without performance degradation is crucial to keeping the optical loss budgets low. The contribution by bend loss to the overall loss budget increases as the amount of fiber that is deployed in the bent state increases. Having a fiber that is designed for low bend loss makes these new smaller products a reality.

Item Details

  • Fiber Count: 1 Fiber
  • Core Size: 9μm
  • Cladding Size: 125μm
  • Jacket Size: 250μm
  • Fiber Type: Corning ClearCurve LBL
  • Fiber Screening: G 657 A2

Features
  • Low bend loss design.
  • Fully compatible with legacy fibers.
  • Ease of handling and splice ability of standard single mode fibers.
  • Economical bend loss performance.
  • Optical attenuation that is flat across the C & L-Bands.
  • Fully compliant with the following standards:
    ITU-T G.652.D
    ITU-T G.657.A2
Application
  • Bend sensitive applications
  • Footprint reduction
  • Small size and integrated EDFA's
  • Couplers
  • Pigtails/patch-cords

Corning ClearCurve LBL 9/125/250µm Single Mode Fiber I


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
