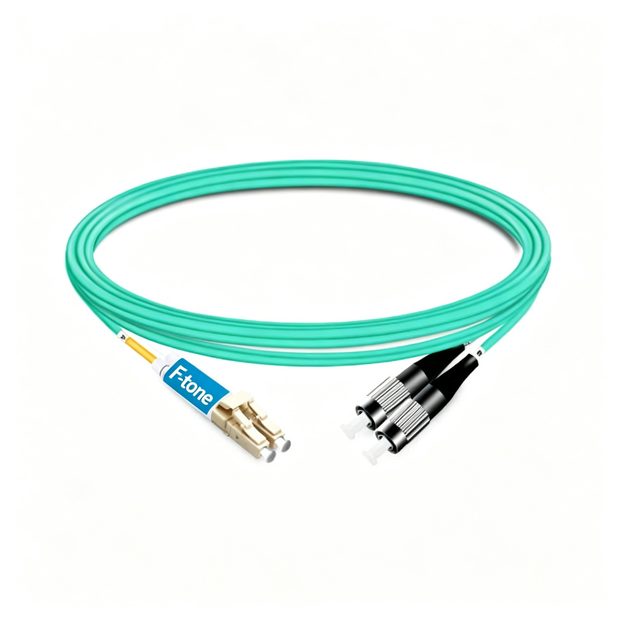

2.0mm OM3 10G Multimode Duplex Plenum Rated Fiber Optical Cable

2.0mm OM3 10G Multimode Duplex Plenum Rated Fiber Optical Cable

Afficher tous les détails

Part Number: DFC-OM3P

Plenum Rated 2.0mm Duplex Fiber Optical Cable, OM3 10G Multimode

Duplex Fiber Cables consist of two fibers joined by a thin connection between the two jackets. Workstations, fiber switches and servers, fiber optic modems, and similar hardware require duplex fiber. They are used in applications where data needs to be transferred bi-directionally. One fiber transmits data one direction; the other fiber transmits data in the opposite direction,and the cable is completed with a PVC or LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket

Characteristics

  • Available both in single mode fiber type and multimode fiber type
  • Highly flexible and lightweight for easy handling
  • Scientific design with serious processing art
  • Available Jacket diameters: 2.0mm, 3.0mm, and more
  • Available in PVC, Riser-rated (OFNR), Plenum-Rated (OFNP), and LSZH (Low-Smoke Zero Halogen)
  • The jacket is anti-corrosion, anti-water, anti-UV lights radiation, flame-retardant and harmless to environment etc

Applications

  • Optical cable jumper or pigtail cable
  • Indoor riser level and plenum level cable distribution
  • Interconnection of instruments and communication equipments

Specifications

Cable Code Cable Diameter mm Cable Weight Kg/km TBF Diameter μm Tensile Strength Long/Short term N Crush Resistance Long/Short term N/100mm Bending Radius Dynamic/Static mm
PVC Jacket LSZH Jacket
GJFJV-FT1 1.6±0.2 2.4 2.6 600±50 100/500 50/30
GJFJV-FT2 1.8±0.2 3.5 4.5 900±50 60/100 100/500 50/30
GJFJV-FT3 2.8±0.2 6.0 7.5 900±50 60/100 100/500 50/30

Optical Characteristics

50/125μm 62.5/125μm G.625 G.625
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.50dB/km ≤0.50dB/km
@1550nm ≤0.40dB/km ≤0.40dB/km
Bandwidth(Class A) @850nm ≥500MHz•km ≥200MHz•km
@1300nm ≥1000MHz•km ≥600MHz•km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1450nm
Attenuation at temperature cycling △α(-20℃～+60℃) @1300nm ≤0.25dB/km ≤0.25dB/km
@1550nm ≤0.10dB/km ≤0.15dB/km




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
