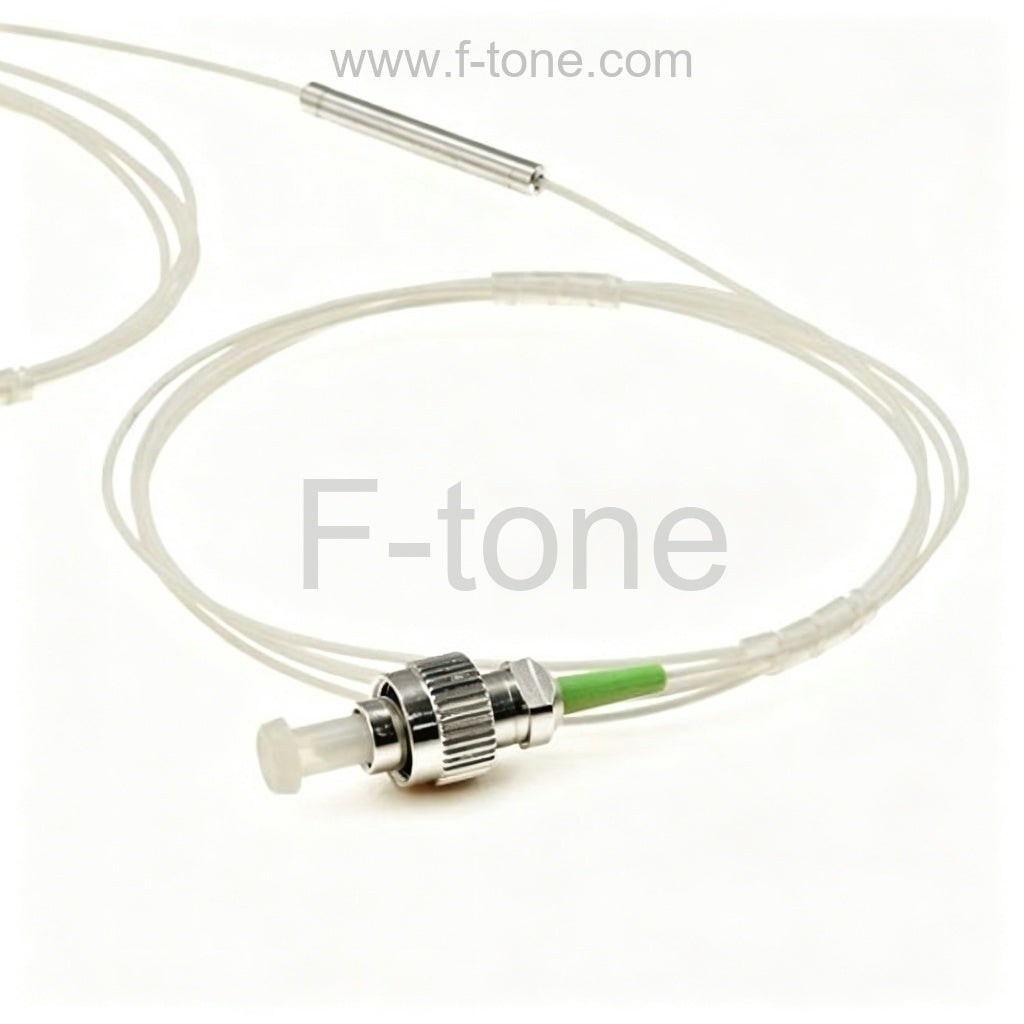

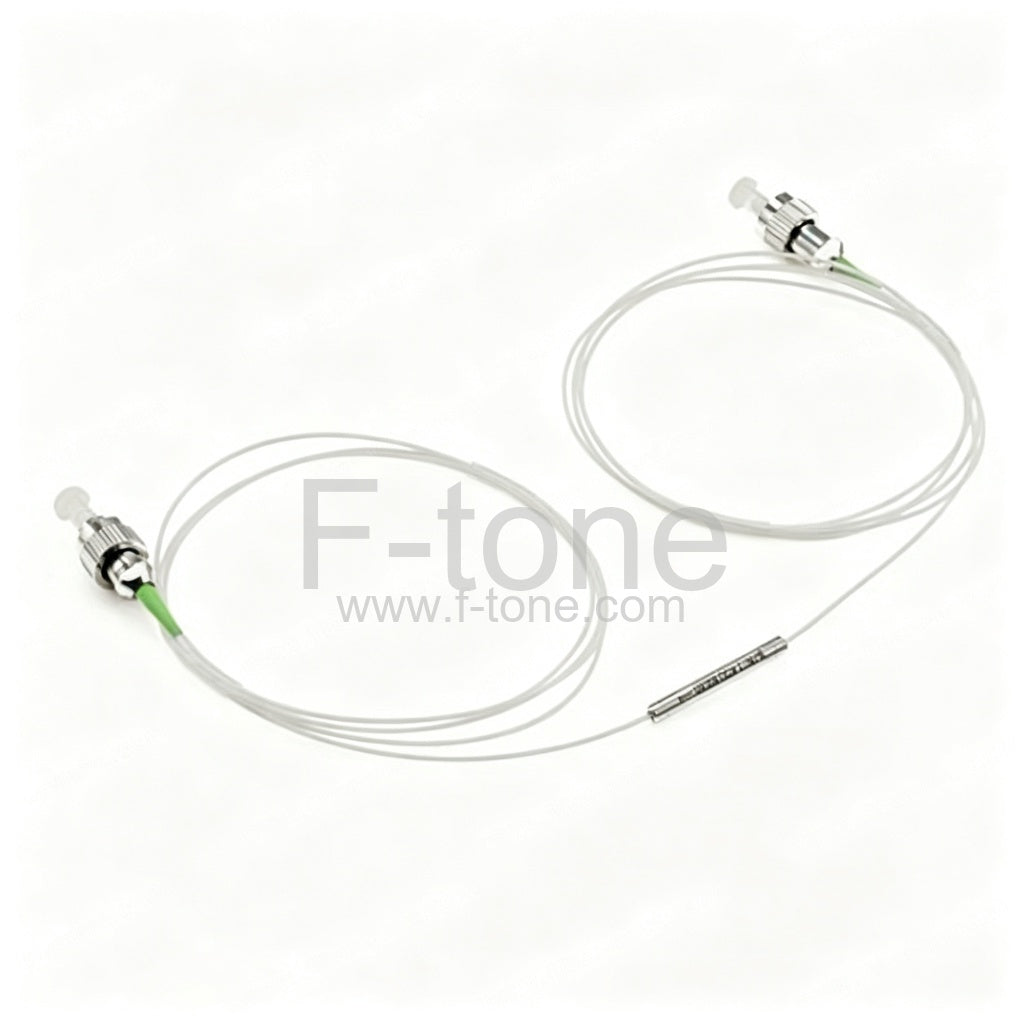

FC/APC 1310nm 900um Dual Grade Jacket Tube Mini Size Optical Isolator

FC/APC 1310nm 900um Dual Grade Jacket Tube Mini Size Optical Isolator

Afficher tous les détails

Part Number: DP31-223

1M FC/APC 1310nm 900um Dual Grade Jacket Tube Mini Size Optical Isolator

Optical isolator is a kind of allowing only along the direction of light transmission, and the return of light isolation effect of optical passive components, this product uses the advanced packaging technology, quality stable and reliable; Generally can be divided into C wave band single optical isolator and C wave band two-stage optoisolator, can be widely used in CATV, optical fiber testing system, fiber amplifier, optical fiber LAN, products meet Telcordia GR-1221-CORE.

Characteristics

  • Low insertion loss & high isolation
  • Optical path epoxy free
  • Low PDL & PMD
  • Telcordia compliant
  • Good uniformity
  • RoHS compliant

Applications

  • Fiber-optic components
  • DWDM/CWDM
  • EDFA

Specifications

Parameter Specification Unit
Center Wavelength (λc) 1310/1550/1590 nm
Standard/Mini Size Standard Size Mini Size
Single/Dual Stage Single Stage Single Stage Dual Stage Single Stage Dual Stage
(w/o PMD) (with PMD)
Isolation (at λc±15nm) 1 Min 32 32 46 30 46 dB
Isolation (at λc±15nm) 2 Min 22 22 40 20 36 dB
Insertion Loss (at λc) 1 Typ 0.4 0.4 0.5 0.4 0.6 dB
Insertion Loss (at λc±15nm) 2 Max 0.6 0.6 0.7 0.6 0.8 dB
Return Loss (Input/Output) Min 60/55 60/55 60/55 55/55 55/55 dB
PDL Max 0.05 0.05 0.05 0.1 0.1 dB
PMD Max 0.25 0.05 0.05 0.25 0.05 ps
Operating Temperature Range 0~+70 °C
Storage Temperature Range -40~+85 °C
Maximum Power Handling 500 mW
Package Dimension (L*∅) 30*5.5 35*5.5 26*3.8 mm
1. Tested at 23°C, all SOP, and values referenced without connector.
2. Tested at 0~70°C, all SOP, and values referenced without connector.

Dimension

Order Information

Single/Dual Stage Grade Center Wavelength Fiber Type Size Connector Type
S: Single stage without PMD
D: Dual stage
P: Single stage with PMD





 P: P-grade







 31: 1310nm
55: 1550nm
59: 1590nm
64: 1064nm




 1: 250μm bare fiber
2: 900μm fiber






 1: Standard size
2: Mini size






 0: Without connector
1: FC/PC
2: FC/UPC
3: FC/APC
4: SC/PC
5: SC/UPC
6: SC/APC
7: ST
8: LC
9: MU
X: Customized




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
