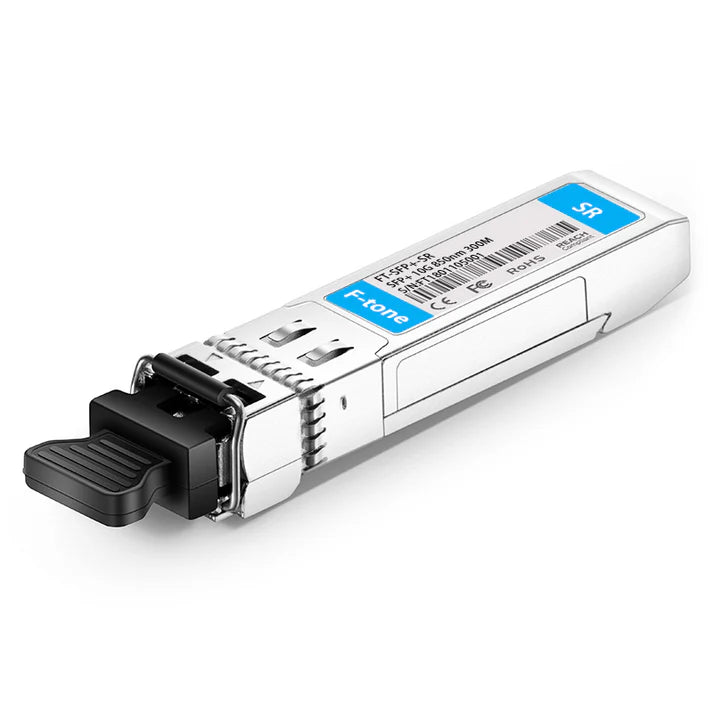

1/10GBASE SX SFP+ 850nm 300m Multi-Mode Transceiver

Part Number: DSFP-1/10G-SX85

1/10GBASE SFP+ 850nm 300m Multi-Mode Transceiver

DSFP-10G85-3M

F-tone 1/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over MMF fiber. They are compliant with SFF-8431, IEEE 802.3-2005 10GBASE-SR/SW and 1000BASE-SX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. Host board designers should follow the IC manufacturer's recommended settings for interoperability with an SFP+ limiting module. This product is for applications specifically designed for 10G SFP+ ports and 1G/10GSFP+ ports and not native 1G SFP ports.

Key Features

• Hot-pluggable SFP+ footprint
• Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
• Distance up to 33m/82m @62.5/125um and 300m @50/125um MMF
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Single 3.3Vpower supply
• Uncooled 850nm VCSEL laser
• Duplex LC connector
• Built-in digital diagnostic functions

Applications

• 1000BASE-SX 1G Ethernet
• 10GBASE-SR/SW 10G Ethernet

Datasheet

Quality Certification

Ordering Information

Packaging

• Antistatic bag
• Packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

• OEM/ODM order is available
• We can supply DSFP-10G85-3M according to your requirements, and design DSFP-10G85-3M label and packaging for your company. We welcome any inquiry for customized Dual-Rate 1/10G SFP+ optical transceiver.

Order Procedure

• Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
  a. Email ([email protected]) a rough sketch to a detailed drawing.
  b. Our engineer will review the project and provide a quotation within 24 hours.
  c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying Dual-Rate 1/10G SFP+ From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer supplier of Dual-Rate 1/10G SFP+ transceivers. All of our Dual-Rate 1/Dual-Rate 1/10G SFP+ transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee Dual-Rate 1/10G SFP+ transceivers to work in your system and all of our Dual-Rate 1/10G SFP+ transceivers come with a lifetime advance replacement warranty. If you have questions about Dual-Rate 1/10G SFP+ optics, please feel free to contact us at [email protected]

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
