10G DWDM SFP+ 100GHz DWDM SFP+ 40km Transceiver

Part Number: DWDM-SFP10G-40FM

10GBASE 100GHz DWDM SFP+ 40km Transceiver

DWDM-SFP10G-40

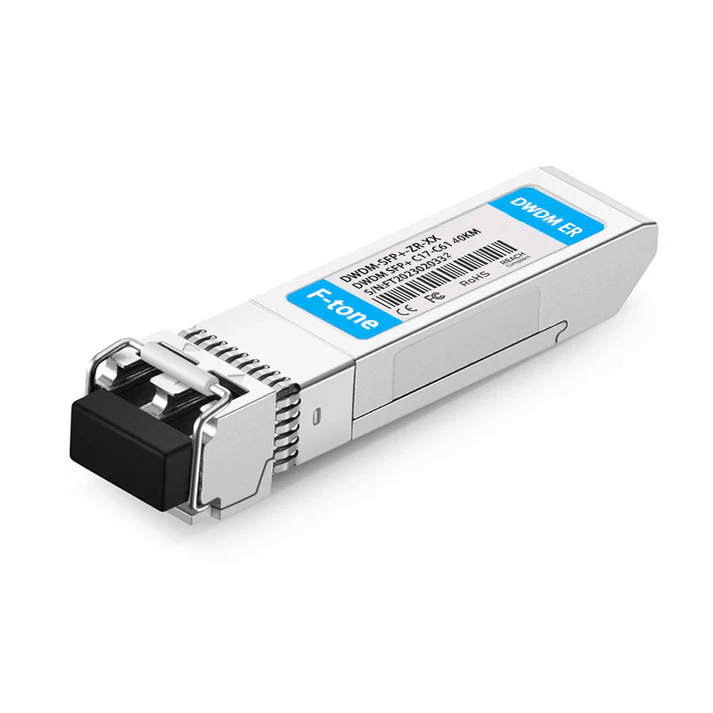

The DWDM-SFP10G-40 series single mode transceiver is small form factor pluggable module for duplex optical data communications. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528.77nm to 1563.86nm as specified by the ITU-T. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks. It is with the SFP+ 20-pin connector to allow hot plug capability. The transmitter section uses a DWDM EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a PIN detector and a limiting post-amplifier IC. The DWDM-SFP10G-40 series are designed to be compliant with SFP+ Multi-Source Agreement (MSA) Specification SFF-8431.

Key Features

• Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid
• Temperature-Stabilized DWDM EML Transmitter
• Duplex LC Connector
• Power Dissipation＜1.5W
• Dispersion tolerance from -300ps/nm to 800ps/nm
• Hot-Pluggable SFP+ Footprint
• Compliant with SFF-8431 MSA
• Compliant with SFF-8432 MSA
• Operating case temperature standard : 0°C to +70°C
• Built-in Digital Diagnostic Function
• Average Output Power:-1~4dBm
• Receiver Sensitivity:-15dBm

Applications

• 10GBASE-ER/EW
• 10G Fiber Channel
• Other optical links

Datasheet

Quality Certification

Optical Characteristics

Notes

• 1. Output power is coupled into a 9/125µm SMF.
• 2. Average received power; BER less than 1E-12 and PRBS 231-1 test pattern.

Spectral Attenuation Measurement

WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM). Conventional WDM systems provide up to 8 channels in the 3rd transmission window (C-Band) of silica fibers around 1550nm. Dense wavelength division multiplexing (DWDM) uses the same transmission window but with denser channel spacing. Channel plans vary, but a typical system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.Dense wavelength division multiplexing (DWDM) refers originally to optical signals multiplexed within the 1550nm band so as to leverage the capabilities (and cost) of erbium doped fiber amplifiers (EDFAs), which are effective for wavelengths between approximately 1525–1565nm (C band), or 1570–1610nm (L band).

All the 10GB DWDM SFP+ 40km 100GHz Wavelengths that we can offer refer to the following table:

Ordering Information

Notes

• XX means ITU 100GHz DWDM Channel Number (17 = 1563.86nm, 18 =1563.05nm, 19 = 1562.23nm, 20 = 1561.42nm, etc.)
• XXX means ITU 50GHz DWDM Channel Number (H17 = 1563.86nm, C17 = 1563.46nm, H18 = 1562.64nm, C18 = 1563.02nm, etc.)
