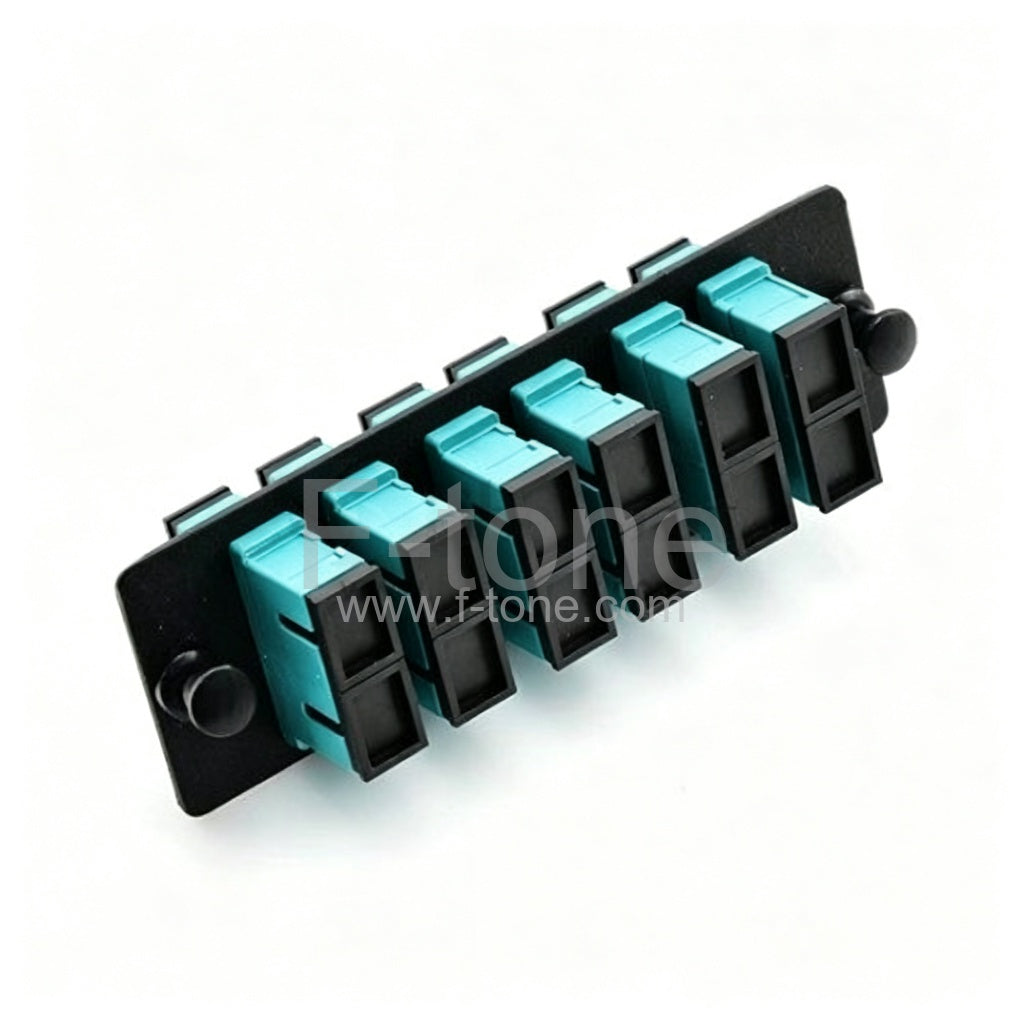

6 Ports SC Panduit Opticom Compatible Fiber Adapter Panels (FAPs)

6 Ports SC Panduit Opticom Compatible Fiber Adapter Panels (FAPs)

Afficher tous les détails

Part Number: FAP-SMM-6SCSDX

6 Ports SC Panduit Opticom Compatible Fiber Adapter Panels (FAPs) Compatible with:

Panduit Opticom ™ Angled Rack Mount Trays and Fiber Adapter Patch Panels

  • 1RU FTT1A with CFAPPBL1A
  • 2RU FTT2A with CFAPPBL2A


Opticom ™ Standard Rack Mount Trays and Fiber Adapter Patch Panels

  • 1 RU FTT1 with CFAPPBL1
  • 2 RU FTT2 with CFAPPBL2


Opticom ™ Rack Mount Enclosures

  • 1 RU FRME1U
  • 2 RU FRME2U
  • 3 RU FRME3
  • 4 RU FRME4

Opticom ™ Rack Mount Fiber Cassette Enclosures

  • 1 RU FCE1U
  • 1 RU open access FCE1UA
  • 2RU FCE2U
  • 4 RU FCE4U

Dimensions(inch)

Key Features and Benefits

  • Panduit® Opticom® Compatible
  • Meet or exceed TIA/EIA-568-C.3 requirements
  • Provides a complete system solution for connectivity
  • Available in 2,3,4,6,8,12,16,18 ports
  • Horizontal and vertical MPO adapters, LC,Keyed LC, SC, ST
  • TIA/EIA-604 FOCIS compliant or compatible simplex or duplex
  • Allows for the industry's highest patch field density and fiber counts
  • Assures flexibility and ease of network deployment and moves, adds, and changes
  • Available in compatible with all Panduit LC, SC, ST and MPO fiber adapter panels and cassettes

F-tone.Com SC Panduit Opticom Compatible Fiber Adapter Panels(FAPs)

2 Port SC Panduit Opticom Compatible (FAPs)
F-tone FAPS# FIBER TYPE DUPLEX & SIMPLEX POLISH SPLIT SLEEVERS MFG PART#
FAP-SMM-2SCSDX OS1/OS2 Duplex APC Zirconia Ceramic FAP2WAGDSCZ
UPC FAP2WBUDSCZ
OM1 Duplex UPC Phosphor Bronze FAP2WEIDSC
OM2 Duplex UPC Phosphor Bronze FAP2WBUDSC
OM3/OM4 Duplex UPC Phosphor Bronze FAP2WAQDSC
UPC Zirconia Ceramic FAP2WAQDSCZ
3 Port SC Panduit Opticom Compatible (FAPs)
F-tone FAPS# FIBER TYPE DUPLEX & SIMPLEX POLISH SPLIT SLEEVERS MFG PART#
FAP-SMM-3SCSDX OS1/OS2 Duplex APC Zirconia Ceramic FAP3WAGDSCZ
UPC FAP3WBUDSCZ
OM1 Duplex UPC Phosphor Bronze FAP3WEIDSC
OM2 Duplex UPC Phosphor Bronze FAP3WBLDSC
FAP3WBUDSC
OM1/OM2 Duplex UPC Phosphor Bronze FAP3WEIDSCA
Zirconia Ceramic FAP3WEIDSCZ
OM3/OM4 Duplex UPC Phosphor Bronze FAP3WAQDSC
UPC Zirconia Ceramic FAP3WAQDSCZ
4 Port SC Panduit Opticom Compatible (FAPs)
F-tone FAPS# FIBER TYPE DUPLEX & SIMPLEX POLISH SPLIT SLEEVERS MFG PART#
FAP-SMM-4SCSDX OS1/OS2 Duplex APC Zirconia Ceramic FAP4WAGDSCZ
UPC FAP4WBUDSCZ
OM1 Duplex UPC Phosphor Bronze FAP4WEIDSC
OM2 Duplex UPC Phosphor Bronze FAP4WBLDSC
FAP4WBUDSC
OM3/OM4 Duplex UPC Phosphor Bronze FAP4WAQDSC
UPC Zirconia Ceramic FAP4WAQDSCZ
6 Port SC Panduit Opticom Compatible (FAPs)
F-tone FAPS# FIBER TYPE DUPLEX & SIMPLEX POLISH SPLIT SLEEVERS MFG PART#
FAP-SMM-6SCSDX OS1/OS2 Duplex APC Zirconia Ceramic FAP6WAGDSCZ
UPC Phosphor Bronze FAP6WBUDSC
UPC Zirconia Ceramic FAP6WBUDSCZ
Simplex APC Zirconia Ceramic FAP6WAGSCZ
UPC Zirconia Ceramic FAP6WBUSCZ
OM1 Duplex UPC Phosphor Bronze FAP6WEIDSC
Simplex FAP6WEISC
OM2 Duplex UPC Phosphor Bronze FAP6WBLDSC
Simplex FAP6WBLSC
FAP6WBUSC
OM3/OM4 Duplex UPC Phosphor Bronze FAP6WAQDSC
Duplex Zirconia Ceramic FAP6WAQDSCZ
Simplex Phosphor Bronze FAP6WAQSC
Simplex Zirconia Ceramic FAP6WAQSCZ
12 Port SC Panduit Opticom Compatible (FAPs)
F-tone FAPS# FIBER TYPE DUPLEX & SIMPLEX POLISH SPLIT SLEEVERS MFG PART#
FAP-SMM-12SCSDX OS1/OS2 Simplex APC Zirconia Ceramic FAP12WAGSCZ
UPC FAP12WBUSCZ
OM1 Simplex UPC Phosphor Bronze FAP12WEISC

Any Type Any Size All at F-tone.Com

MAKE TO ORDER (Options)

  • F-tone offers Panduit compatible adapter plates for use in many of our inside and outside plant enclosures.
  • CMultimedia modular panels allow customization of installation for applications requiring integration of fiber optic and copper cables.
  • Opticom® Fiber Optic Adapter Panels (FAPs) are used with Opticom® Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom® Zero RU Fiber Adapter Panel
  • As the best OEM Fiber Adapter Panel manufacturer, F-tone provides a wide range of quality Fiber Adapter Panel with detailed specifications displayed for your convenient selecting.
Connector Dimension Fibers Polish Fiber Type Pack Material Color
  • • LC
  • • SC
  • • ST
  • • MTRJ
  • • MPO
  • • Blank
  • • Unloaded
  • • Customized
  • • 4 fibers - 24 fibers
  • • APC
  • • UPC
  • • Simplex
  • • Duplex
  • • 3 pack
  • • 4 pack
  • • 6 pack
  • • 8 pack
  • • 12 pack
  • • 16 pack
  • • 18 pack
  • • N/A
  • • Metal
  • • Zirconia Ceramic
  • • Phosphor Bronze
  • • Beige
  • • Blue
  • • Green
  • • Yellow
  • • Aqua
  • • Black
  • • Red

For assistance customizing your Adapter Panel, please call us at +86-1-86-2786-1199 or email to [email protected].

Packaging of Fiber Adapter Panels


F-tone provides exquisite appearance, high quality packaging for fiber adapter panels at different sizes, this packaging can protect your product from getting damaged largely. What’s more,the logo on the packaging can be customized as requirement.


Application OM3
Connector Type SC
No. of Port 6 Ports
Color Aqua
Material of Plates C.R.S. Powder Coated
Material of Sleeves Zirconia Ceramic
Finish Powder Coated in Central Office(Black)
FAP Orientation Horizontal
Vertical
Dimensions(inch) 4.30*1.39*1.92(L*W*HD)
Package Carton

Notes:

  • If customized, please contact at [email protected]


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
