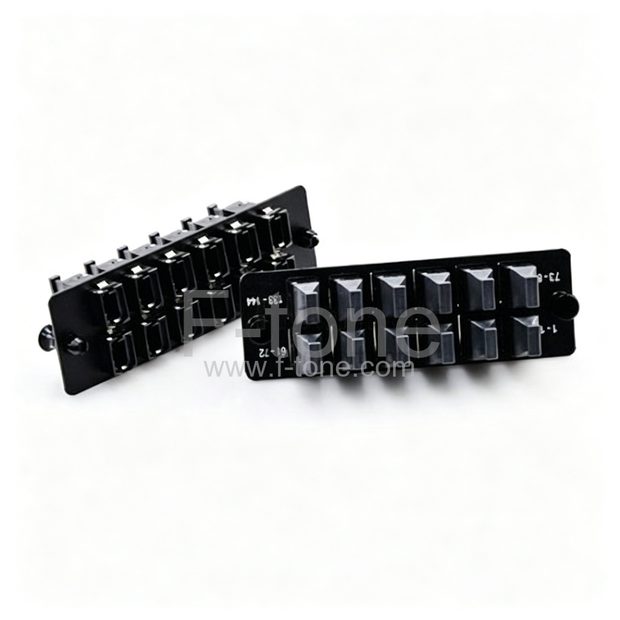

Fiber Adapter Panel with 12 MTP(12/24F) Keyup/Keyup Adapters (Charcoal Gray), Horizontal

Fiber Adapter Panel with 12 MTP(12/24F) Keyup/Keyup Adapters (Charcoal Gray), Horizontal

Afficher tous les détails

Part Number: FHD-FAP12MTPHB

12-Position MTP Fiber Adapter Panel, Key-up/Key-up, ODF and ODB

No.of Adapter/Port 12 Fiber Count 12/24
Adapter Type MTP Adapter Color Charcoal Gray
Fiber Mode OS2,OM1,OM2,OM3,OM4 Plate C.R.S POWDER COATED
FAP Orientation Horizontal Dimensions(mm) 109*35*21(L*W*HD)
RoHS Compliancy Status Compliant Application ODF and ODB

Key Features and Benefits

Provides a complete system solution for connectivityMeet or exceed TIA/EIA-568-C.3 requirementsAllows for the industry's highest patch field density and fiber countsAssures flexibility and ease of network deployment and moves, adds, and changes

Drawing and Dimension(mm)

F-tone.COM Twelve Port MTP Series Fiber Adapter Panels

F-tone FAPS TYPE OF KEY ADAPTER COLOR FIBER TYPE HORIZONTAL & VERTICAL
FHD-FAP12MTPHA Key-up/Key-down Black OS2/OM1/OM2/OM3/OM4 Horizontal
FHD-FAP12MTPHAR Key-up/Key-down Red OS2/OM1/OM2/OM3/OM4 Horizontal
FHD-FAP12MTPHB Key-up/Key-up Charcoal Gray OS2/OM1/OM2/OM3/OM4 Horizontal

Packaging Details


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
