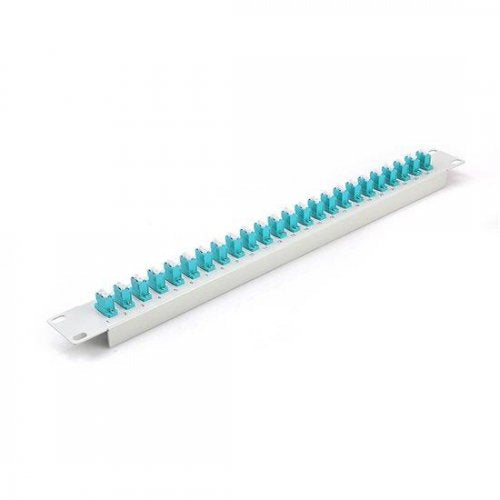

96 Fibers 48x LC UPC Duplex Fiber Adapter Panel 1U 19'' OM4 Multimode

96 Fibers 48x LC UPC Duplex Fiber Adapter Panel 1U 19'' OM4 Multimode

Afficher tous les détails

Part Number: FPP1U48LCDOM4

Fiber Adapter Panel 1U 19'' OM4 Multimode 96 Fibers 48x LC UPC Duplex

F-tone high-density fiber adapter panel is made of SPCC material and pre-loaded with LC adapters. The adapters meet TIA/EIA-568.3-C and TIA/EIA-604 FOCIS standards, and the adapter sleeves are made of zirconia ceramic to ensure connection precision. The product is primarily used with standard 19-inch cabinets or racks and is mainly applied for interconnection and cross-connection in main distribution, horizontal distribution, and equipment distribution areas within buildings. The panel can be used directly with racks or cabinets without additional cassettes or enclosures.

F-tone high-density fiber adapter panels feature simple installation and flexible deployment, offering a plug-and-play solution that enhances cabling efficiency. They facilitate easy cable access from both the front and rear of the panel, making it an ideal choice for enterprise building LAN cabling.

Features

● Space Saving 1U Design, Mount to Standard EIA 19" Rack Rails

● Allow for Field Splicing Applications UsingF-tone high-density fiber adapter panels

● Adapter Housing Color-Coding Follows TIA/EIA-568-C.3, Making It Easy to Identify Fiber Types

● Clear Numbering for Quick Fiber Identification

● Double-layer LC Panels (Two Pieces) Reduce Rattling and Loose Fit

Specifications

Number of Ports 48 Fiber Count 96 Fibers
Adapter Type LC UPC Duplex Adapter Color Blue
Fiber Mode OM4 (OM3) 50/125μm Material of Plate Steel, Powder-coated Black
Material of Sleeve Zirconia Ceramic Durability ≤500 Mating Cycles
Dimensions (HxW) 1.73''x19'' (44x482.6mm) RoHS Compliancy Status Compliant
Operating Temperature -25 ℃ to 50 ℃ Application Standard EIA 19'' Rack Rails/ 1U Fixed Enclosure


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
