48 Fibers Outdoor Wall Mountable Fiber Terminal Box as Distribution Box FS(05)B4848C

48 Fibers Outdoor Wall Mountable Fiber Terminal Box as Distribution Box FS(05)B4848C

Afficher tous les détails

Part Number: FT-05B48-48C

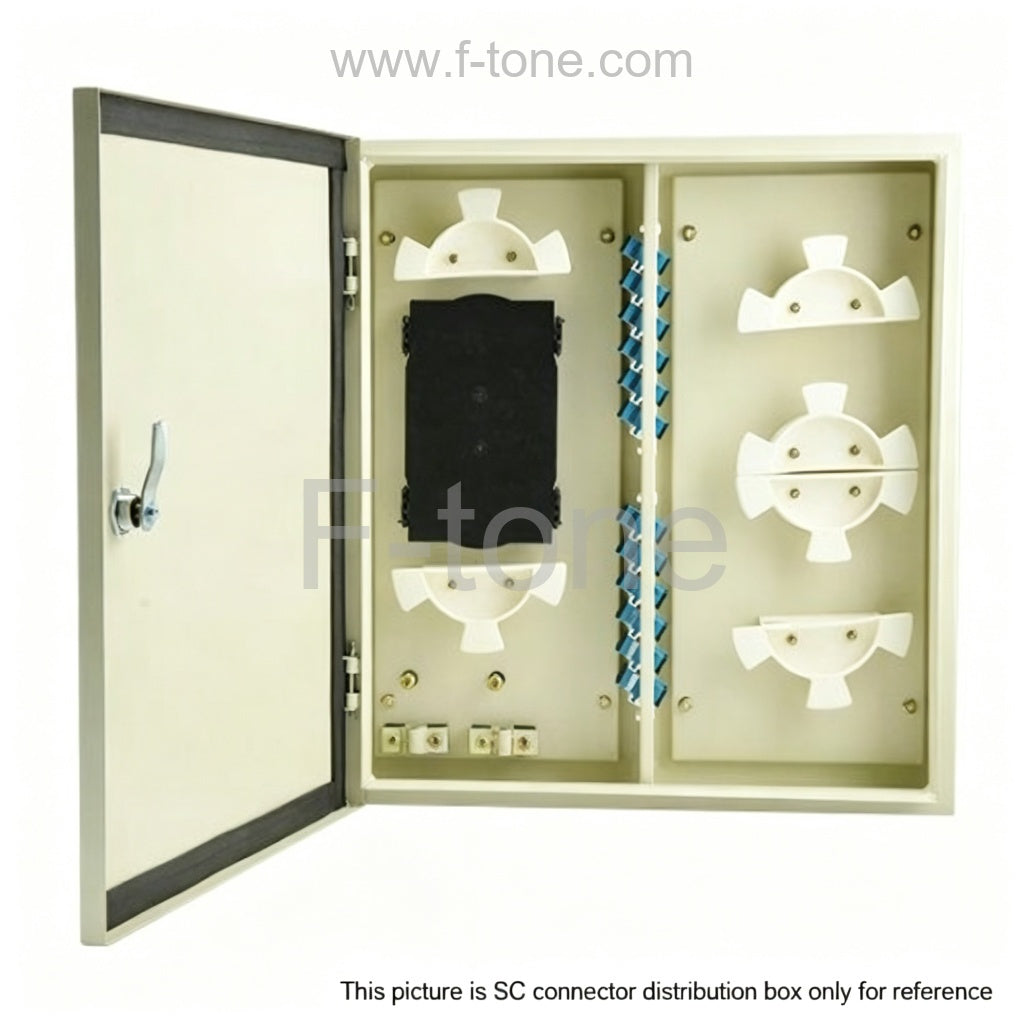

48 Fibers FS(05)B-48-48C Type Outdoor Wall Mounted Distribution Box

Standard wall mount enclosure is mainly used for connecting the indoor/outdoor optical cables, patch cords and pigtails. It can be wall mounted or pole mounted and provides various accessories to avoid any unexpected damage to the fiber. This types of fiber termiantion box as distribution box, it is usually used in between wiring closets and equipment for fiber optic cable termination, use and management.

Note: This box does not come with any adapters and pigtails. If you need them, we can install them for you with few charges.

Material SPCC/AL/customized Dimensions(H*W*D ) 455*405*120mm
Max. Capacity of Fiber 48 fibers Port Number 48 ports
Suitable Adapter SC/FC/ST/LC Type Single door open
Atmosphere pressure 70KPa~106KPa Color Milk White

Features&Applications


Compliant with ISO(9001, RoHS, UL, Bellcore certification)Suitable for ribbon and bunchy fiber cablesFiber splice trays can be installed and changed easilySmall dimension and exquisite and easy for operationStandard cell structure size, wall mounted patch panel
Widely used in FTTH access networkTelecommunication NetworksCATV NetworksData Communications NetworksLocal Area Networks

Accessories for Complete Outdoor Wall Mounted Distribution Box


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
