Part Number: FT-32V-SM-20-Al

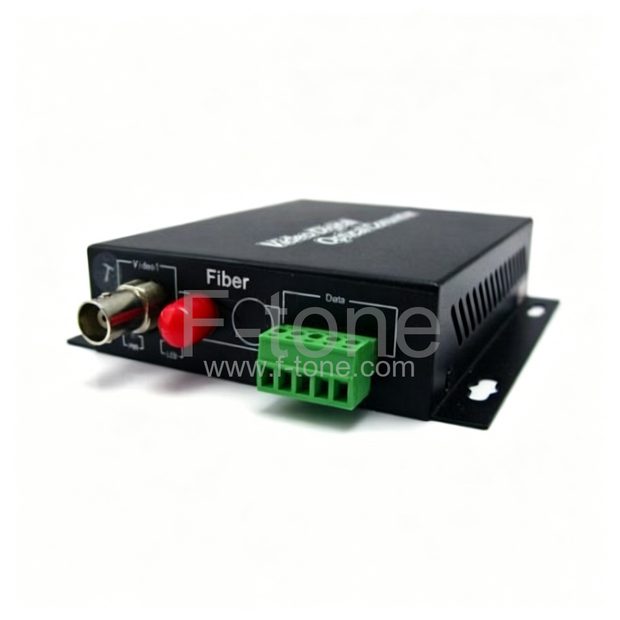

32 Channel Video to Fiber Optical Video Multiplexer Transmitter and Receiver SM 20km in Aluminum Alloy Case

Description

Model: FT-32V-SM-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 32 Channel digital composite video
Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key Features

Support Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Support for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Support Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM

Specifications

Video Connectors
Number of Channels 32channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Optical FC (Standard)
Input/output Compatibility PAL,NTSC,SECAM Standalone power Screw terminal block
Input/output voltage 1.0 Volt p-p Rack Power AC line card
Bandwidth 6.5MHZ
Bit Resolution 8-Bit Digital Transmission Electrical & Mechanical
Differential Gain < 1.5% Input Power Requirements DC 5V@2A
Differential Phase < 1.5° Power Adapter AC 100V~240V
Tilt < 5% Power Consumption < 3W
Signal-to-Noise Ratio(SNR) > 67 dB Shipping weight 5.5kg(include TX & RX)
Environmental
Operating Temperature -45 °C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
