Part Number: FT-730B-V

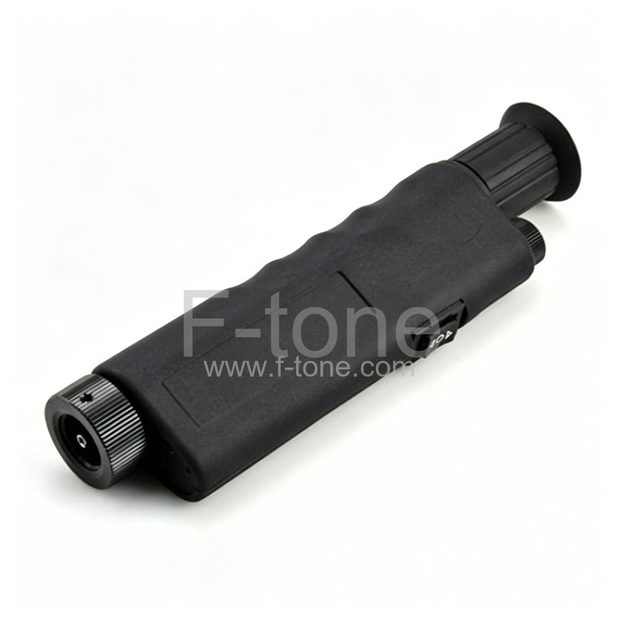

FT-730B Fiber Optic Inspection Probe


FT-730B fiber optic inspection microscope is a portable fiber end face inspector.


It can quickly check variouspatch cord and transceivers and display the fiber end face in PC/laptop/OTDR/smart phone/LCD display etc., multiple terminal devices from different packages. Fiber images can be saved in mobile device/PC and various display and test results can do the pass/fail optionally in PC/OTDR.

Five packages can be selected to work with FVO-730B probe as below. FVO-730B-P package to connect PC/OTDR/smart phones/tablets etc., digital devices.FVO-730B-P3 package to connect 4.3 inch display. FVO-730B-H package to connect both 3.5 inch display and digital devices. FVO-730B-T package to connect 8 inch display.

It’s super light and handy to take anywhere anytime for the network maintenance, engine installation, manufacturer QC process and final acceptance inspection. It’s also widely used in the telecommunication, mobile operator and university, research etc., lab and institution.

Key Features

  • 2 inch VSM-360A monitor with multiple functions support
  • USB transmission; Four-level zoom and Pan function
  • Single-way focus control for quick detection, get image within 3-5 seconds
  • 35 types of adapters tips available for different connectors and angle-mounted connectors with limited access space
  • Adapter tips easily interchangeable, no tools required
  • 95% Image centralization in screen
  • Precise resolution (<1 μm), no shadow or vignetting around screen
  • High definition image, no interface, no flash
  • Store and document image through multiple functions as AV video/Single-frame Image Capture/Zoom and Pan function/software analyze etc
  • Reliable output signal, no default under repeated operation
  • Water-proof; Quake-proof; Pressure-proof; Comfort and Simple for operation

Applications

  • End face inspection for patch cord /bulkhead-mounted equipment/transceiver etc
  • End face inspection of assorted connectors PC/APC,MPO/MTRJ etc
  • End face inspection of connectors at different angle in patch panels

Specification

Magnification/Resolution 400*/0.75μm(Based on benchmark -8 Inch monitor)
Field of View 0.35mm×0.25mm
Tips Connection Cone contact
Focus way /Range Two-way /<3mm
Output Type PAL or NTSC or USB
Light Source/Life time Coaxial blue LED with 100,000 hrs above
Size/Weight （ mm/kg ） 180*41*36 /0.164
Image Sensor 1/3 Inch 5V Voltage
Temperature -10~60 ℃
Humidity 90% Relative humidity Tolerance, no condenses



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
