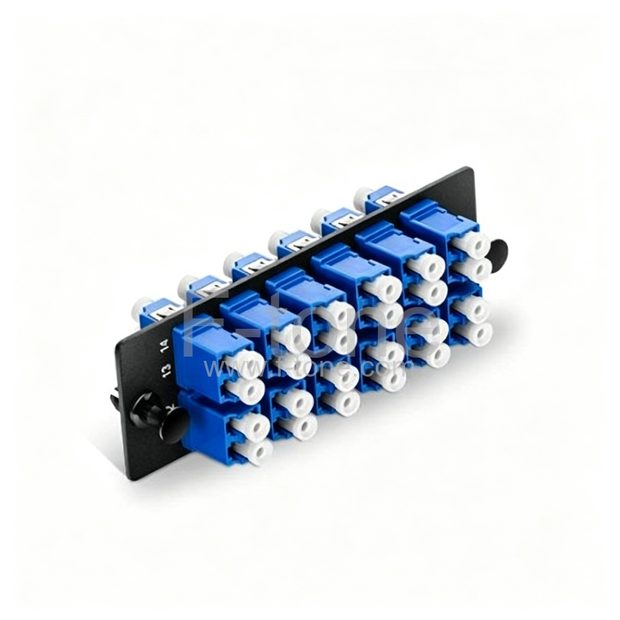

Part Number: FT-FAC24F-LCD-SM
Fiber Adapter Cassette 24 Fibers 12x LC Duplex OS2 Single Mode
The fiber adapter cassette accommodates and protects up to 96 fiber splices, supporting efficient cable organization and bend radius control to enhance cabling reliability and maintainability. The module can be directly installed into adapter cassette enclosures without the need for additional splice trays, streamlining deployment and improving space utilization.
Pre-loaded with pigtails, the cassette integrates heat-shrink splice sleeves, splice holders, and fiber slack management features. It supports LC, SC, and MTP interfaces with UPC or APC polish types, meeting diverse cabling requirements. Ideal for high-density fiber cabling in WANs, data centers, campus networks, government facilities, and central offices.
Item Spotlights
● Integrated Splice Holder Enables Easy Maintenance of Individual Spliced Fibers and Scalable Expansion Without Impacting Adjacent Fibers
● Tool-less Push-lock Rivets Support One-handed Installation and Removal, Simplifying Operation and Improving On-site Efficiency
● Interface Color-coding Follows the TIA/EIA-568.3-D standard, Making it Easy to Identify Fiber Types and Connector Polish
● Compatible with F-tone Fiber Adapter Enclosures, Supporting Front Installation and Independent Module Operation Without Disturbing Adjacent Cassettes
● Pre-terminated LC Adapters Help Save Time and Ensure Reliable Connections in High-density Data Centers, Enabling Easy On-site Assembly
Specifications
| Fiber Count | 24 Fibers | Fiber Mode | OS2 9/125μm |
|---|---|---|---|
| Front Connector Type | LC UPC Duplex (Blue) | Number of LC Port | 12 Ports |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Material of Splice Tray | ABS | Housing Type | Cassette |
| Material of Sleeve | Zirconia Ceramic | Material of Cassette Body | Aluminium (AL5052) |
| Included | 0.9mm OD, 70cm Pigtails, Heat Shrink Splice Sleeves, Splice Holders, Cable Tie | Dimensions (HxWxD) | 1.38''x 4.29''x 6.29'' (35x 109x 160mm) |
| Operating Temperature | -10 to 60℃ | Storage Temperature | -10 to 60℃ |
| Standard | RoHS Compliant | Application | Matching for F-tone Adapter Enclosures |
Product Highlights
F-tone Fiber Optic Cassettes snap quickly into the enclosures and modular design makes it easier to deploy or expand your infrastructure as your future network speed rates grow.
Clear Numbering
Visible port identification helps to follow array connection
Push-lock Rivets
Tool-less snap installation for easier moves, adds, and changes
Zirconia Ceramic Sleeves
High precision to ensure maximum connection between cables
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
