Load Fiber Bragg Grating Sensor

Load Fiber Bragg Grating Sensor

Afficher tous les détails

Part Number: FT-FBG-LA

Load Fiber Bragg Grating Sensor

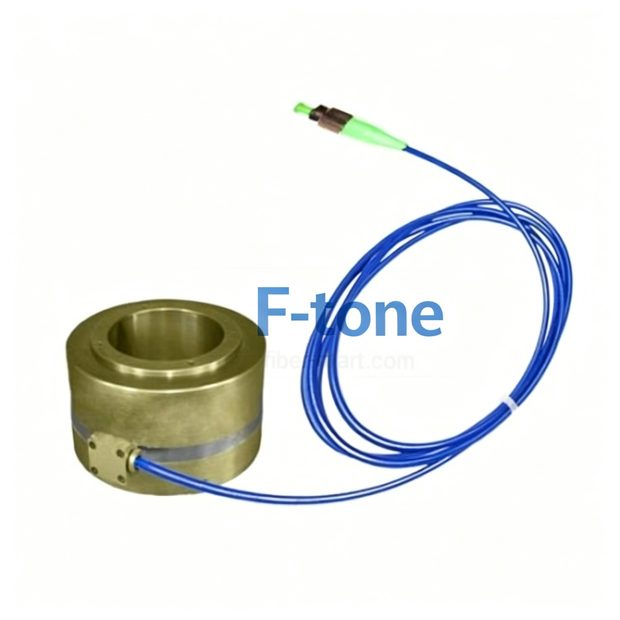

The Load FBG cell is designed primarily to monitor tiebacks and rock bolts. They, however, may be used during pile load tests and can monitor loads in cross lot struts and tunnel supports, etc. In most cases, the load cells are used in conjunction with a hydraulic jack and bearing plates. The load cell is a high strength alloy cylinder with 1~4 or 6 built-in high precision FBG Sensors. The gauge can measure the total load on the load cell and offer readings of respective sensors as well as measure uneven load and eccentric load. Its built-in temperature sensor can be used for compensation. It has high sensitivity and excellent waterproof capabilities.

Specifications:

  • Rated Capacities: 100 to 500 Kn
  • Over Range: 150% F.S.
  • Resolution: 0.025% F.S.
  • Accuracy: ±0.5% F.S.
  • Temperature Range: −20°C to +80°C
  • Internal Diameters: solid, 25, 50, 75, 100, 125, 150, 200, 250 mm



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
