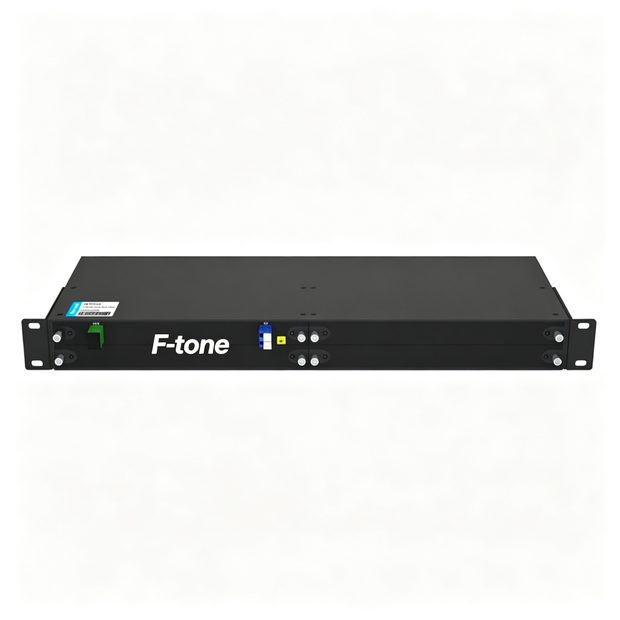

1U High Density Rack Mount Fiber Enclosure Unloaded, Holds 4 HD Cassettes/Panels

1U High Density Rack Mount Fiber Enclosure Unloaded, Holds 4 HD Cassettes/Panels

Afficher tous les détails

Part Number: FT-FHD-1U4P-RM

1U High Density Rack Mount Fiber Enclosure Unloaded, Holds 4 HD Cassettes/Panels

The High Density 1U rack mount modular fiber enclosure efficiently houses up to four HD series cassettes or fiber adapter panels. Its specialized front frame and push-lock rivets enable quick installation of HD components. The single-piece design offers full access for easy cable management.

The High Density Series includes modular, fixed, sliding drawer, blank, and sliding & tilt-down drawer enclosures. All are compatible with FHD® series cassettes and panels, making them ideal for high-density cabling in small enterprise data centers and telecom rooms.

Features

● Unique One-piece Structure Provides Full Accessibility to Front and Back, Ensuring Fast Deployment

● Compatible with HD Cassettes and Panels

● Up to 144 Fibers (LC) or 1,152 Fibers (MTP®-24)

● Space-Saving 1U Design, Mount to Standard EIA 19" Rack Rails

● Build-in Rear Cable Managers for Easy Maintenance

● Compatible With Multimedia Panel for Both Fiber and Copper Solution

Specifications

Number of Rack Spaces 1U Fiber Count Up to 144 Fibers (LC) or 1,152 Fibers (MTP®-24)
Product Type Modular Enclosure Shielding Type Unshielded
Number of Slots 4 Color Black
Material Steel, Powder-coated Black Included Accessories Mounting M6 Screws, Cable Entry Clips, Cable Ties
Dimensions (HxWxD) 1.73''x19.00''x7.67'' (44.0x482.6x194.8mm) Installation Standard EIA 19" Rack Rails
Loaded Unloaded Application Accepts HD Adapter Panels/Cassettes


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
