Part Number: FT-FWDM-T49/R3155

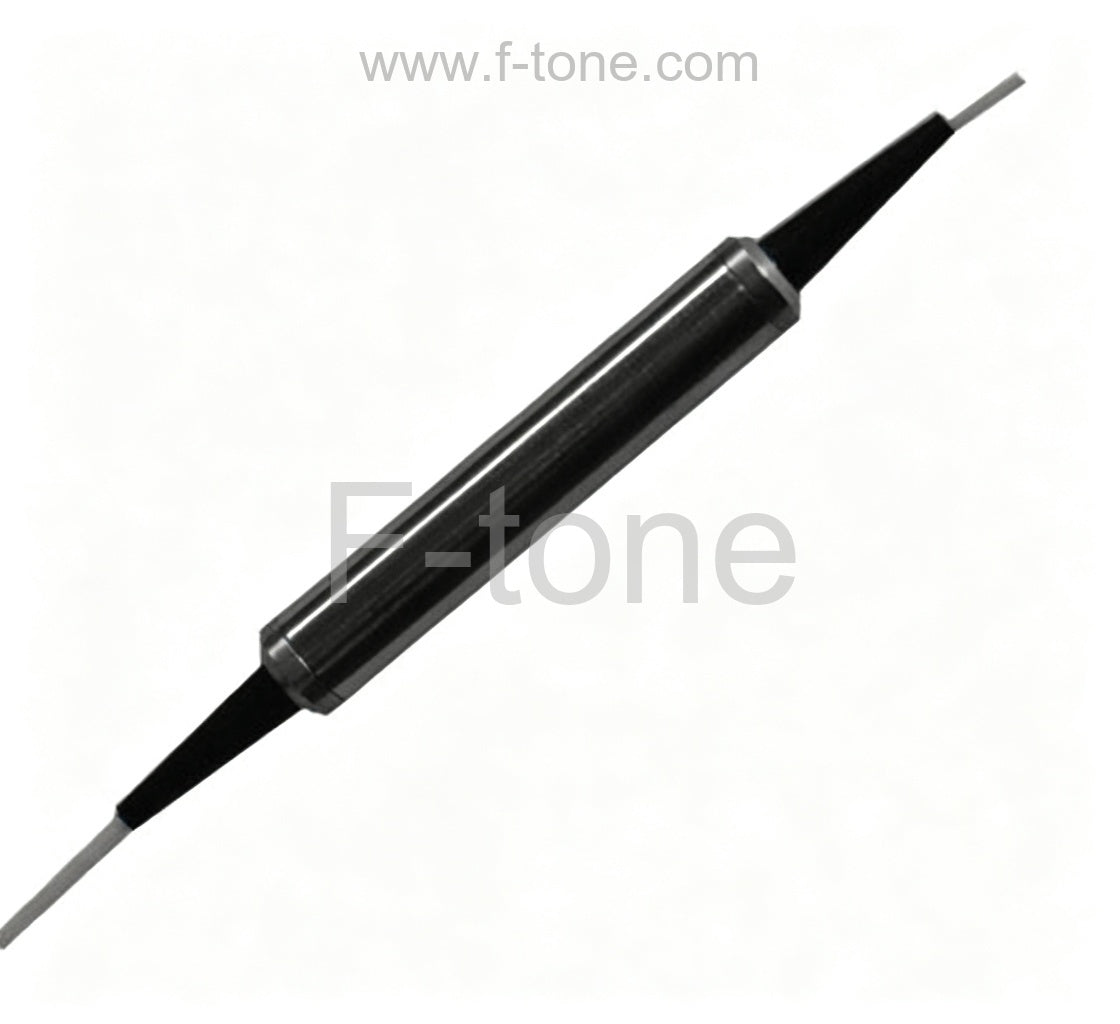

FWDM Filter WDM FTTH/FTTx Pass 1490nm Reflect 1310nm & 1550nm

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
F-tone.Com provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

Item Details

  • Pass(Transmission)Channel: 1490nm
  • Reflection Channel: 1310nm and 1550nm
  • High Isolation, Reliability and channel isolation
  • Low Insertion loss and excellent environmental reliability
  • RoHS Compliant

Package Type

Steel Tube package for 250um bare fiber and 900um fiber
ABS box for 900um, 2.0mm and 3.0mm fiber
Note: 250um bare fiber is too finne to be equiped with connector

Mechanical Drawing

Picture A is for T13/R15, T14/R1315, T1415/R13 FTTX Filter WDM
Picture B is for T15/R13, T13/R1415, T15/R1314, T1314/R15 FTTX Filter WDM

Application

Ordering Information

Item Wavelength Fiber Type Package Type Connector Fiber Length
FTTX Filter WDM Code TX:Transmission wavelength range(nm) 250μm

900μm

2mm

3mm		 steel tube

ABS box

LGX Cassette

1U Rack Mount		 None

FC/APC

FC/UPC

SC/APC

SC/UPC

ST/UPC

LC/UPC

LC/APC

Other		 1m
2m
RX:Reflection wavelength range(nm)
T31/R55 TX:1310nm
RX:1550nm
T55/R31 TX:1550nm
RX:1310nm
T31/R4955 TX:1310nm
RX:1490&1550nm
T49/R3155 TX:1490nm
RX:1310&1550nm
T55/R3149 TX:1550nm
RX:1310&1490nm
T4955/R31 TX:1490&1550nm
RX:1310nm
T3149/R55 TX:1310&1490nm
RX:1550nm





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
