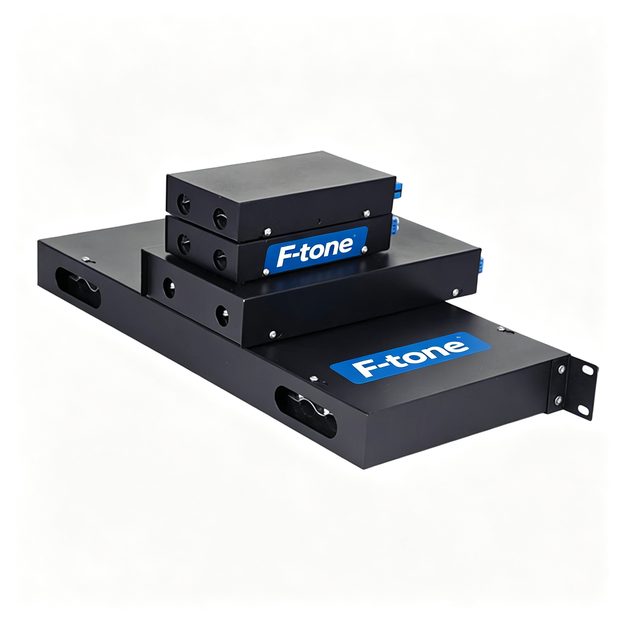

24 Fibers ODF 19'' Rack Mount Distribution Box FT-ODF-C-24

24 Fibers ODF 19'' Rack Mount Distribution Box FT-ODF-C-24

Afficher tous les détails

Part Number: FT-ODF-C-24

24 Fibers ODF 19'' Rack Mount Distribution Box FT-ODF-C-24

Description

F-tone 19'' ODF rack mount can be installed on standard 19'' racks and currently being widely used in optical fiber distribution frames. Customer's special requirements are welcomed.

Functions

  • Optical cable fixation and protection
  • Optical cable termination
  • Patching
  • Protection of optical fiber and pigtail

Key Features

  • For standard 19'' racks use (other rack width options available on request)
  • Fully stable patch panel, no risk of movement
  • Protected patch panel offers secure environment for adapters, patch cords and pigtails
  • Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance
  • Easy for installation of inlay, convenient to expand capacity, obliquity of adapter is 30°
  • Height: depends on capacity, one Integrated Splice & Distribution unit which has the capacity of 12 core within 1U height
  • ROHS compliant

Kind Reminder

The price is for 24 cores ODF does not come with adapters and pigtails, if you need adapters or pigtails, please contact us at [email protected] . Thank you!

Specifications

  • Dimension (mm): 480*235*2U
  • Capacity: 24 fibers
  • Fusion Tray: 12C X 2
  • Relative humidity: ≤ 85% (30°)
  • Air pressure: 70KPa~106Kpa
  • Working temperature: -10℃~+60℃
  • Storage temperature: -25℃~+85℃

Picture Details

Our Products

Our Products 12 Fibers 24 Fibers 36 Fibers
48 Fibers 72 Fibers 96 Fibers
Our products are available for SC/LC/FC/ST adapter


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
