Part Number: FT-PICIR-3-CL-X

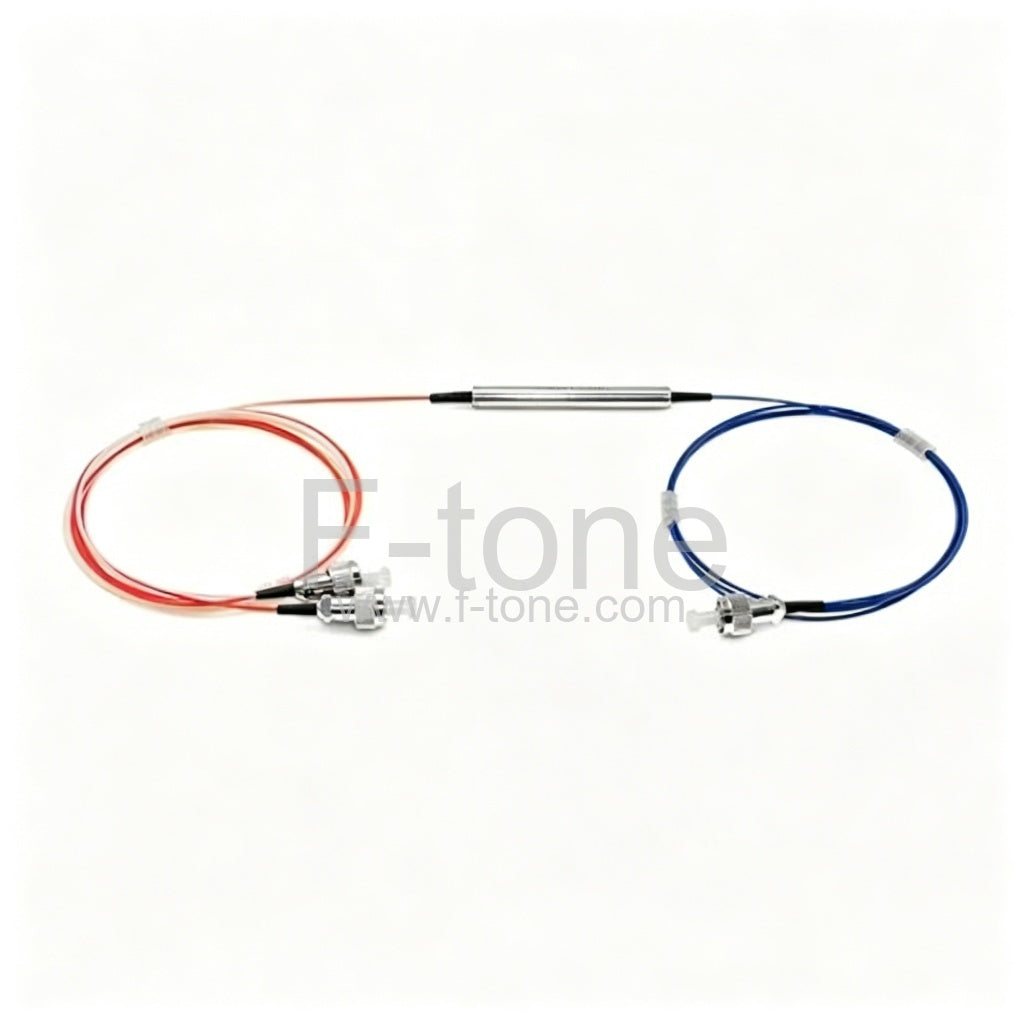

Optical Circulator 3 Ports C+L (1520~1620nm) Polarization Insensitive C Band L Band Fiber Optical Circulator 1M Pigtailed

F-tone’s Three-port Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. C band Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.


L Band Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
All F-tone's products are qualification tested.

Characteristics

  • Low Back Reflection
  • High Extinction Ratio
  • Low Insertion Loss
  • High Return Loss

Applications

  • DWDM system
  • Add-Drop Multiplexing
  • Fiber Amplifier
  • Fiber Sensor
  • Chromatic Dispersion Compensation Devices
  • Fiber Bragg Grating

Application Diagram

As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.

Dimension


Sample Picture

Order Information

wavelength Type Grade Pigtail Type Length Connector
1310nm
1480nm
1550nm
1585nm
1520~1620nm		 3 Ports
4 Ports		 P Grade 250um bare fiber
900um loose tube
3mm loose tube
2mm loose tube		 0.5m
0.8m
1.0m
1.5m
2.0m
Custom		 None
FC UPC/APC
SC UPC/APC
LC UPC/APC
ST UPC/APC
E2000 UPC/APC
MU

Note:
1. Wavelength: F-tone can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, F-tone could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.

Specifications:

Type

Parameter		 3 Port 4 Port
Operating wavelength (nm) 1310, 1480,1550,1585,(+/-30) C+L(1520~1620) 1310,1480,1550,1585,(+/-30) C+L (1520~1620)
Isolation (λc,23℃ all sop) (dB) ≥40 ≥40 ≥40 ≥40
Isolation (Over all λ, T, sop) (dB) ≥35 ≥30 ≥35 ≥30
Insertion Loss (λc,0~70℃ all sop) (dB) Grade P ≤0.8 ≤1.1 ≤0.8 ≤1.2
Grade A ≤1.0 ≤1.2 ≤1.0 ≤1.3
PDL (dB) ≤0.15 ≤0.20
Return loss (dB) ≥50
PMD (ps) ≤0.1
Directivity ≥50
Power handling (mW) ≤300
Fiber Type SMF-28e
Operating temperature (℃) 0 ~ +70
Storage temperature (℃) -40 ~ +85
Package Dimensions (mm) For bare fiber of 900um loose tube φ5.5×L50(P2) φ5.5×L68(P5) φ5.5×L64(P8)
For 3mm cable L98XW14.5XH8.5(P6) L90XW20XH9.5(P9) L80xW12xH10(P7)

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
