3 Ports S+C+L (1460-1625)nm Polarization Insensitive Optical Circulator

Part Number: FT-PICIR-3-SCL-X

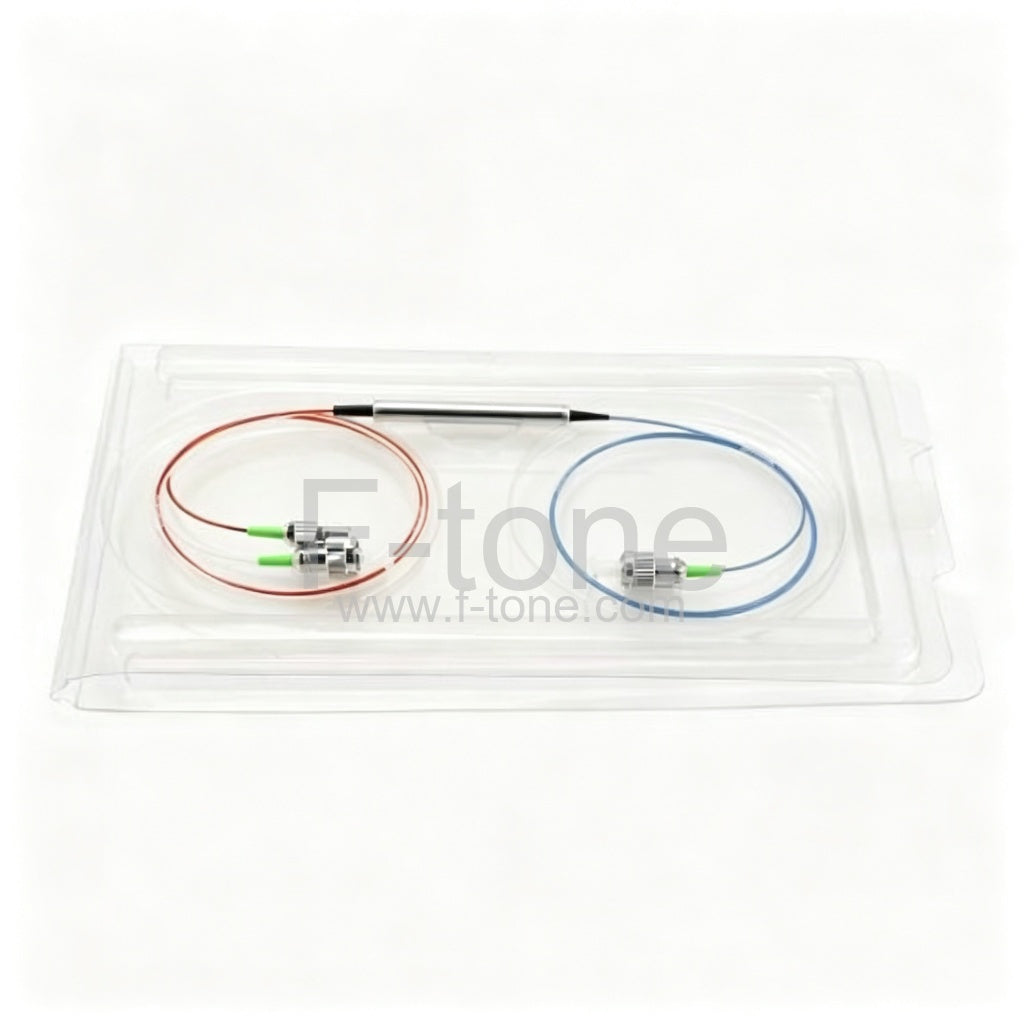

Optical Circulator 3 Ports S+C+L (1460-1625)nm Polarization Insensitive with custom connectorized

F-tone's Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
All F-tone's products are qualification tested.

Features & Applications

Application Diagram

Optical Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.

Circulator can be used to send optical signals through a single fiber in two directions.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.

Dimension

Sample Picture

Order Information

Note

1. Wavelength: F-tone can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, F-tone could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc.
Please contact us by email to [email protected] or call at 205-282-9089 if you have any requirement for it.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
