1X2 1310nm Polarization Maintaining Optical Circulator

Part Number: FT-PMCIR-1310-3-X

1X2 1310nm Polarization Maintaining Optical Circulator

F-tone's Polarization-Maintaining (PM) Optic Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Available with a center wavelength of 1064, 1310 (O-Band), or 1550nm (C-Band), these circulators are designed to work with light that is launched into the slow axis.
Choose from versions with no connectors, FC/ST/SC/LC PC&APC connectors and so on.

Characteristics & Applications

Application Diagram

Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.

Circulator can be used to send optical signals through a single fiber in two directions.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.

Dimension

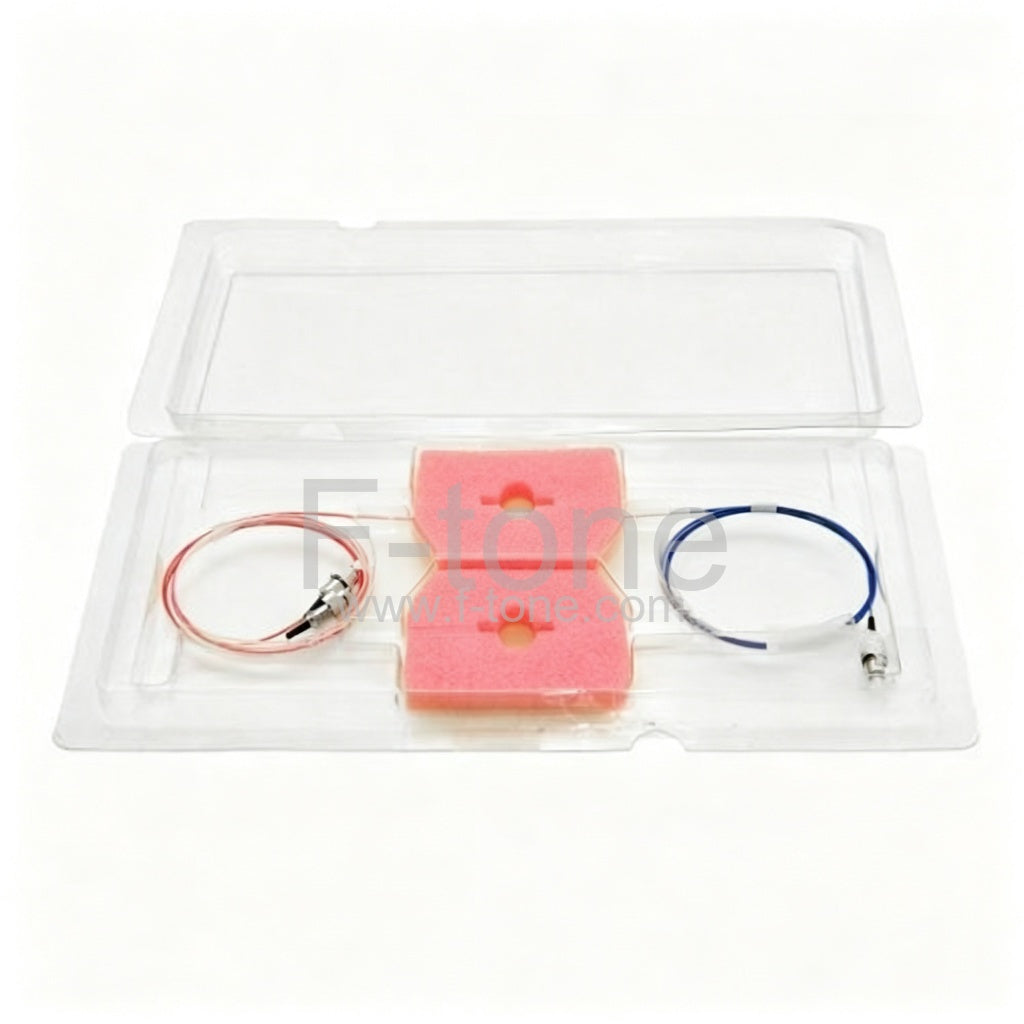

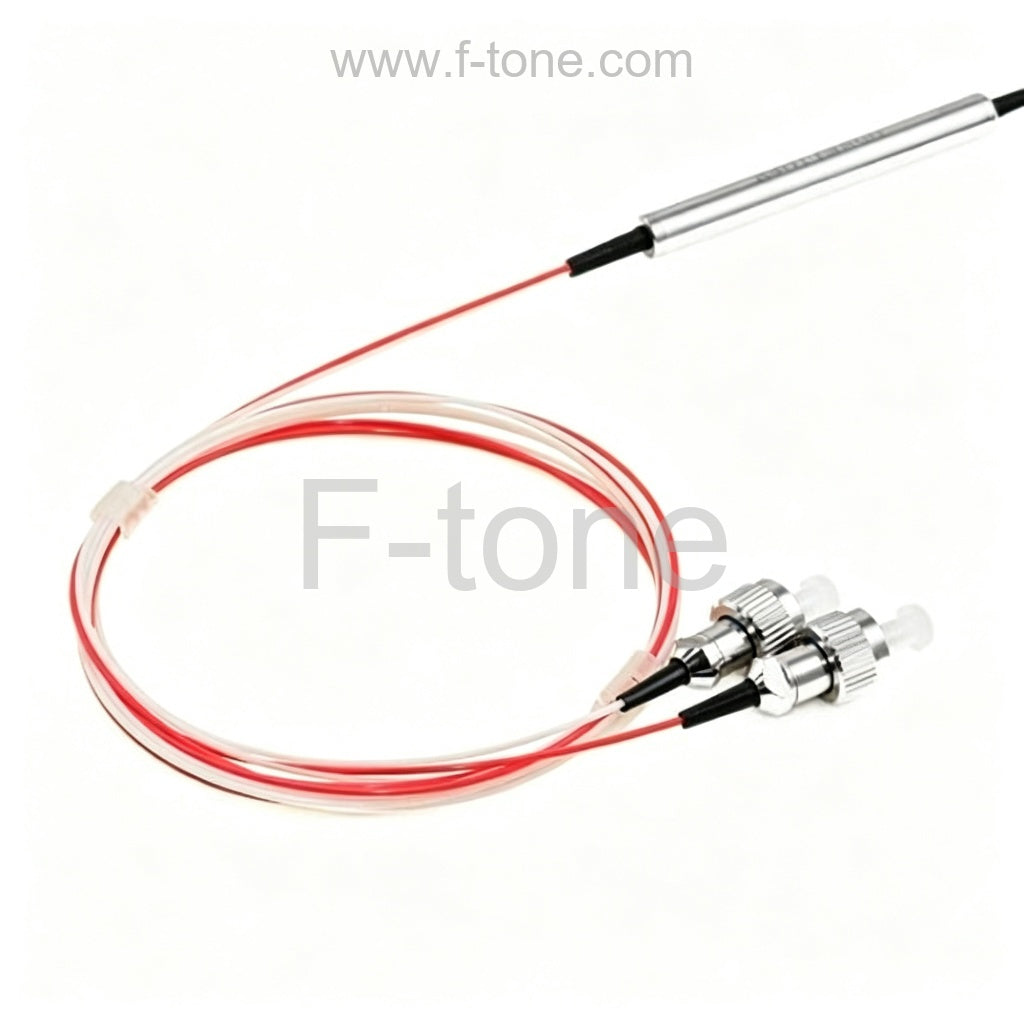

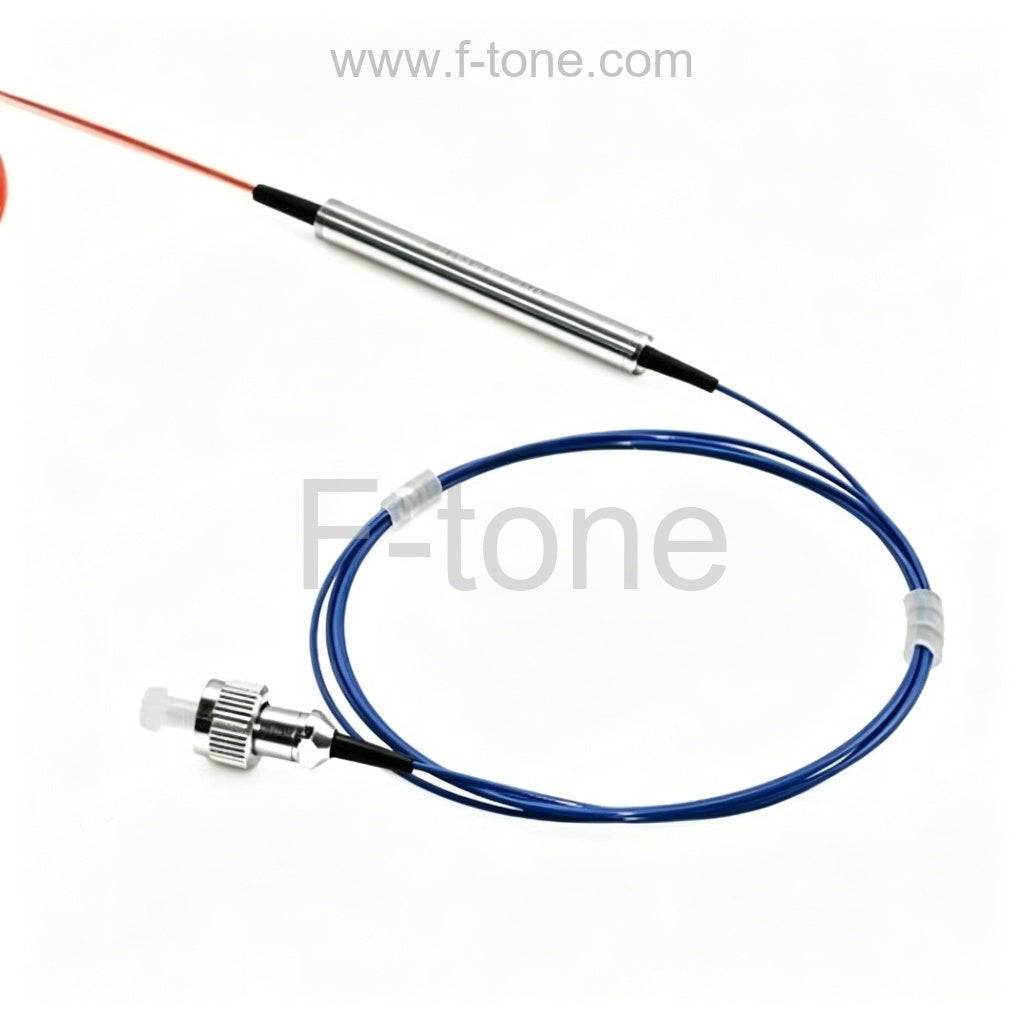

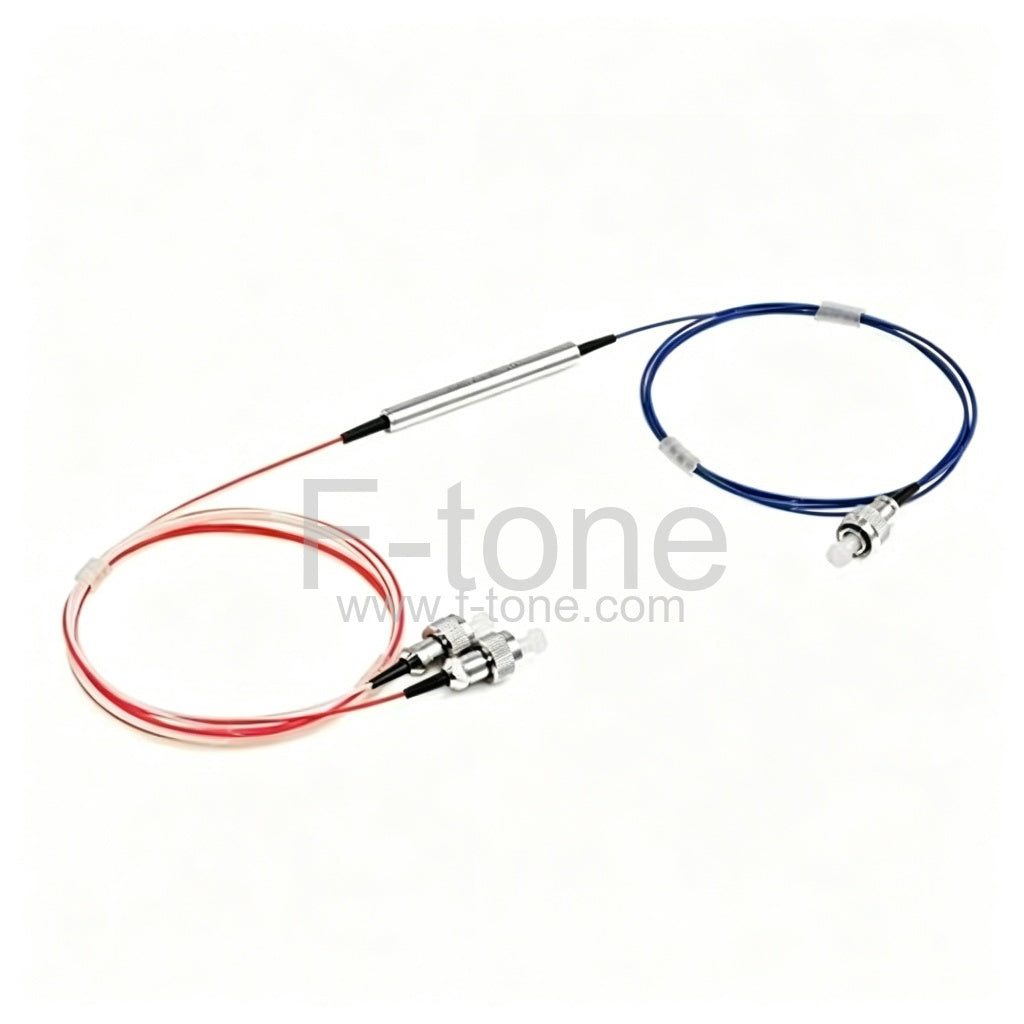

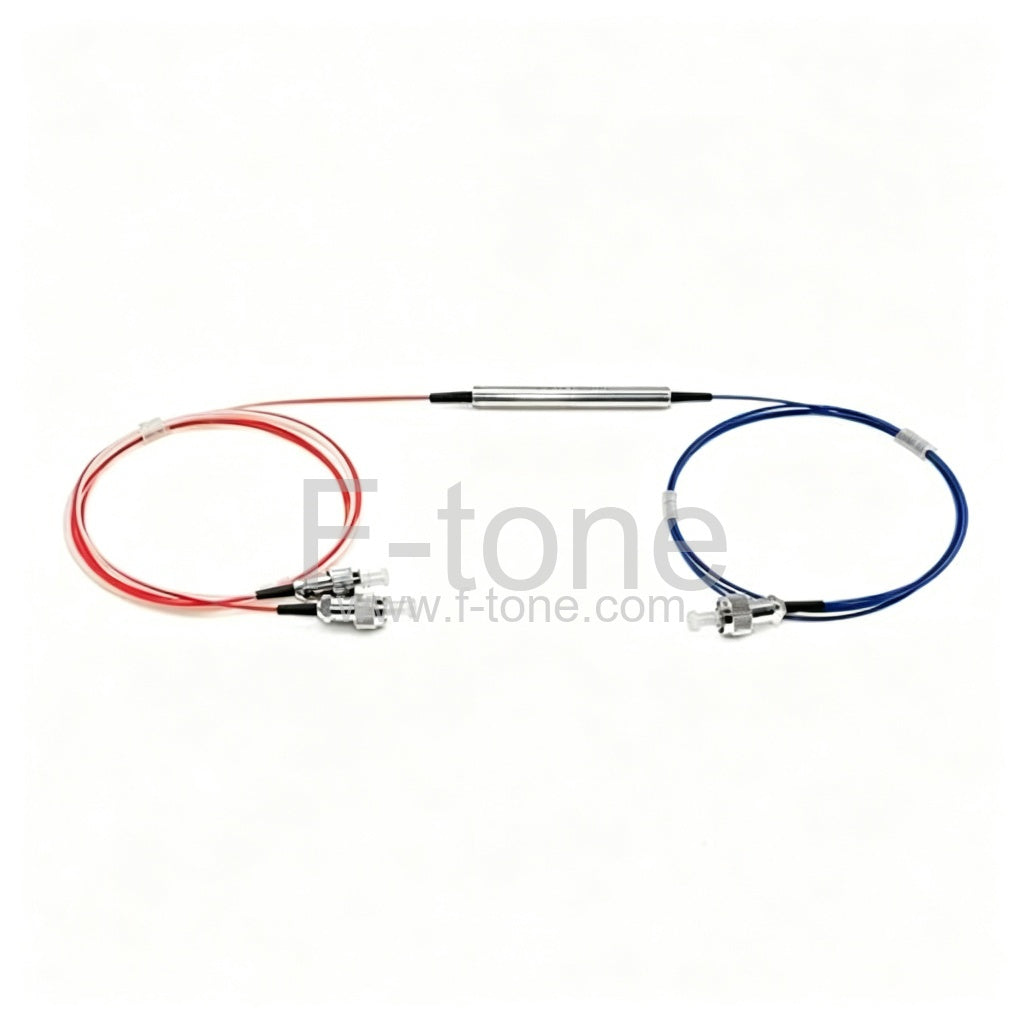

Sample Picture

Order Information

Note

1. Operating Wavelength: F-tone can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, F-tone could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc.
Please contact us by email to [email protected] or call at +1-86-2786-1199 if you have any requirement for it.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
