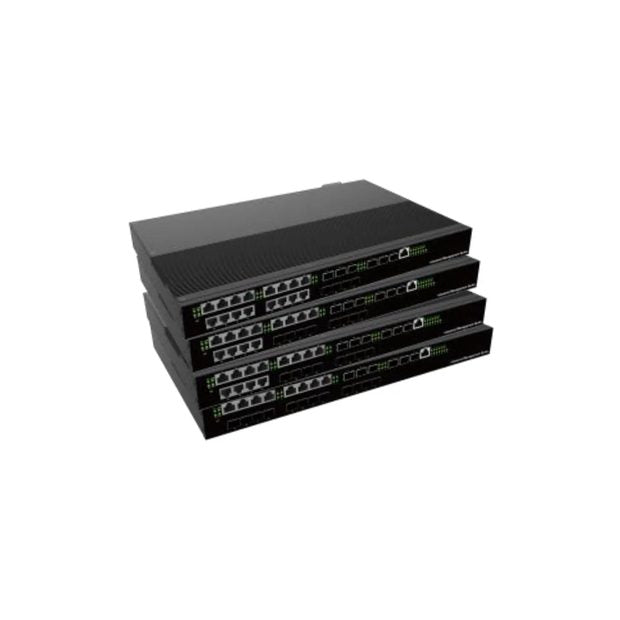

S3000 Series Full Managed Industrial Switch

S3000 Series Full Managed Industrial Switch

Afficher tous les détails

Part Number: FT-S3000-X-X

S3000 Series Layer2 Smart Managed Industrial Switch

The S3000 series are industrial-grade Layer 2/3 managed Ethernet switches designed for high performance, reliability, and easy deployment in demanding environments. Offering various configurations with multiple Gigabit and fiber optic ports, they support large-scale industrial network applications. With optional dual power inputs, a sealed fanless design, and strong resistance to temperature extremes, EMI, shock, and vibration, they ensure stable operation in harsh conditions. These switches are ideal for Industrial IoT (IIoT) and widely used in industrial automation, traffic systems, mining, oilfields, hydropower, power grids, and data centers—delivering efficient, reliable, and secure network infrastructure.

Product Highlights

● Support MDI/MDI-X auto-adaptation

● Support half-duplex, full-duplex, self-negotiation working mode

● Supports dual redundant AC100~240V or DC100~300V power supply

Feature & Specification

Attribute S3000-8TS18S-IR S3000-12T14S-IR S3000-16T10S-IR S3000-20T6S-IR
Port 8*10/100/1000M RJ45 port 18*10/100/1000M SFP port 12*10/100/1000M RJ45 port 14*10/100/1000M SFP port 16*10/100/1000M RJ45 port 10*10/100/1000M SFP port 20*10/100/1000M RJ45 port 6*10/100/1000M SFP port
Power Supply AC 100~240VAC，50/60Hz ; DC 100~300VDC (Note: Dual redundant power input is customizable and optional.)
Power ≤18W
Temperature Working Temperature: -40℃~75℃, 5%~95%, Non-condensing Storage Temperature: -40℃～85℃, 5%~95%, Non-condensing
Heat Dissipation Mode Natural, Fanless
Dimensions (L*W*H) 440*280*44mm
Structure and Materials IP40, all-metal housing
Weight ≤3KG
Installation Desktop type, Rack-mounted type
Standards FCC CFR47 Part 15, EN55022/CISPR22, Class A IEC61000-4-2(ESD) ±8kV (contact), ±15kV (air) IEC61000-4-3(RS) 10V/m (80MHz～1GHz) IEC61000-4-4(EFT) Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge) Power Port: ±6kV/DM, ±6kV/CM; Data Port: ±4kV IEC61000-4-6(CS) 10V (150kHz～80MHz) IEC 60068-2-27(Impact) IEC 60068-2-32(Free fall) IEC 60068-2-6(Vibration)
Software Feature
Spanning-tree Supports STP, RSTP, MSTP
Industrial Ring Network Fast convergence time (<20ms)
VLAN Supports 802.1Q, Access, Trunk, Hybrid
QoS Prioritizes traffic with 3 scheduling methods: SP, WRR, WFQ
Port Aggregation Up to 8 groups, load balancing
Flow Control Supports lEEE802.3x flow control
Security Features 802.1x authentication, password protection
Management System management includes configuration backup, user control, and remote access via CLI, Telnet, Console, and Web GUI.

Product Features

Rich port and full gigabit for various application. IEEE 802.3 af/at. Single port max 30W PoE output.
Redundant power supply and Relay Alarm.

Alarm when power down/port-link down		 Support link redundancy and Industrial ERPS Ring connection
Fanless P40 and industrial production such as Surge,

ESD EFT, Vibration, etc		 Rich L3 management function


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
