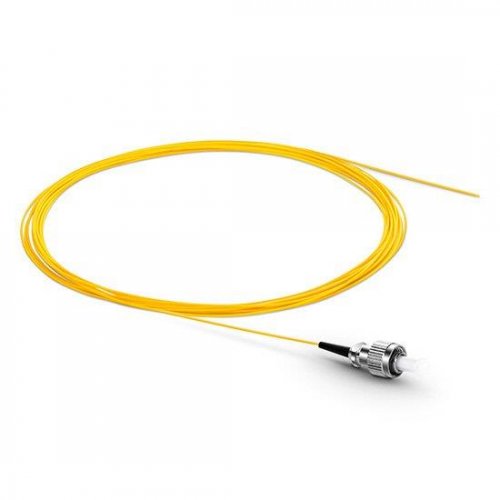

1.5M 12 Fibers FC/UPC 9/125 Singlemode Bunch Fiber Optic Pigtail 0.9mm PVC Jacket

1.5M 12 Fibers FC/UPC 9/125 Singlemode Bunch Fiber Optic Pigtail 0.9mm PVC Jacket

Afficher tous les détails

Part Number: FT12SM-FCU-BP-1.5M-PVC

1.5M 12 Fibers FC/UPC 9/125 Singlemode Bunch Fiber Optic Pigtail

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.

Connector A FC Connector B Unterminated
Fiber Category Single-mode (OS2) Jacket Color Yellow
Cable Diameter 0.9mm Jacket Material PVC
Total Length 1.5M Breakout Length 0.3M
Fiber Count 12 Polish UPC
Wavelength 1310nm and 1550nm Durability >1000 Times
Insertion loss 0.3dB Interchangeability 0.2dB
Return loss 50dB Vibration 0.2dB
Operating temperature -40~75C Storage temperature -45~85C

Key Features and Applications

Color coded fiber jacked, easy to manage for on-site operation Low insertion loss, Low back reflection loss Identifiable fibre buffer colours under all lighting conditions Reduces installation time Avoids incorrect patching by possible fiber flipping
Data Centres, premise installations Telecomunication networks Ethernet, fibre channel, ATM, LAN, MAN and WAN Data communication Indoor Applications

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

OEM Service

F-tone.COM supports customized service for the 12 packs colored pigtail, such as fiber type, fiber connector, pigtail length, packing, etc. Contact [email protected] to get a suitable colored pigtail.

Packaging & Labeling

This easy to take and well-protected fiber optical pigtail blister package or bag package have been labelled and marked by F-tone.COM as default.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
