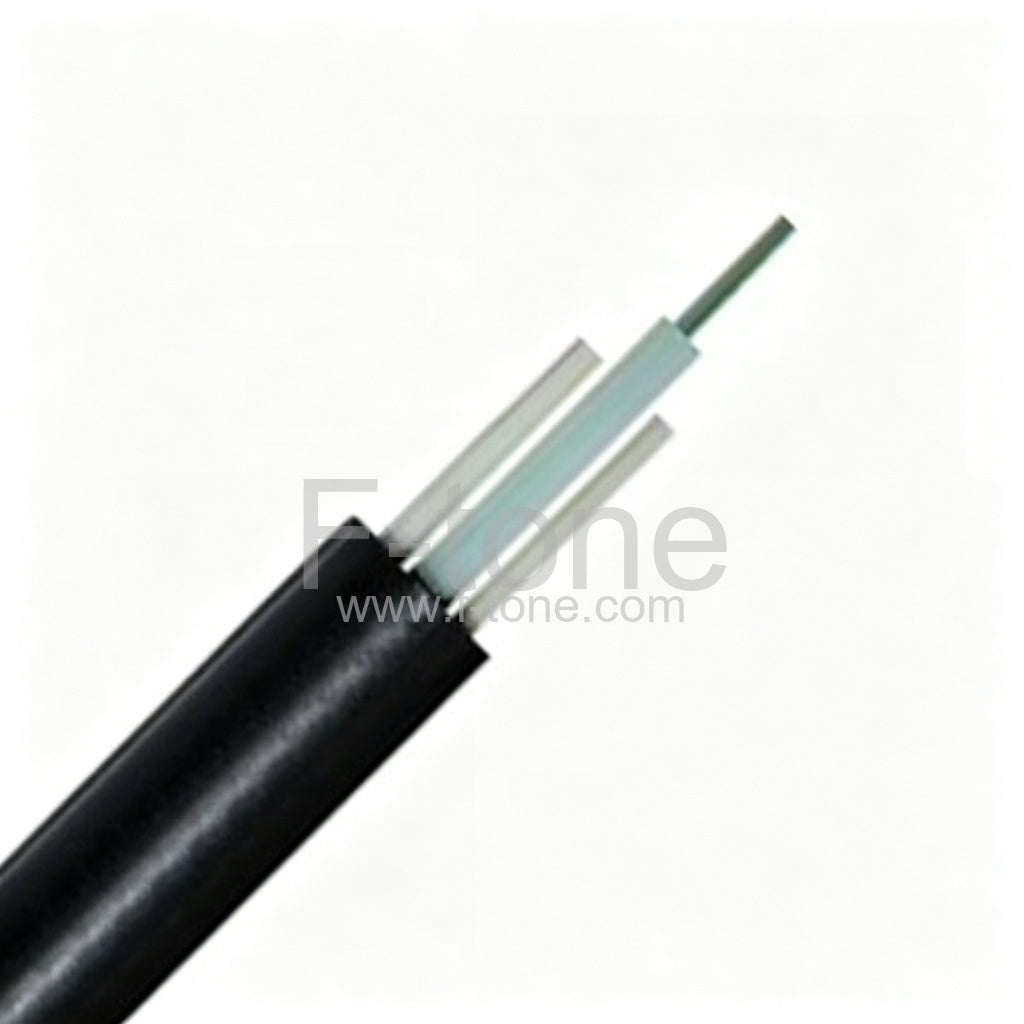

4 Fibers OM1 Multimode Non-metal Strength member Central Loose Tube LSZH FTTH Outdoor Cable

4 Fibers OM1 Multimode Non-metal Strength member Central Loose Tube LSZH FTTH Outdoor Cable

Afficher tous les détails

Part Number: FTCL-4A1bL

FTTH Outdoor Optical Cable, Central Loose Tube Construction, 4 OM1 Multimode Optical Fibers, Non-metallic Tensile Reinforcement, LSZH Low Smoke Zero Halogen Outer Jacket

FTTH Non-metal Central Loose Tube Outdoor Cable can be used in outdoor distribution, trunk power transmission system, and more importantly, it is suitable for access network and local network in high electromagnetic interfering places.

The loose tube filled with grease provides special protection for the fiber. The filling compound has the water resistant performance. The two parallel FRP strength member has an excellent anti-electromagnet ability and improve the tensile strength. The cable is completed with the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which has good flame retardant performance.

Item Details

  • Fiber Count: 4 Fibers

  • Fiber Type: 62.5/125μm Multimode

  • Outer Sheath: LSZH

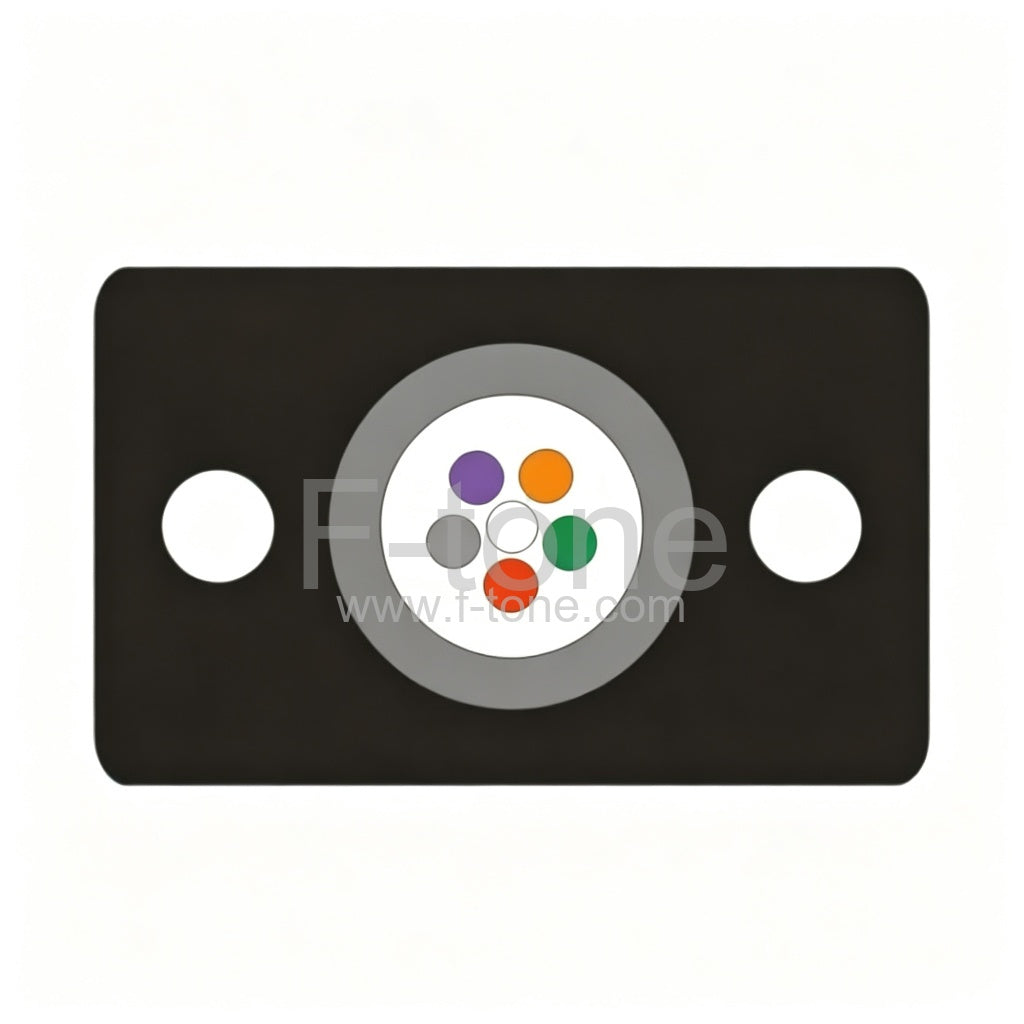

Cable Structure

Features
  • Non-metal strength member ensures excellent anti- electromagnetic performance.
  • Good fame retardant performance.
  • Low shrinkage and high tensile strength.
  • The loose-tube design isolates the fibers from outside environmental and mechanical stresses.
  • Low Smoke Zero Halogen Available.
Application
  • Trunk power transmission system
  • Access network and local network
  • High electromagnetic interfering places
  • Outdoor distribution

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
2 4.0×7.0 55 1000 300 1000 300 20D 10D -40~+60
4 4.0×7.0 55 1000 300 1000 300 20D 10D -40~+60
6 4.0×7.0 55 1000 300 1000 300 20D 10D -40~+60
8 4.0×7.0 55 1000 300 1000 300 20D 10D -40~+60
12 4.0×7.0 55 1000 300 1000 300 20D 10D -40~+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
