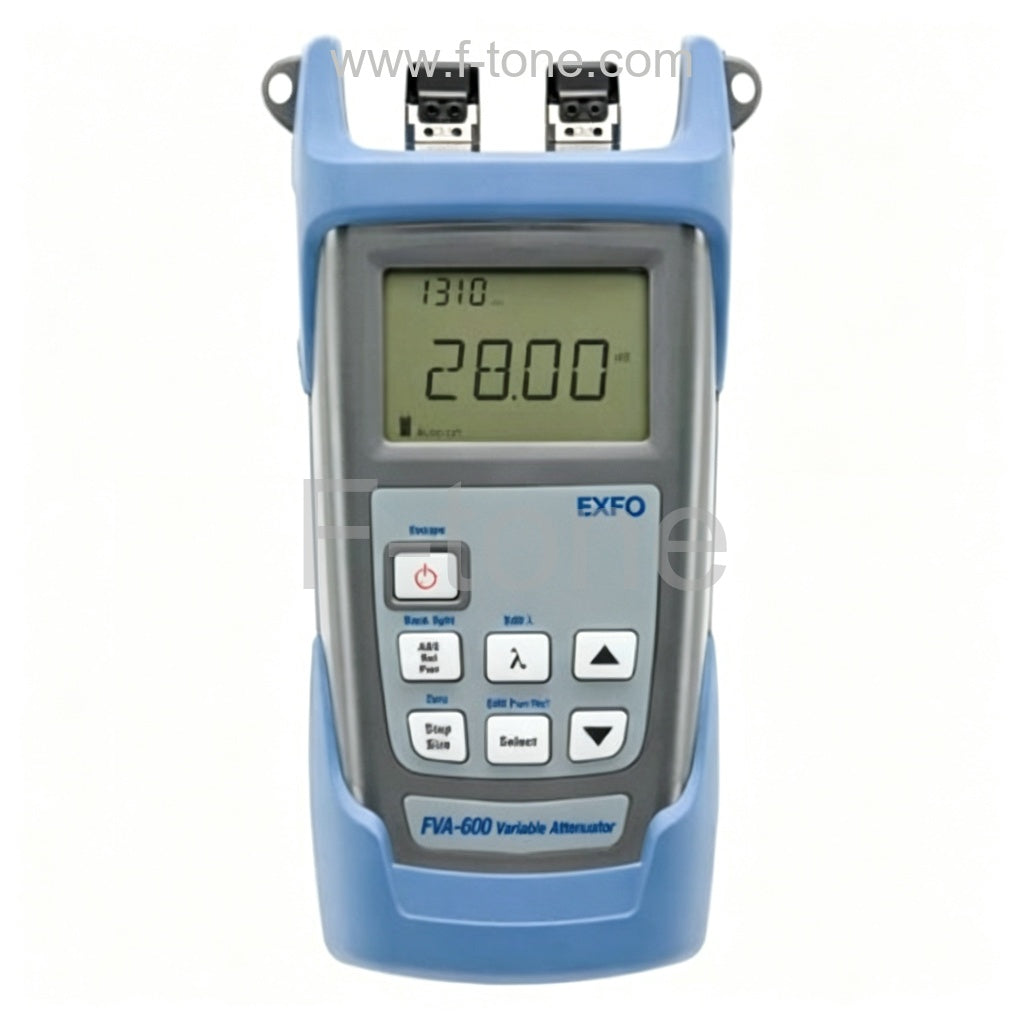

EXFO FVA-600-B fiber optic Variable Attenuator

EXFO FVA-600-B fiber optic Variable Attenuator

Afficher tous les détails

Part Number: FVA-60B

EXFO FVA-600-B fiber optic Variable Attenuator

Key Features

  • Most compact and rugged portable attenuator on the market
  • Low cost of ownership: three-year warranty and recommended calibration interval
  • Three operating modes: Absolute, Relative and Power
  • Backlit display, optimized for dim environments
  • USB-based remote control capability, for easy test routine integration
  • Rechargeable Li-ion battery

Applications

  • Handles high power up to 24 dBm, suiting any application, including CATV and telco
  • BER testing-ready: high optical resolution of 0.01 dB
  • FTTx-ready: standard 1310, 1490, 1550 and 1625 nm wavelengths

Specifications

Fiber type (µm) 9/125
Calibration wavelengths (nm) 1310/1550
Wavelength range (nm) 1250 to 1625
Wavelength increment (nm) 1
Maximum attenuation (dB) 65
IL (dB) b, c, d ≤1.5
Resolution (dB) 0.01
Linearity (dB)b, c, e ±0.1
Repeatability 2σ (dB) c ±0.1
Optical return loss (dB) f, h, i >50
Max. input power (dBm) g 24
Battery life (hours) e >300
Warranty and recommended calibration interval (years) 3

Standard Accessories

  • User guide
  • Quick reference sticker in five languages
  • AC adapter/charger
  • Connector adapter (EUI-XX)
  • Lithium ion battery
  • Shoulder strap
  • Semi-rigid carrying case
  • USB cable
  • Instruction manual on CD



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
