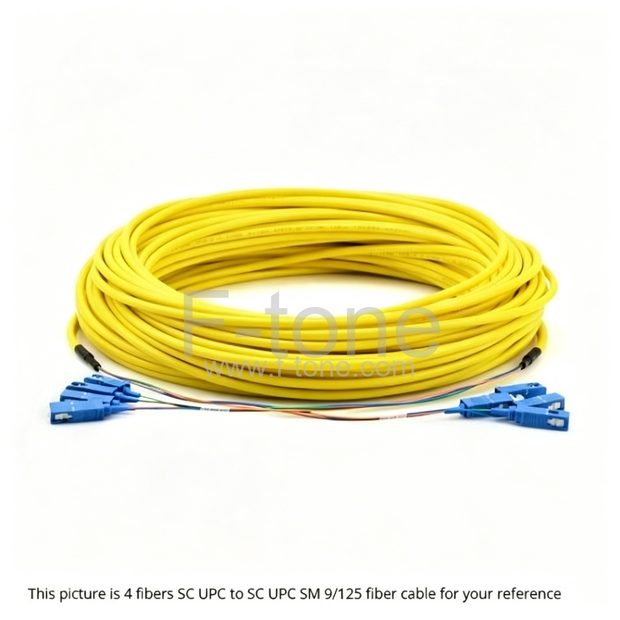

4 Fibers 9/125μm Single-mode Multi-Core Indoor Ribbon Flat Fiber Optic Cable-GJFDBV

4 Fibers 9/125μm Single-mode Multi-Core Indoor Ribbon Flat Fiber Optic Cable-GJFDBV

Afficher tous les détails

Part Number: GJFDBV-4B1.1

GJFDBV Indoor Flat Ribbon Optical Cable, Multi-Core Design, 4-Core 9/125μm Single-Mode Fibers

This kind of cable is suitable for Indoor cabling and access network use.

Cable structure is single-mode or multimode optical fiber placed in the middle of the two non-metallic reinforcement layer of flame-retardant polyethylene extruded after ethylene sheath (LSZH).The cable structure is compact and has excellent high temperature performance, with superior tensile strength, fiber reinforcements with excellent bending properties, with Low Smoke Zero Halogen sheath material with excellent flame retardance.

Item Details

  • Fiber Count: 4 Fibers

  • Fiber Type: Single-mode G.652D

  • Outer Jacket: LSZH

Cable Structure



Features
  • Good mechanical and environmental performance.
  • Soft, flexible, and continue to facilitate.
  • Support large-capacity data transmission, 4-12 Fibers are available.
  • LSZH Jacket keep the cable a good performance of fire-resistant.
  • Aramid yarn ensure the cable a superior performance of tensile strength.
Application
  • FTTH network
  • Interconnect cables
  • Indoor and outdoor point to point application
  • Direct connectorization
  • Internal wiring in cable trays

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Sheath Width Sheath Thickness Cable Weight Tensile Load Crush Load Bend Radius Storage
Temperature
（mm) （mm) (kg/km) S(N) L(N) S(N) L(N) S(mm) L(mm) （℃）
2 3.5 2.5 15.0 1500 600 1000 300 20D 10D -20°C~+60°C
4 3.5 2.5 15.0 1500 600 1000 300 20D 10D -20°C~+60°C
6 4.0 2.5 17.0 1500 600 1000 300 20D 10D -20°C~+60°C
8 4.5 2.2 17.0 1500 600 1000 300 20D 10D -20°C~+60°C
12 4.8 2.2 20.0 1500 600 1000 300 20D 10D -20°C~+60°C


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
