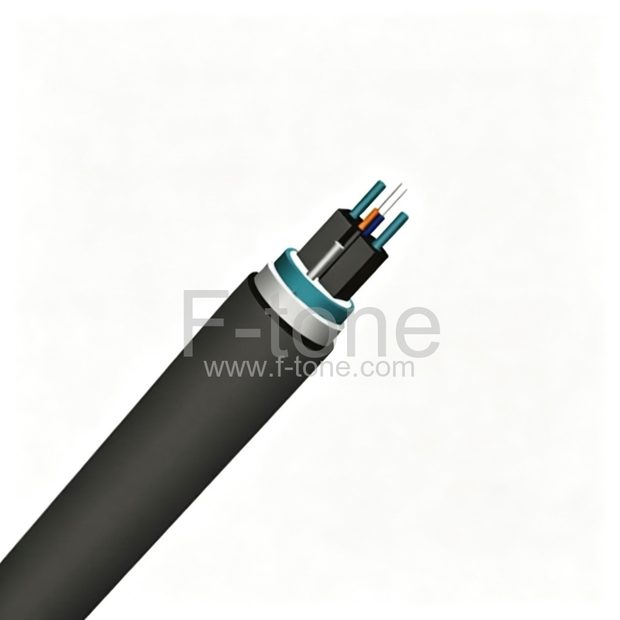

GJFDC Series Custom Buried Duct Optical Cable for FTTH Network

Single-armored FTTH Duct Cable - GJFDC

It is specially design for connecting user's equipment with outdoor feeder cable, particularly suitable for duct installation. The optical fiber unit is positioned in the center. Two parallel strength members are placed at two sides. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is completed with waterproof tape, AL-plastic tape and outer jacket.

The two parallel FRP/metal/K-FRP strength member improves the tensile strength. The cable is completed with PE sheath protects cable from ultraviolet radiation/the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which has good flame retardant performance. Water blocking tape & AL-plastic tape has good water proof ability.

Cable Structure

Features
  • Environmental protection- Low smoke, zero halogen and flame retardant sheath/PE sheath protects cable from ultraviolet radiation.
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Used in aerial and duct access cabling.
  • Soft and flexible, good bending performance.
  • Two strength members ensure good performance of crush resistance, tensile strength to protect the fiber.
  • AL-plastic tape makes the cable crush resistant and moisture proof.
  • The purpose of a water-proof tape is to help prevent the ingression of water into the cable.
Application
  • Used in aerial and duct access cabling
  • Installation in small bending environment
  • Suitable for the connection between indoor and outdoor

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Outside
Diameter		 Cable Weight Tensile Load
(N)		 Crush Load
（N/100mm)		 Bend Radius
(MM)		 Storage
Temperature
(mm) (kg/km) short term long term short term long term short term long term （℃）
1 7 52 60 30 1000 300 30 15 -20°C~+60°C
2 7 52 60 30 1000 300 30 15 -20°C~+60°C


G.657A 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
