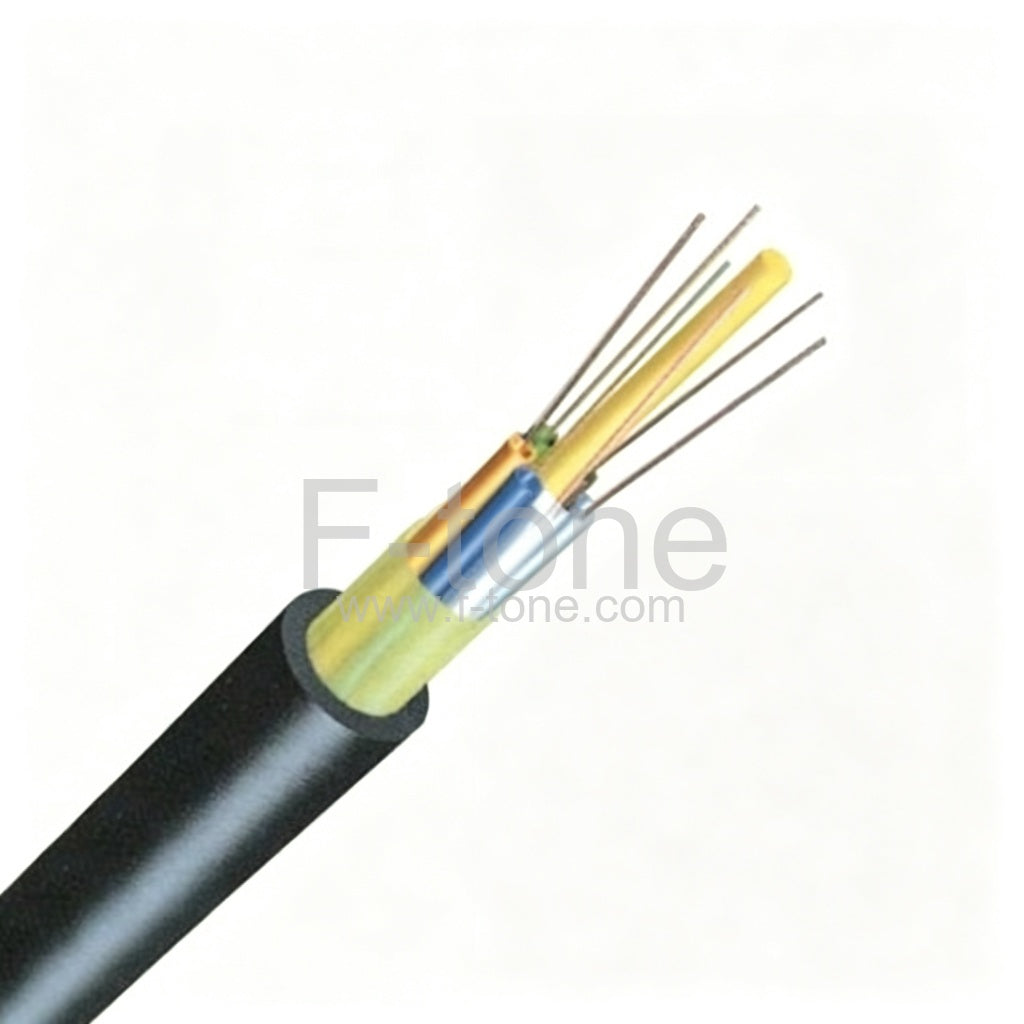

6 Fibers Single-mode Single Jacket Non-Metal Member Waterproof Dielectric Loose Tube Outdoor Cable - GYFTY

6 Fibers Single-mode Single Jacket Non-Metal Member Waterproof Dielectric Loose Tube Outdoor Cable - GYFTY

Afficher tous les détails

Part Number: GYFTY-6B1.1

GYFTY Waterproof Dielectric Loose Tube Non-Metal Strength Member Single Jacket Outdoor Optical Cable, 6 Fibers Single-mode

Non-Metal strength member is the dielectric structure, and the FRP(FIBER REINFORCED PLASTIC) has the light weight property. So it is suitable for operating in electrical system or frequently lighting areas. The cable is completed with a single polyethylene (PE) sheath, aerial and duct installation are acceptable.

The FRP as the central member enforce the tensile strength of the cable,and ensures the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between the out jacket and the loose tube is applied to keep the cable compact and watertight.

Item Details

  • Fiber Count : 6 Fibers

  • Fiber Type: Singlemode G.652B (Default)

  • Strength Member: Non-metal

  • Outer Sheath: PE (Default)

Cable Structure

Features
  • Light weight, small diameter, easy to lay.
  • Excellent mechanical and temperature performance.
  • Low dispersion and attenuation.
  • Special filling get filled loose tubes provide perfect optical fiber protection.
  • Non-metal central strength has a excellent anti-electromagnetic ability.
  • Water blocking system provide reliable performance of moisture-proof and water block.
  • The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.
Application
  • Laying modes: Aerial & Duct
  • Electromagnetic interfering places
  • Outdoor distribution
  • Access network and local network

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
2-24 9.5 95 1000 400 1000 300 20D 10D -40+60
26-46 10 105 1500 600 1000 300 20D 10D -40+60
48-72 10.5 120 1500 600 1000 300 20D 10D -40+60
74-96 12.5 165 1500 600 1000 300 20D 10D -40+60
98-120 14.5 185 2500 1000 1000 300 20D 10D -40+60
122-144 15.5 200 2500 1000 1000 300 20D 10D -40+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
