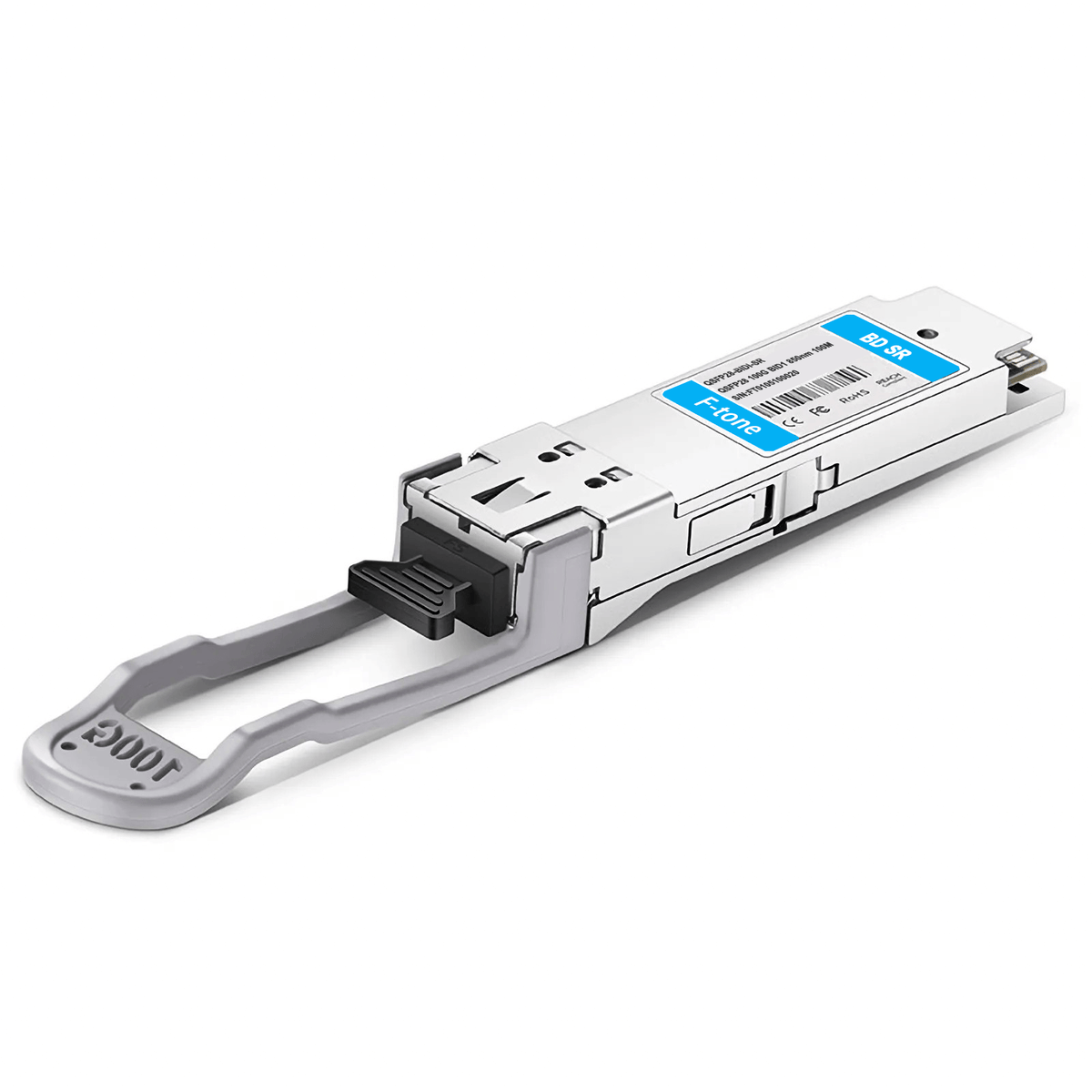

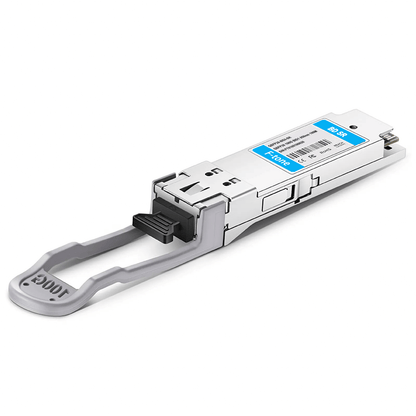

H3C QSFP-100G-BIDI-MM850 Compatible 100GBASE-SR SWDM4 QSFP28 Bi-Directional Optical Transceiver Module for Ethernet and Data Center (MMF, 850/880/910/940nm, 100m, LC, DOM)

The H3C QSFP-100G-BIDI-MM850 Compatible 100G SWDM4 Bi-Directional QSFP28 transceiver supports short-reach 100G connections over duplex LC multimode fiber. It delivers up to 75m on OM3, 100m on OM4, and 150m on OM5 using four wavelengths that carry 4×25G over existing duplex MMF infrastructure, enabling a seamless upgrade from 10G/40G to 100G. The module complies with QSFP28 MSA and IEEE 802.3bm CAUI-4 specifications, and provides digital diagnostics via the I2C interface for real-time monitoring.

Specifications
Parameter Value Parameter Value
H3C Compatible QSFP-100G-BIDI-MM850 Vendor Name F-tone
Form Factor QSFP28 Max. Data Rate 103.1Gbps
Wavelength 850/880/910/940nm Max. Cable Distance 75m@OM3/100m@OM4/150m@OM5
Connector Duplex LC/UPC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power 5.5~-3dBm Minimum Receiver Power -9.5dBm
Power Budget 4dB Receiver Overload 3.4dBm
Max. Power Consumption 3.5W Extinction Ratio >2dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 4x 25G-NRZ Modulation (Optical) 4x 25G-NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR Packaging Technology COB Packaging
Bit Error Ratio (BER) 5E-5 MTBF 11,100,000 Hours (@40°C, 60% CL)
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 Warranty 5 Years



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
